Johnson Controls Metasys FEC Series User Manual

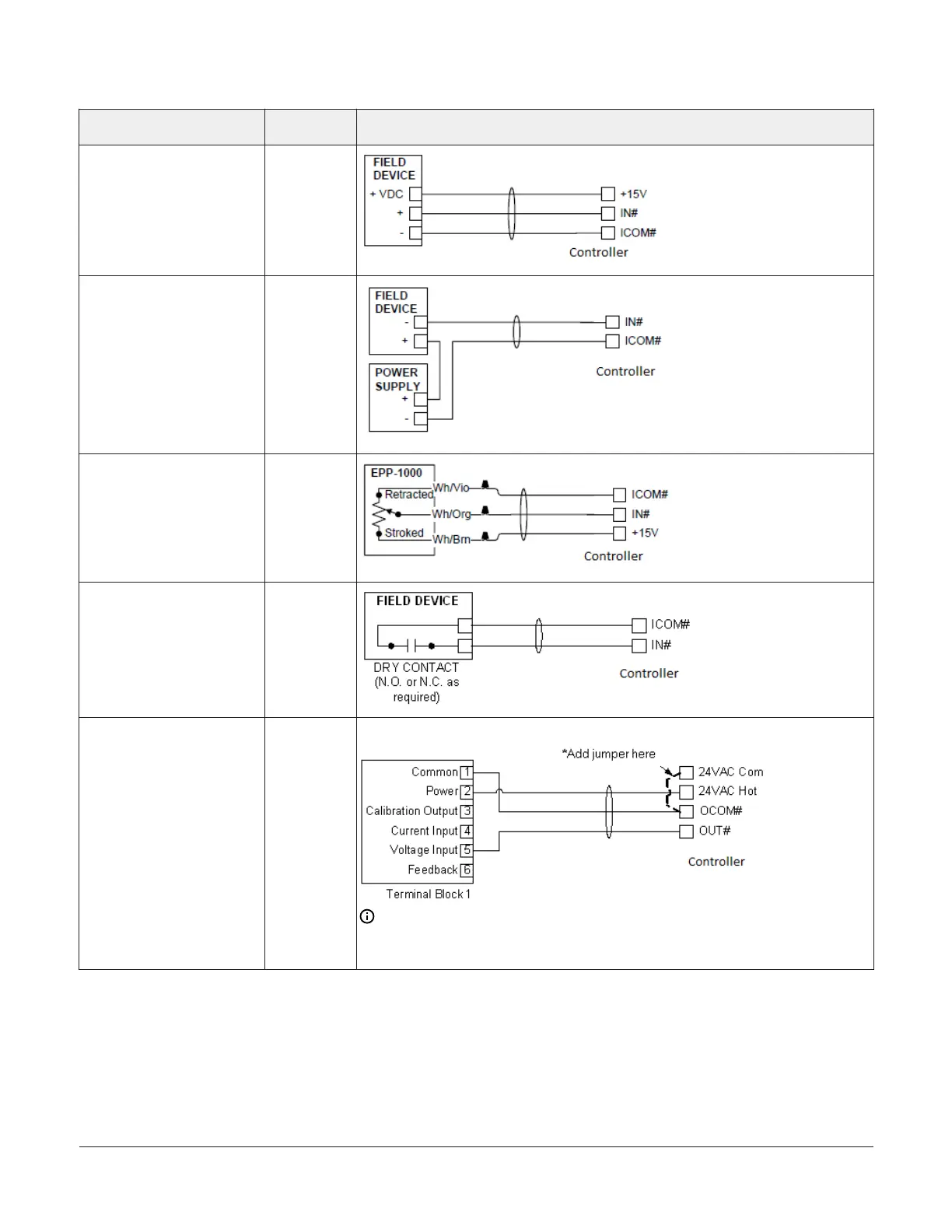

Table 5: Termination details
Type of Input/
Output
Termination diagrams
Current Input - Internal
Source (3 wire)
UI
Current Input - External
Source (in Loop)
UI
Feedback from EPP-1000 UI
Dry Contact (Binary Input) UI or BI
0-10 VDC Output to Actuator
(External Source)
CO or AO
Note: Add jumper from 24 VAC Com to only one CO Com (on FEC16xx) or only one
AO Com or CO com (on FEC26xx) per transformer.
Metasys System FEC1611 and FEC1621 Field Equipment Controller Installation Guide 11
