Johnson Controls Metasys FEC Series User Manual

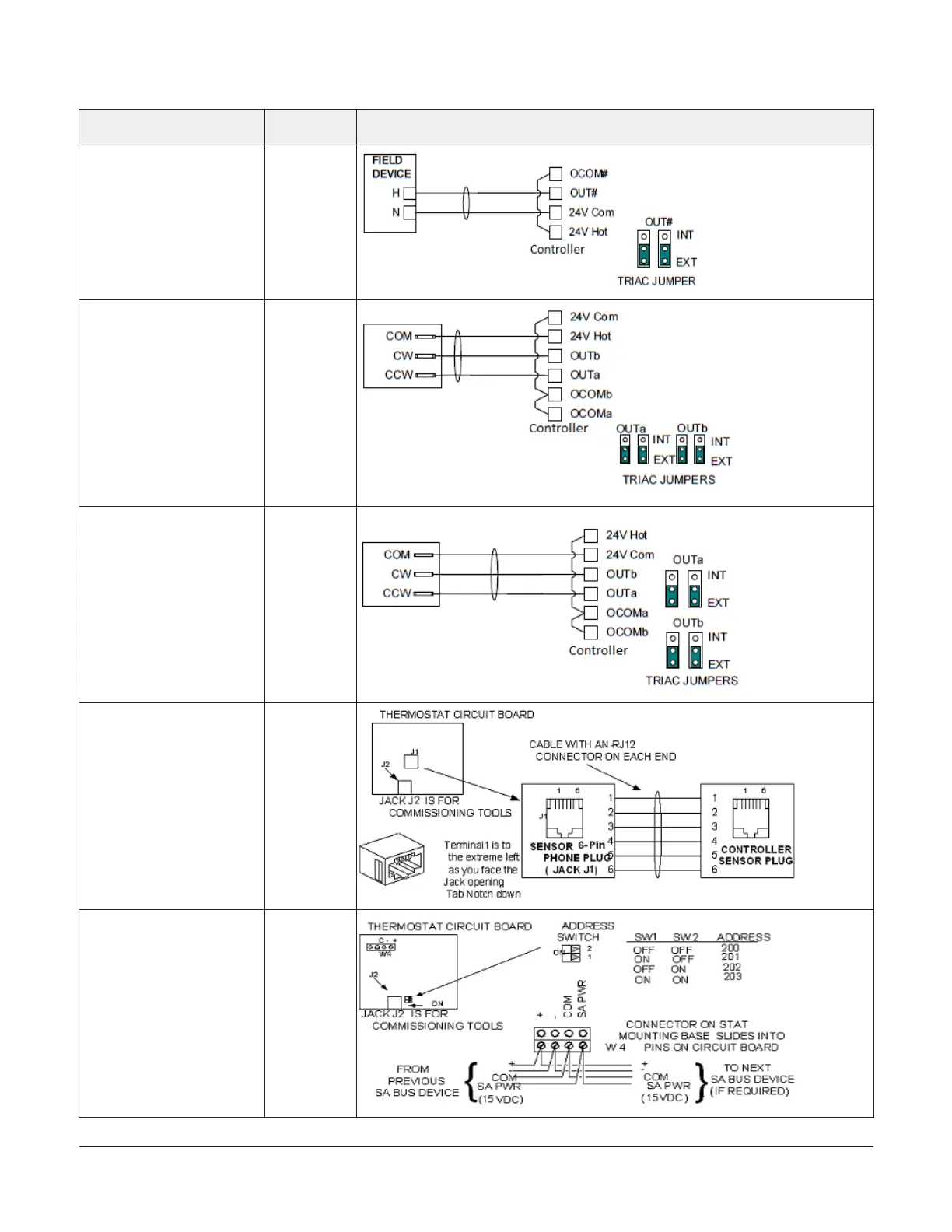

Table 5: Termination details
Type of Input/
Output
Termination diagrams
24 VAC Binary Output
(Switch High, Externally
Sourced)
BO
Incremental Control to
Actuator (Switch Low,
Externally Sourced)
BO
Incremental Control to
Actuator (Switch High,
Externally Sourced)
BO
Network Stat with Phone
Jack (Fixed Address = 199)
SA Bus
Network Stat with Terminals
Addressable
SA Bus
Metasys System FEC1611 and FEC1621 Field Equipment Controller Installation Guide 13
