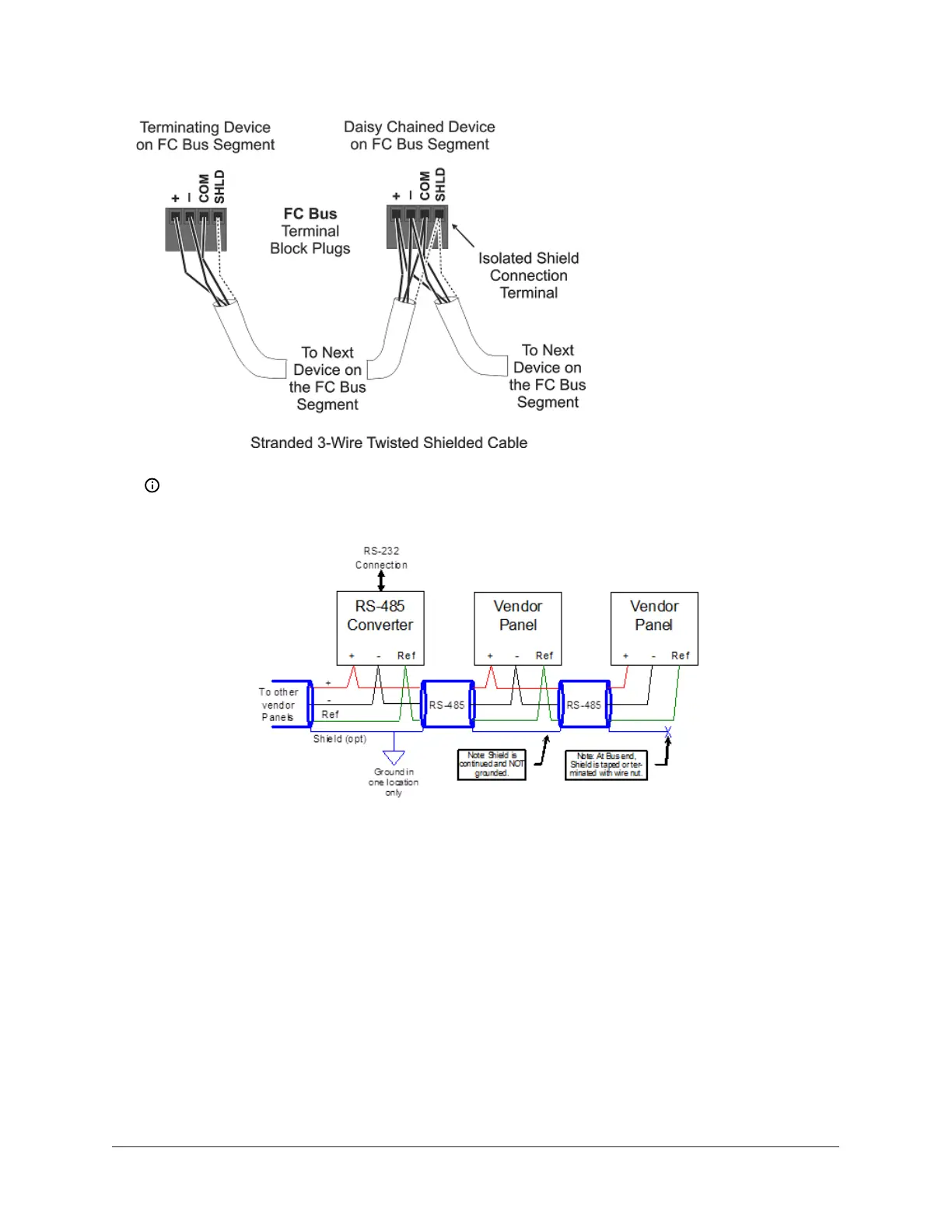

Figure 6: Daisy chained devices
Note:
The completed wiring should look similar to Figure 7.
Figure 7: Modbus wiring detail overview
5.
Connect the 24 V
AC supply power wir
es from the transformer to the r
emovable power terminal
block plug on the NAE (Figure 8).
NAE35/NAE45 Installation Guide
10
9
11
Table of Contents
