Johnson Controls S1-TTSCC01 Technical Guide

885616-UTG-A-0812
Johnson Controls Unitary Products 3

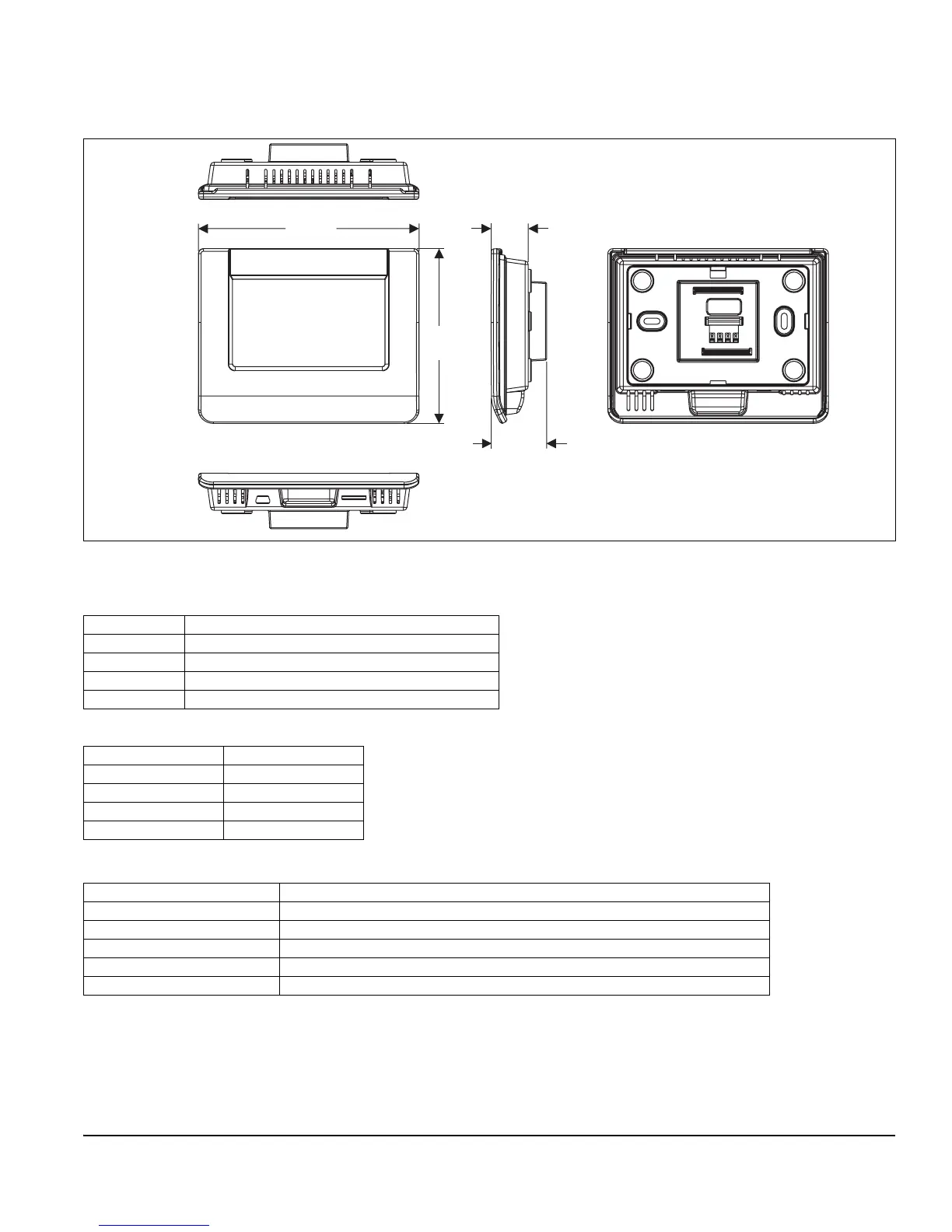

PRODUCT DIMENSIONS
Touch Screen Communicating Control Zoning Master & Sensor
EQUIPMENT
Equipment
PART NUMBER DESCRIPTION
S1-TTSCC01 Touch Screen Communicating Control Master & Sensor
S1-TCZCB01 Communicating Control Zone Panel
S1-TCZSD01 Communicating Control Zone Display
S1TCZSN01 Communicating Control Zone Sensor
Repair Parts
PART NUMBER DESCRIPTION
S1-02815904000 Face Plate (Rev A)
S1-02815904101 Face Plate (Rev B)
S1-02815905000 Rear Housing
S1-02815906000 Mounting Plate
5.50
.93
4.36
1.38
Optional Accessories
PART NUMBER DESCRIPTION
S1-02815909000 Hard Surface Mounting Plate and Decorative Backplate
S1-03102965000 USB Adapter
S1-02542694000 Wire Harness
S1-CVENTDEH01 ERV/HRV, Ventilation Control Damper and Whole Home Dehumidifier Auxiliary Board
S1-02543570000 6’ Service Wire Harness

Johnson Controls S1-TTSCC01 Specifications

General

Brand	Johnson Controls
Model	S1-TTSCC01
Category	Control Unit
Language	English
