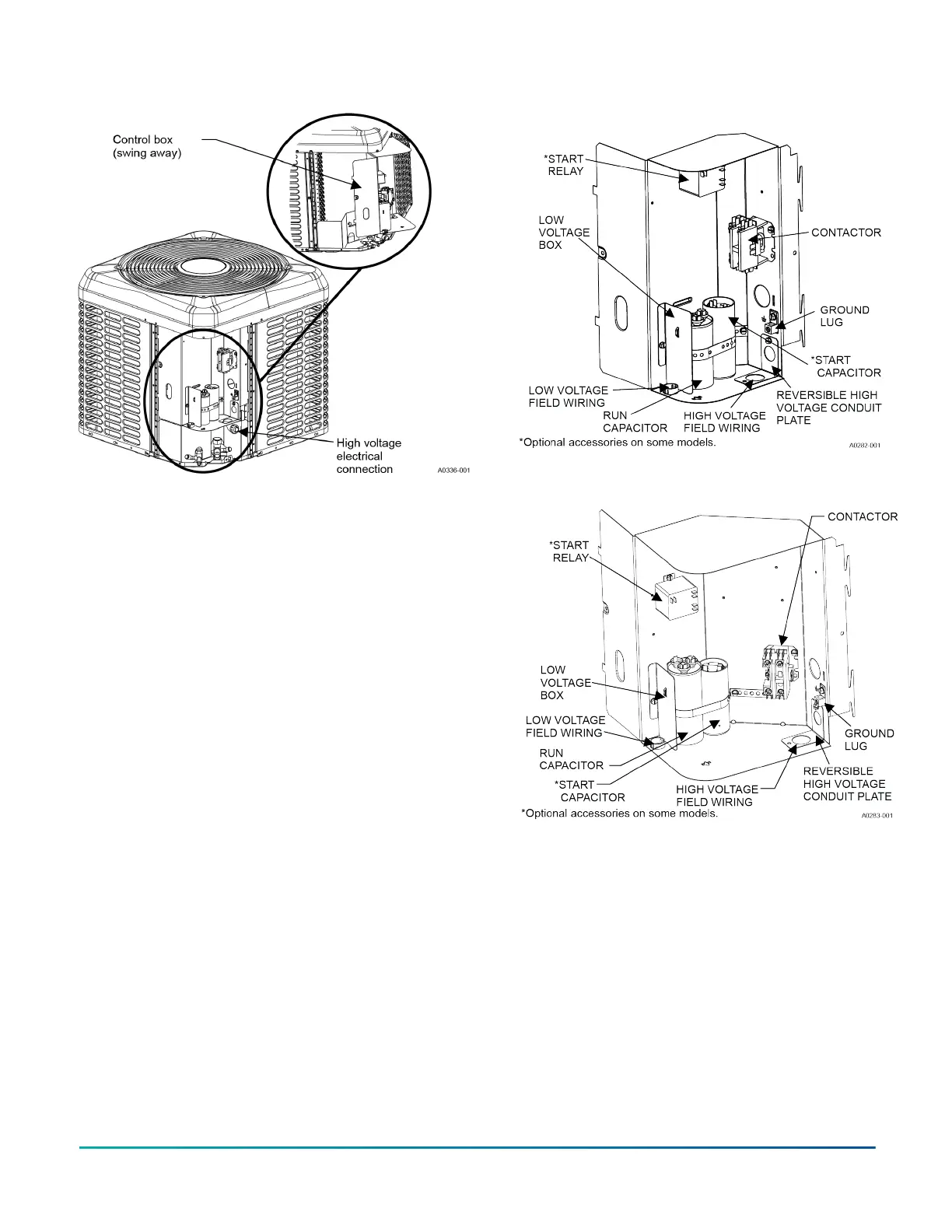

Figure 11: Outdoor unit swing away control box
Field connections power wiring
1. Install the correct size weatherproof disconnect
switch outdoors and within sight of the unit.
2. Remove the screws at the top and sides of the
corner cover. Slide the control box cover down and
remove from unit.
3. Run power wiring from the disconnect switch to the
unit.
4. Route wires from disconnect through power wiring
exit provided and into the unit control box as
shown in Figure 11, Figure 12, and Figure 13.
5. Install the correct size time-delay fuses or circuit
breaker, and make the power supply connections.
Figure 12: Outdoor unit control box (single-phase -
smaller base)
Figure 13: Outdoor unit control box (single-phase -
larger base)
Installation Manual: R-410A Outdoor Split-System Air Conditioner 17
