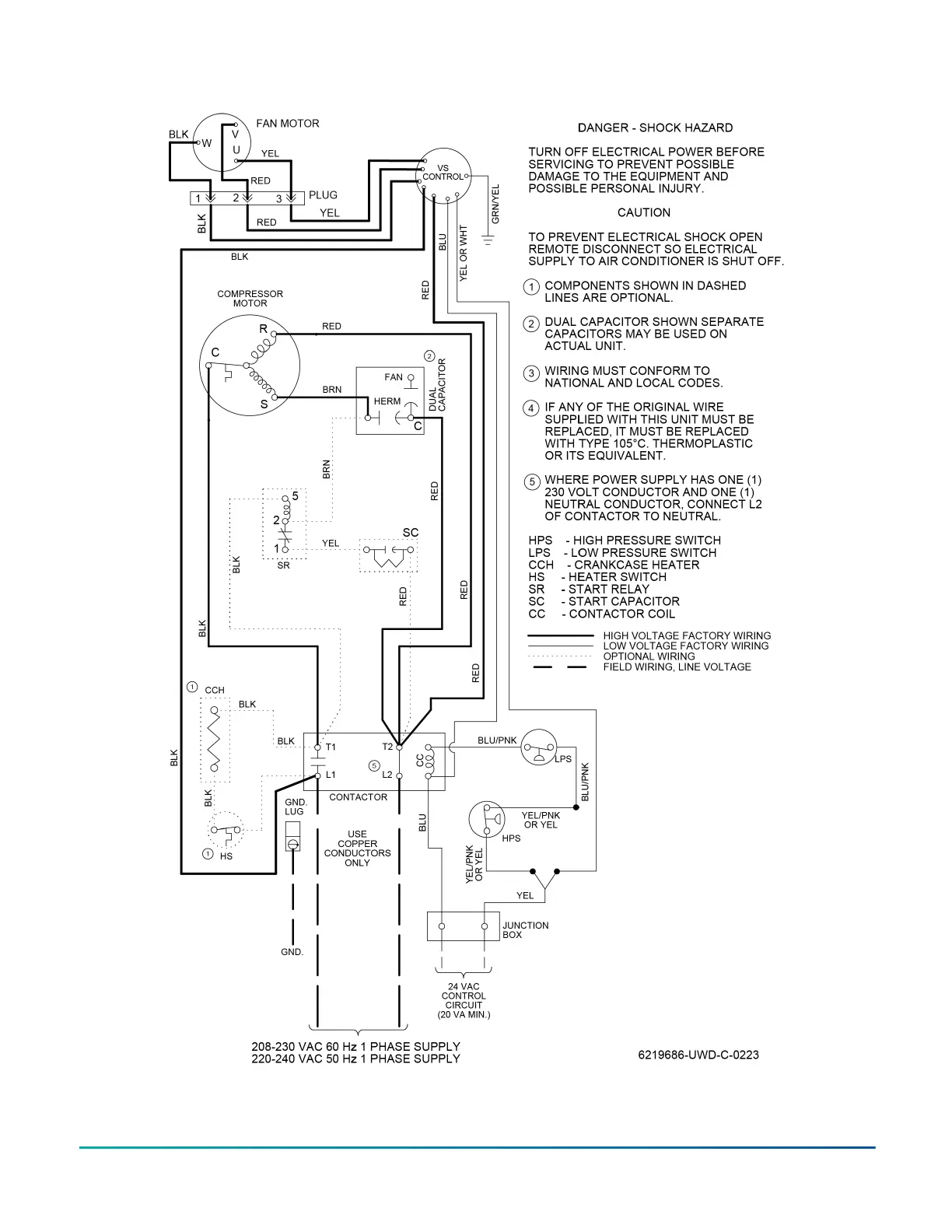

Figure 18: Wiring diagram - single-phase 15.2 SEER2 - single-stage

Installation Manual: R-410A Outdoor Split-System Air Conditioner 21
