TEC3000 Series Wireless Proportional Fan Coil and Individual Zone Thermostat Controllers with Dehumidification
Capability Installation Instructions
14
Wireless
Network
Communication
Indicates the signal strength of the TEC’s connection to the wireless network. Blank or
three empty bars indicates that there is no connection to the PAN and the supervisory
controller.
If the signal strength bars are underlined, review the network status for more information
regarding the wireless network.This also typically indicates that communication is lost to
the ZFR Pro Coordinator Radio.
Arrow
Increases or decreases a value depending on the configuration screen.
Run/Hold
Displays the current setpoint. Hold mode is enabled by pressing the button.
No Hold/Hold
Displays the current setpoint. Hold mode is not enabled.
Hold/Run
Displays the active setpoint. Hold mode is not enabled.
Right Arrow
Proceeds to the next screen.
Fan Overrides
for Single-
speed Fans
On
Auto
Quiet
Adjusts the fan override between On, Auto, and Quiet for single-speed fans.

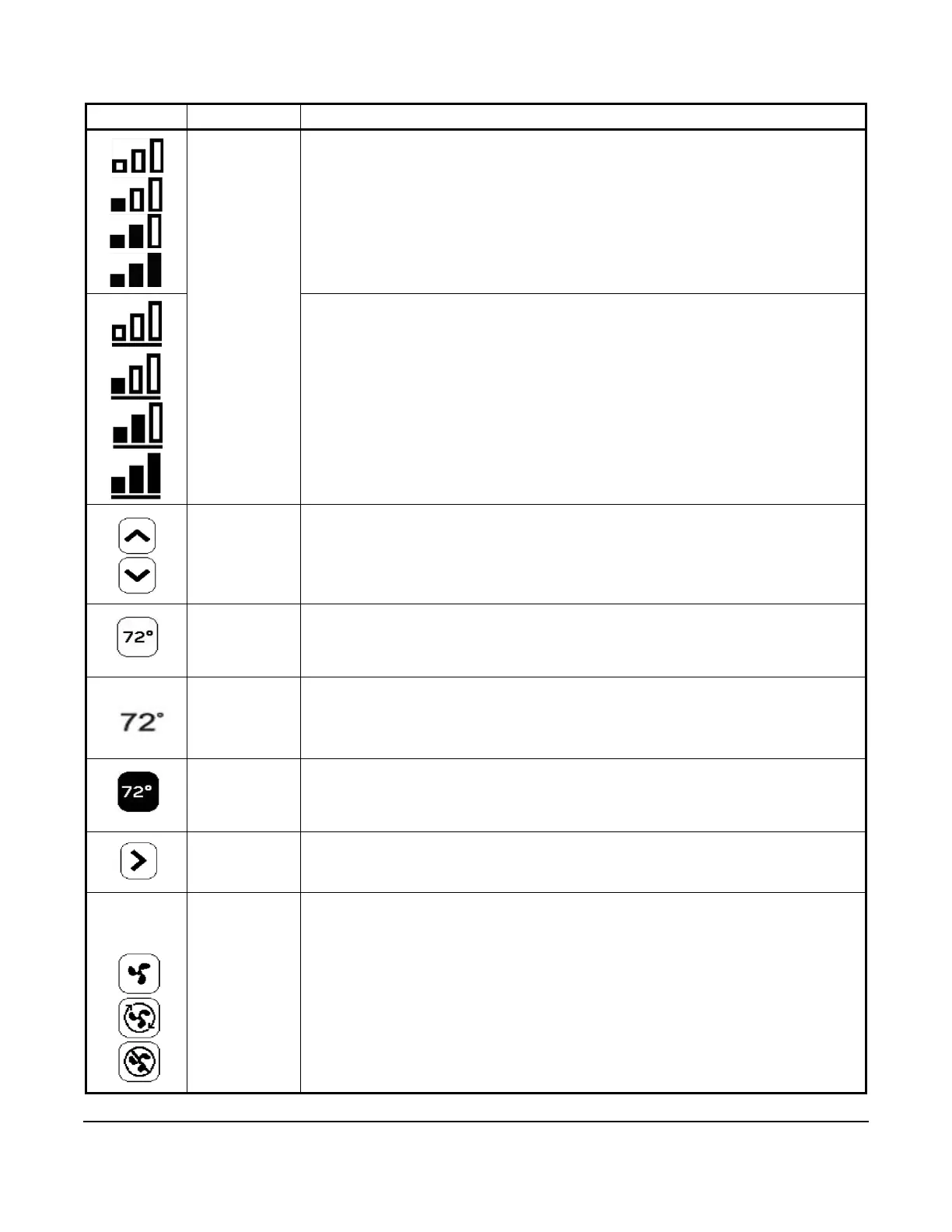

Table 4: Touchscreen Icons (Part 2 of 4)
