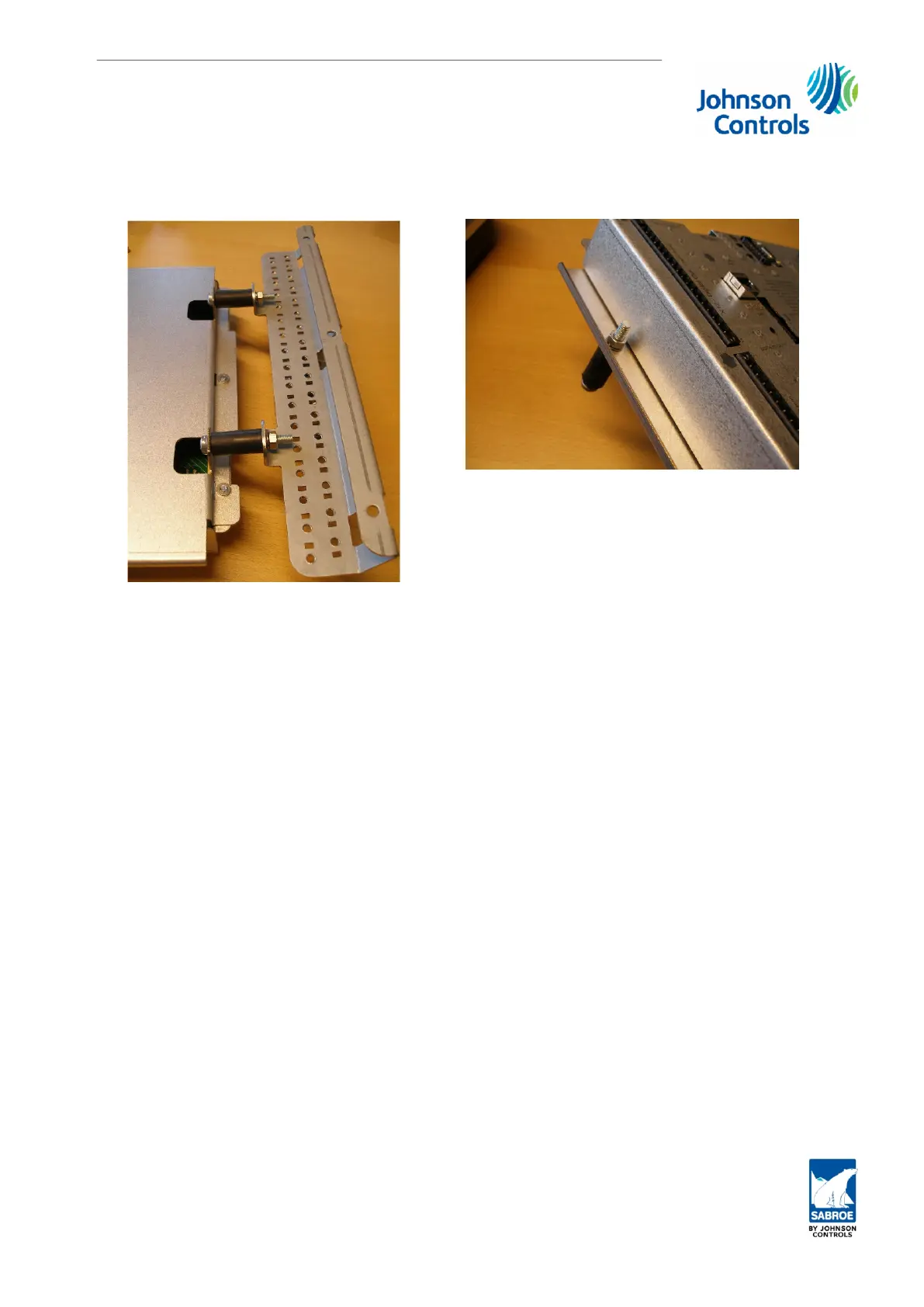

Mounting of vibration dampers

Fig. 9

• Connect the ground rail with the con-

troller frame using the vibration

dampers

• For each vibration damper, use one

M6x8 screw torx, one M6 lock washer

and one M6 nut

• Use a screwdriver torx T30 and a

spanner no. 10 to fasten the vibration

damper

Fig. 10

• The upper part of the controller frame

is connected to the panel mounting

plate also using vibration dampers.

Unisab III panel mounting kit

Mounting instruction - Unisab III

006093 - en 2009.02.

5/6
