VA9208-GGx-x Series Proportional Electric Spring Return Valve Actuators Installation Instructions 13
2. Rotate the switch adjuster until it points to the
desired switch point.
3. Connect Auxiliary Switch No. 2 to a power source
or an ohmmeter and apply power to the actuator.
The actuator moves to the fully open position and
holds while power is applied.
4. Observe the switch point. If required, repeat Step 1
through Step 3.
Repair Information
A number of replacement parts are available; see
Table 3 for more details. If an VA9208 Series Electric
Spring Return Actuator fails to operate within its
specifications, replace the unit. For a replacement
electric actuator, contact the nearest Johnson Controls
representative.

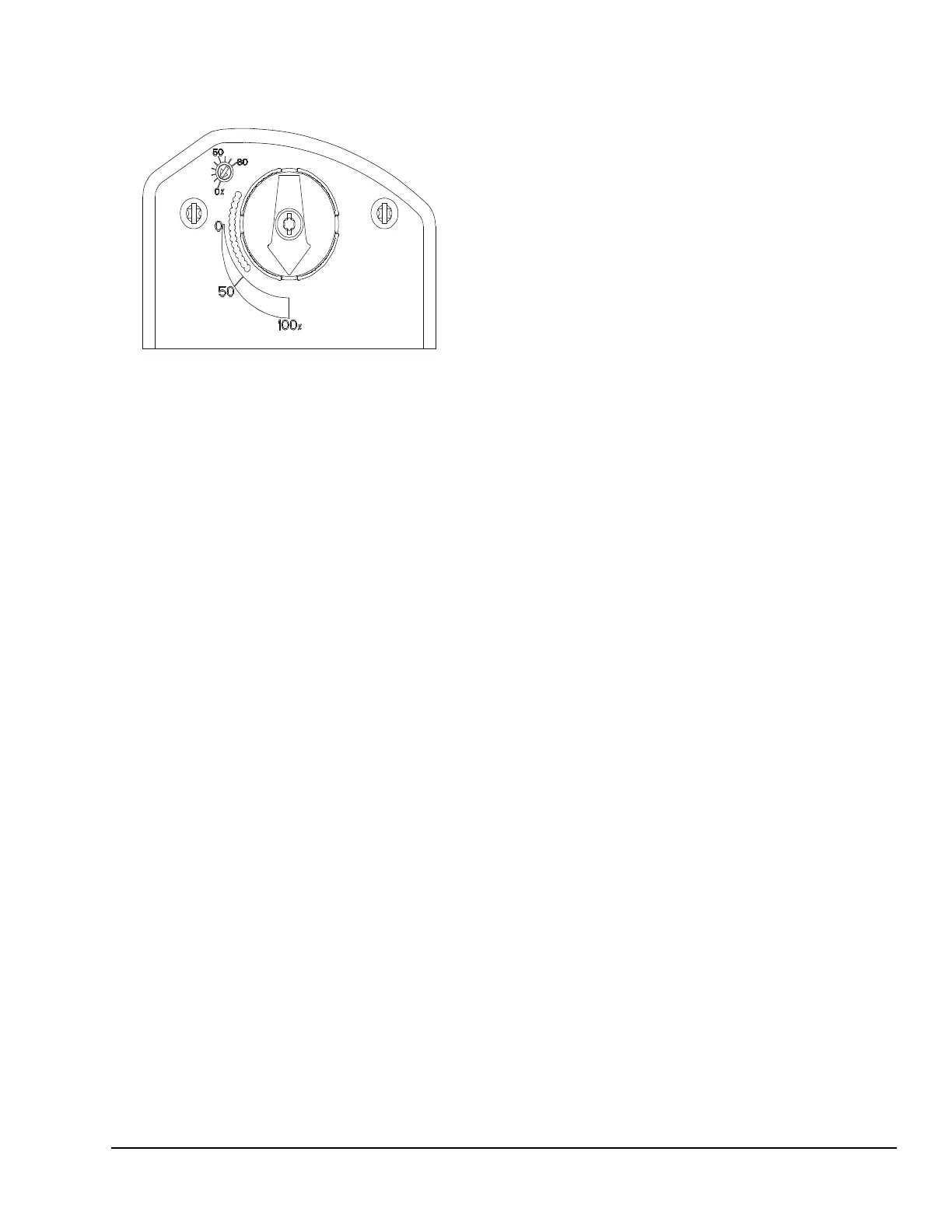

Figure 25: Switch Trip Point Settings
To Next Page
