Johnson Controls VAP Series User Manual

1.4 拨码开关设置
Dip switch settings
以下拨码开关设置适用于 VAP-B 系列执行器。所有型号都有 10 个 DIP 开关可用于现场配置执行器。
The following dip switch settings apply to the VAP-B series actuators. All the proportional models have 10 dip switches that you can use to configure the
actuator in the field.
以下拨码开关设置适用于 VAP-C 系列执行器。所有型号都有 10 个 DIP 开关可用于现场配置执行器。
The following dip switch settings apply to the VAP-C series actuators. All the proportional models have 10 dip switches that you can use to field
configure the actuator in the field.

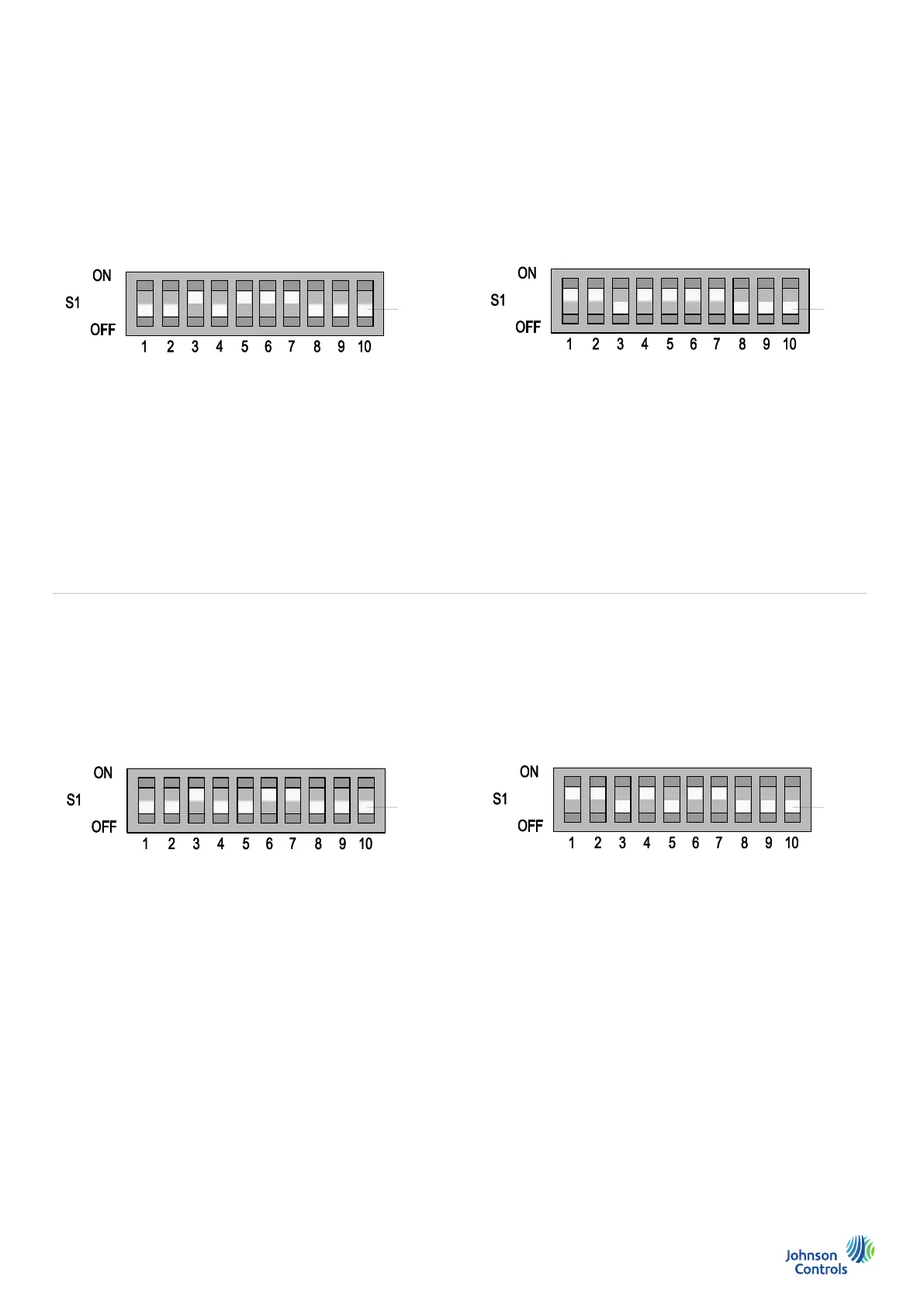

例 1 Example 1 ( 出厂设置 Factory Settings)
例 3 Example 3 ( 出厂设置 Factory Settings)
例 2 Example 2
例 4 Example 4
拨码
Switch
拨码
Switch
拨码
Switch
拨码
Switch
比例调节型控制方式 proportional control
控制信号 control signal : 0~10VDC
阀位反馈信号 feedback signal : 0~10VDC
低速 low speed : 2s/mm
比例调节型控制方式 proportional control
控制信号 control signal : 0~10VDC
阀位反馈信号 feedback signal : 0~10VDC
低速 low speed : 2s/mm
比例调节型控制方式 proportional control
控制信号 control signal : 4~20mA
阀位反馈信号 feedback signal : 4~20mA
低速 low speed : 2s/mm
比例调节型控制方式 proportional control
控制信号 control signal : 4~20mA
阀位反馈信号 feedback signal : 4~20mA
低速 low speed : 2s/mm
图 4: VAP-B系列执行器拨码开关设置
Fig 4: VAP-B series actuators Dip switch settings
图 5: VAP-C系列执行器拨码开关设置
Fig 5: VAP-C series actuators Dip switch settings
Software License.
Any software (including firmware) included in or with this product is licensed, not sold, and is subject to the terms of the Johnson Controls End User License Agreement
available at https://www.johnsoncontrols.com/buildings/legal/digital/generaleula . Any open source software included in or with this product is subject to the terms of its
respective license. By using any of the foregoing software, you are also agreeing to be bound to the terms of such licenses.
