Johnson Controls York 20 Series User Manual

5168275-JIM-I-1121
8 Johnson Controls Ducted Systems

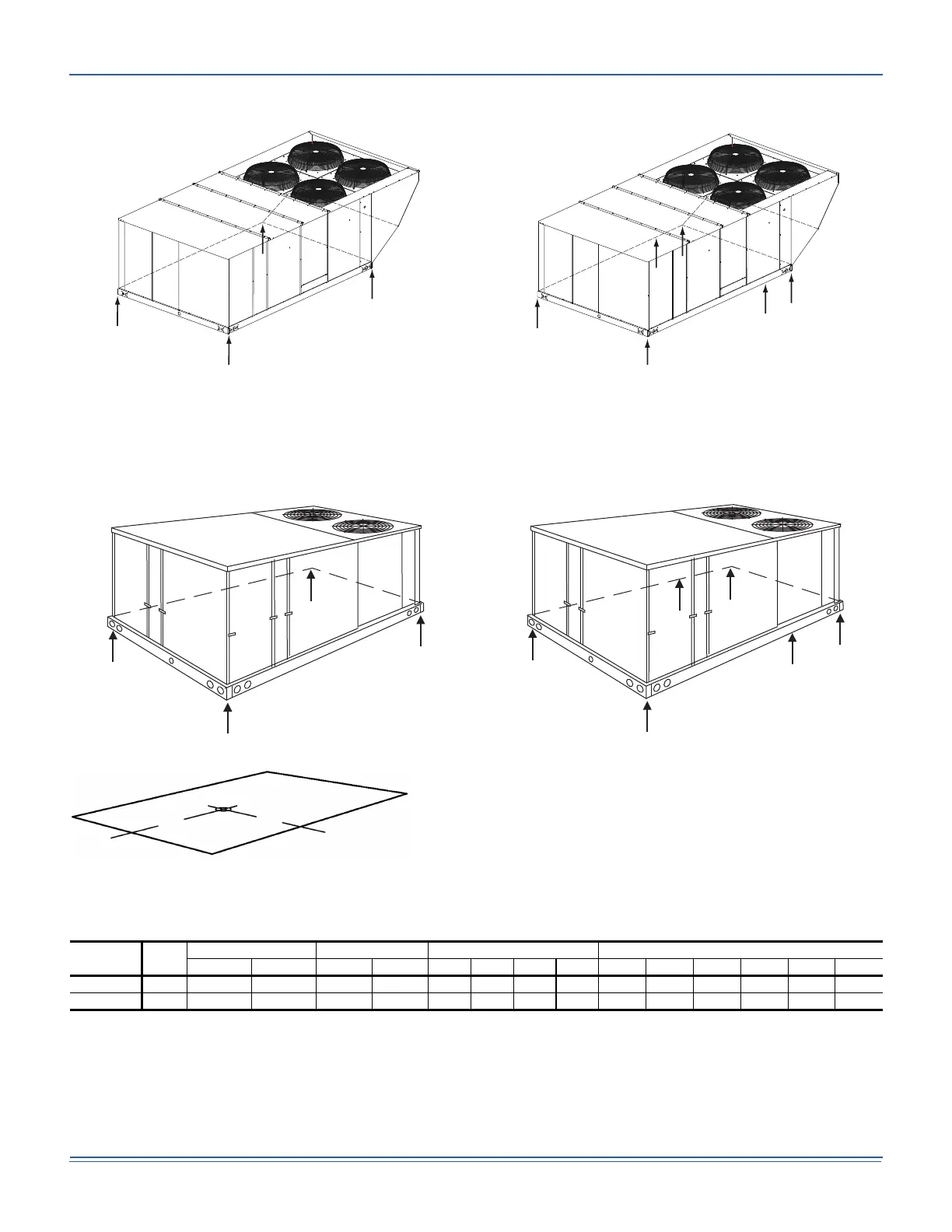

Figure 2: J20XP Unit 4 Point Load Weight Figure 3: J20XP Unit 6 Point Load Weight
Figure 4: J15XP Unit 4 Point Load Weight Figure 5: J15XP Unit 6 Point Load Weight
Figure 6: Center of Gravity
A
D
B
C
A
D
E
C
F
B
A
B
C
D
FRONT
A
C
D
F
B
E
FRONT
Table 2: J15/20XP Unit Weight
Size
(Tons)
Model
Weight (lbs.) Center of Gravity 4 Point Load Location (lbs.) 6 Point Load Location (lbs.)
Shipping Operating X Y A B C D A B C D E F
15 (15) J**XP 2145 2140 77.1 45 454 592 619 475 290 344 413 431 359 303
20 (20) J**XP 2655 2650 88.8 46 462 863 863 462 280 405 640 640 405 280
X
Y
LEFT
FRONT
