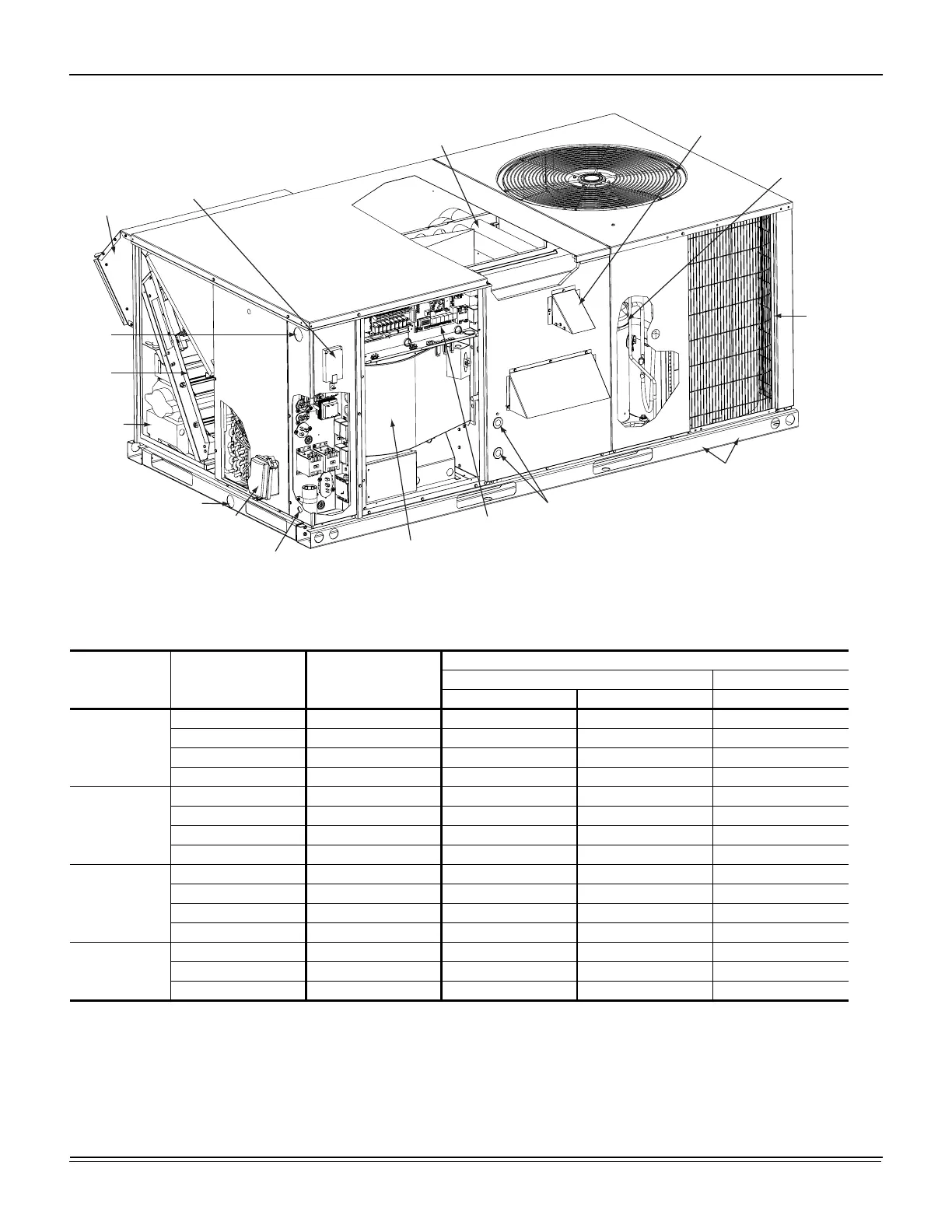

Figure 1: ZE036-072 Component Location
Smoke
Detector
3/4” PVC Female
Condensate Drain
GFCI
Convenience Outlet
Knockout
For Side
Control Entry
Simplicity® Lite™
Or Smart Equipment™
Control Board
Knockout For Side
Gas Supply Entry
Full Perimeter Baserails
With Forklift Slots And
Lifting Holes
Highly Efficient
Enhanced Copper
Tube/Enhanced
Aluminum Fin 
Or
Micro-Channel
Aluminum Tube/
Aluminum Fin
Condenser
Compressor
Power Ventor Motor With
Post Purge Cycle
20 Gauge Aluminized
Steel Tubular Heat Exchanger
Belt Drive Or
Direct Drive
Blower
HACR
Breaker
Economizer
Hood
Knockout
For Side
Power Entry
Slide-In
Economizer
Table 1: ZE036-072 Unit Limitations
Size
(Tons)
Unit Voltage SCCR (kVA)
Unit Limitations
Applied Voltage Outdoor DB Temp
Min Max Max (°F)
ZE036
(3.0)
208/230-1-60 5 187 252 125
208/230-3-60 5 187 252 125
460-3-60 5 432 504 125
575-3-60 5 540 630 125
ZE048
(4.0)
208/230-1-60 5 187 252 125
208/230-3-60 5 187 252 125
460-3-60 5 432 504 125
575-3-60 5 540 630 125
ZE060
(5.0)
208/230-1-60 5 187 252 125
208/230-3-60 5 187 252 125
460-3-60 5 432 504 125
575-3-60 5 540 630 125
ZE072
(6.0)
208/230-3-60 5 187 252 125
460-3-60 5 432 504 125
575-3-60 5 540 630 125
