Original instructions
> English
Submersible bilge pump for pumping
bilge water in marine environment. To
be installed in the keelson.
Security
• Thepumpmaynotbeusedforother
liquids than water/bilge water.
• Alwaysinstallthepumpaccording
to the wiring diagram.
• Alwaysusethefuserequired,see
”Design features” below.
• Thewireconnectionsmustbe 
sealed with a marine sealant.
• Insulationorcablesheathingsmust
be placed above the highest bilge
water level.
• Donotrundry.
Type designation
Part No: 32-1015-01
Design features
Max flow 30 l/min/475 GPH
Amp Draw 2 A
Voltage 12 V DC
Fuse size 3 A
Hose size 3/4”
Height 100 mm
Weight 0.35 kg
Waste handling/
material recycling
Attheproductsendoflife,please
dispose of the product according to
applicablelaw.Whereapplicable,
please disassemble the product and
recycle the parts material.
Bilge Mate - Submersible Bilge Pump, 12 V
Installation

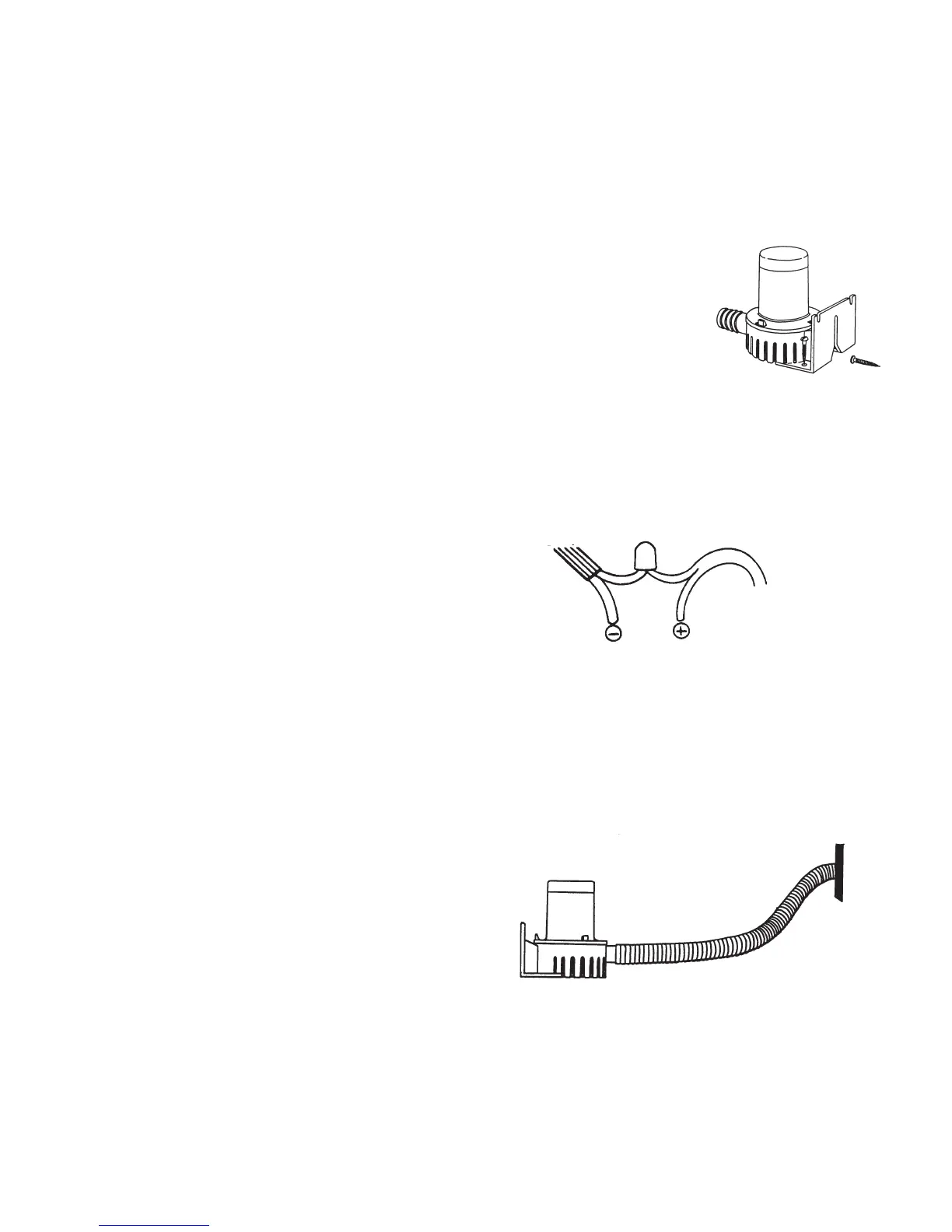

1. Select the lowest point in your bilge.
Fasten the pump with
screws where convenient.
You may use a single
screw on an upright
member and simply
slide the screw into the
pump bracket slot.
2. Connect the brown wire to the posi-
tive (+) lead and switch and connect
the black wire to the negative (-)
lead. We suggest a 2 A fuse.
3. Make sure the pump oulet is level
or pointed slightly upward. The dis-
charge hose must have no loops or
sags which could cause an airlock.
Fasten the hose to the pump outlet
andtothethruhullconnector,culling
off any excess hose that might sag.
Forlongerpumplife,wireonlyas
directed and do not run dry. Turn the
switch off immediately after the bilge is
pumped.
From pump
To switch
Battery
