10 ©2010 Johnson Level & Tool - Rev. 1
Application Methods
Install the alkaline batteries into the instrument. Put the laser on a
platform or connect the laser to a tripod using the 5/8” - 11 screw
thread.
Note:
1. To use the laser in the self-leveling status, please set the lock knob
to the on position.
2. While the laser is in the vertical status (manual mode), please set
the lock knob to off position.
3. Power on the laser and select your desired speed by pressing the
keys on the keypad.
4. After operations or before moving the unit, please power off and
lock the laser first.

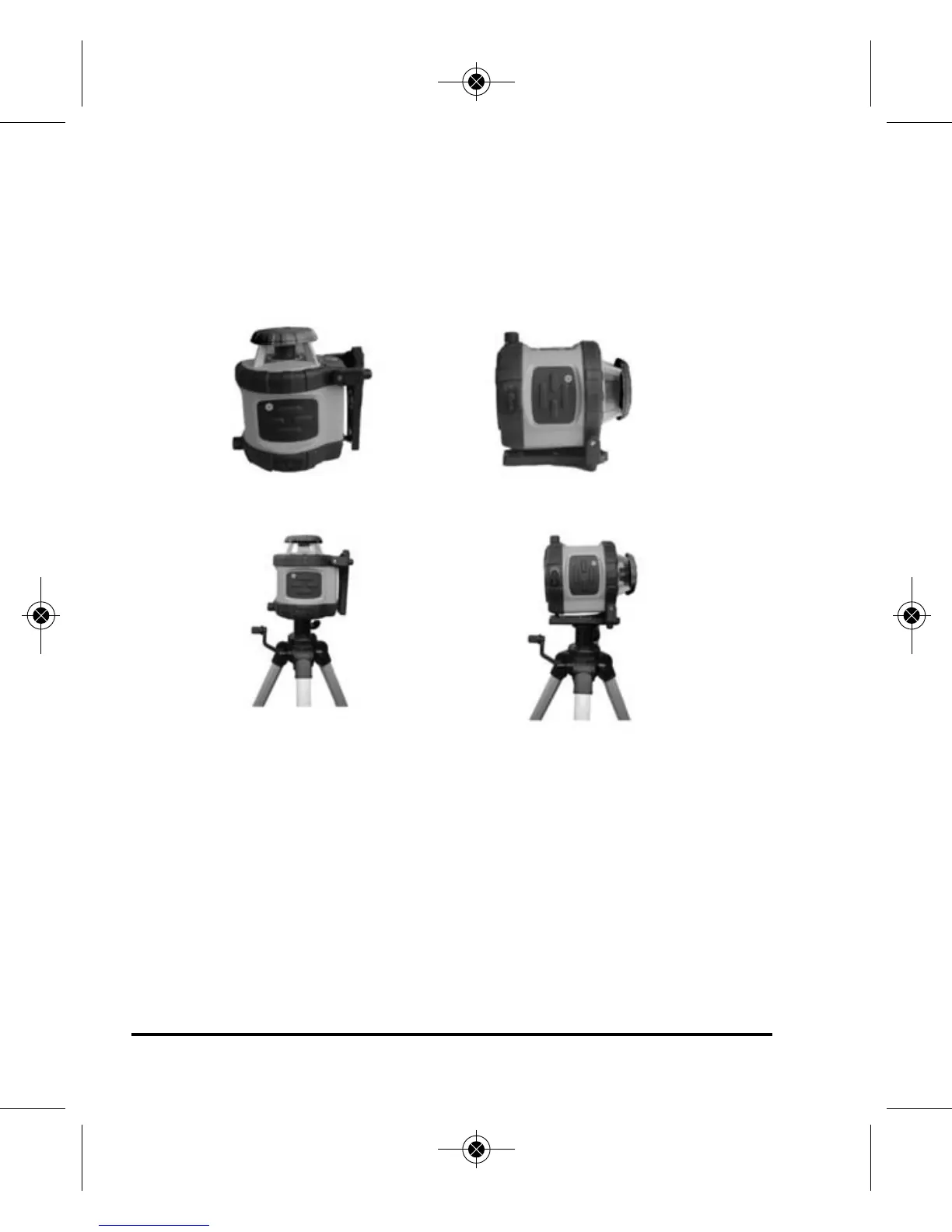

Use on a platform
Connect the laser with the tripod using the 5/8” - 11 screw thread
3515H_Manuals 6/2/10 9:00 AM Page 10
