We want to get you up and running as quickly as possible - but this quick start guide is not a replacement for reading and understanding your
operator’s manual! For complete safety & operating instructions, refer to the operator’s manual included with your rotary laser, or scan the QR code.
COMMON APPLICATIONS
FENCING, POST SETTING & EXCAVATION
Set common fence post heights, determine excavation
depth and complete square alignment work using the
laser’s 90° split beam.
DROP CEILINGS
Rotary lasers are the perfect tool for drop ceilings.
Mount a rotary just below your ceiling, and use a
magnetic laser target to find the beam.
USING THE LASER DETECTOR

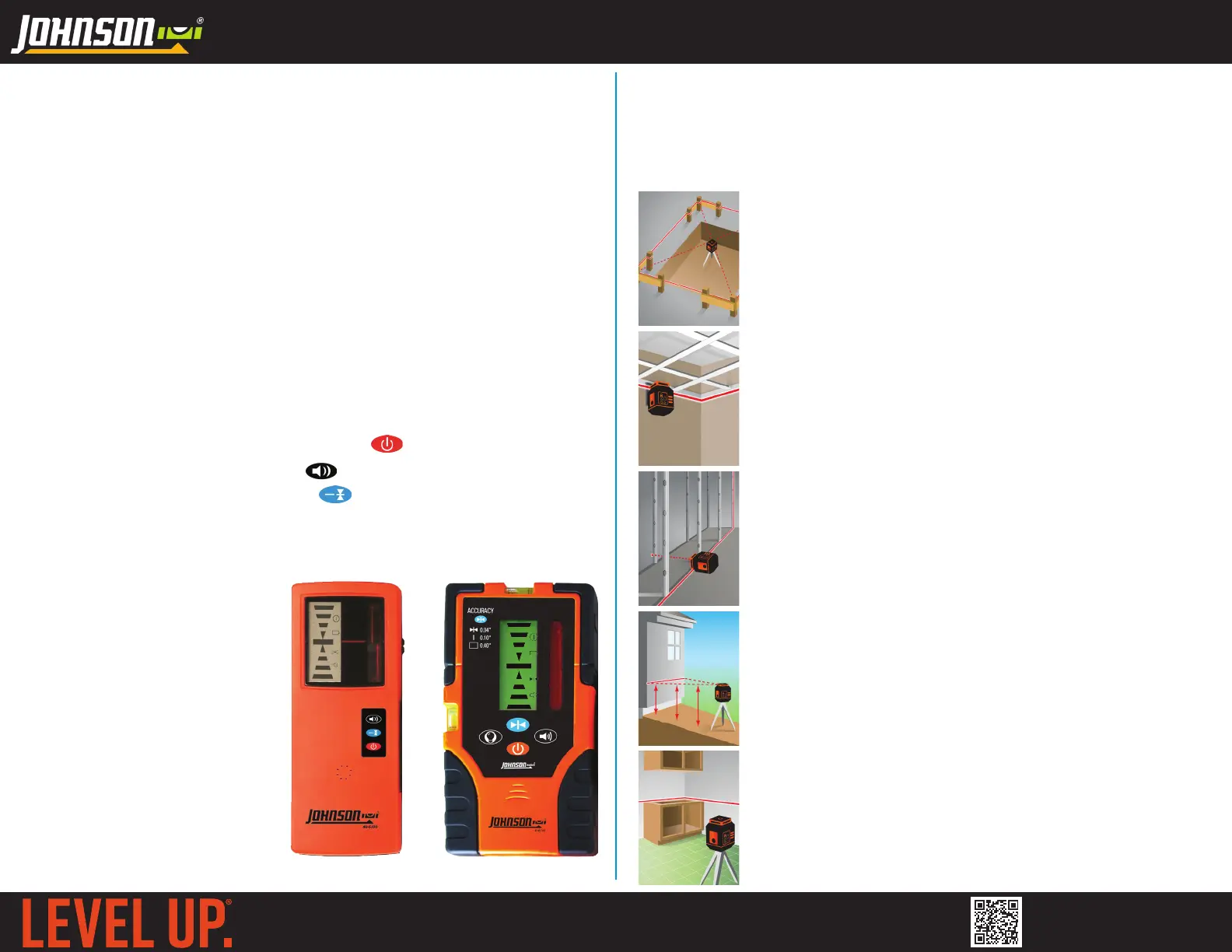

40-6700 40-6715/40-6763
Laser detectors locate the laser beam when you otherwise can’t see it
with your naked eye, such as when working outdoors, in high ambient
light and over long distances.
Model 40-6532 includes Johnson’s 40-6715 detector, and models
40-6539 and 99-027K include Johnson’s 40-6700 detector. These
three models are also compatible with Johnson’s accessory detectors
such as the model 40-6791 machine mounted detector for mounting
to skid steers, excavators and other similar equipment.
The green laser 40-6543 is only compatible with Johnson’s 40-6763
green laser detector.
HOW TO USE THE LASER DETECTOR
1. Specifics and features vary slightly by model - consult your
manual for the details on your detector.
2. Power on/o the detector by pressing
.
3. Adjust the volume by pressing
.
4. Adjust the accuracy by pressing
. Higher accuracy is better for
critical work. Lower accuracy is better for rough work or for more
quickly locating the grade position.
5. Pass the detector window
through the beam. The
detector will beep (if
volume is on), and the
LCD arrow will indicate
the direction to move the
detector.
6. When the detector is
on grade, the beep will
become a solid tone,
and the LCD arrow will
become a solid line in the
center of the LCD at the
height of the beam.
Your new rotary laser is a versatile tool. You will constantly find new
uses around your jobsite where a rotary will help you complete your
work faster, safer and smarter. Complete large leveling tasks with
ease, and complete layout work in record time.
PLUMB & ALIGN WALLS
Use the 90° split beam to lay out walls at perfect right
angles. Use the rotary in vertical mode to plumb walls or
set top and bottom drywall track.
GRADING
The conventional use for rotary lasers, you can easily
level or slope large areas of land for proper drainage.
Pair with a grade rod and a detector, or use a machine
mounted detector to simplify large grading jobs.
CABINETS, WAINSCOTING & FINISH WORK
Use the laser to lay out kitchen cabinets (both horizon
-
tal and vertical alignment), shelving, wainscoting, chair
rails and more. You can also install tile on walls and
floors, and transfer layout lines from floor to ceiling.
