©2010 Johnson Level & Tool - Rev. 1 7
Establishing Common Angles
1. Mark the point on the floor where the laser beams would
intersect (point A).
2. Using the angle scale as a guide, mark the point on the
floor that corresponds to the angle you want to establish
(point B).
3. Rotate the laser so that the 0º angle scale is on point B.
Make sure that the laser beams still intersect at point A.
Increasing the Beams’ Visibility
The laser beams’ visibility can be increased when working in really
bright conditions, such as working near window openings or
outside walls.
1. Work toward the laser.
2. Use the target.
3. Use laser glasses (not included).

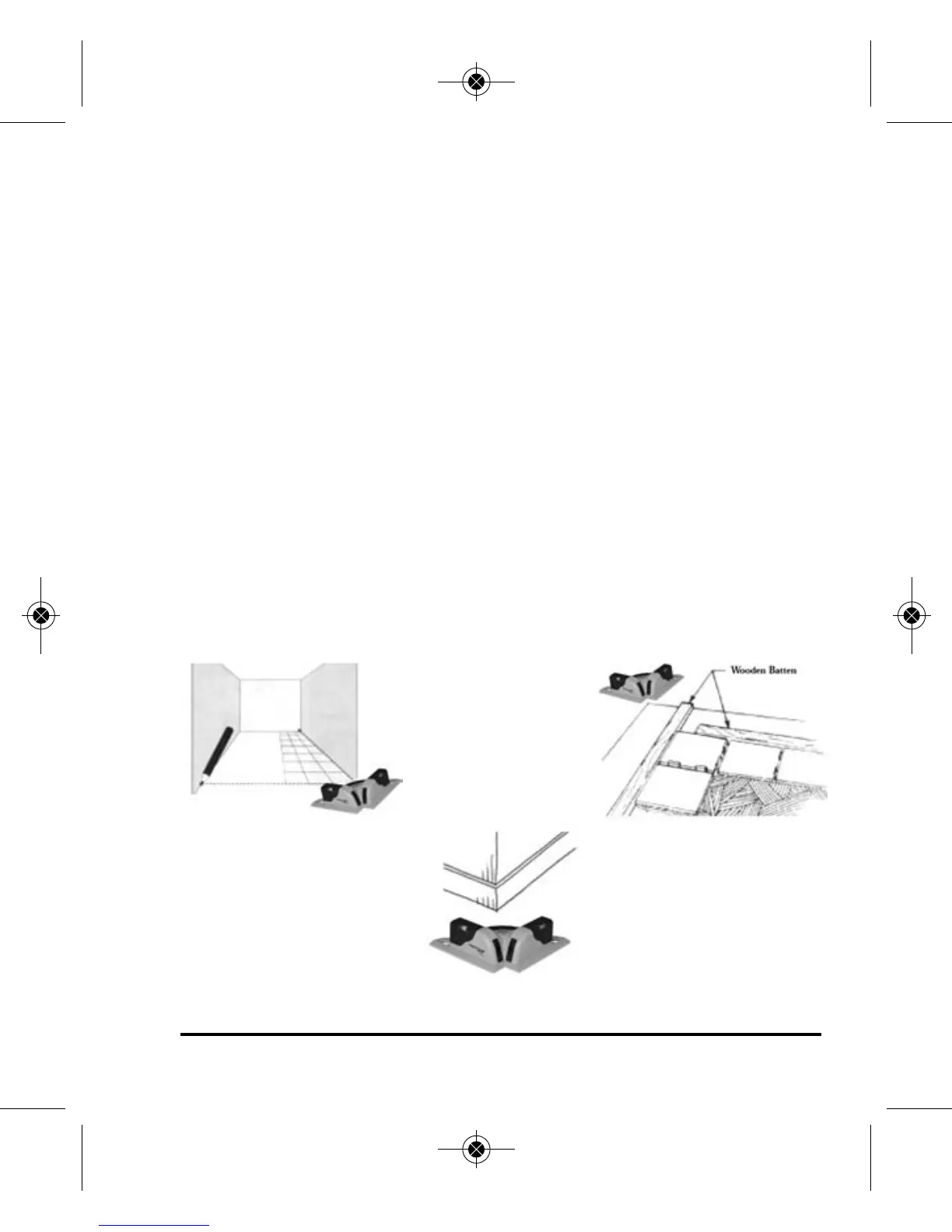

Checking Precision Angles
Installing Tile
Squaring Walls
3626H_Manuals 6/17/10 11:43 AM Page 7
