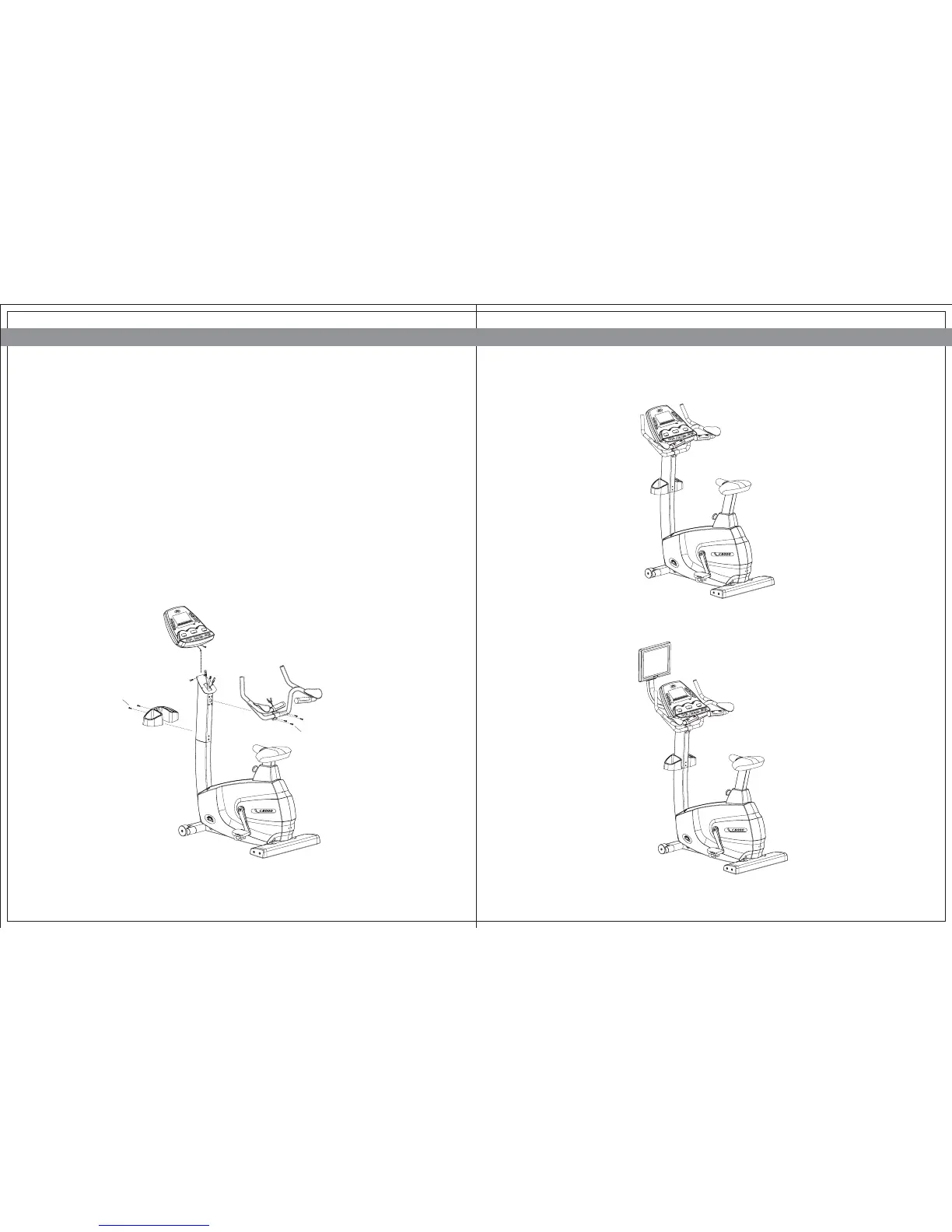

STEP 4
FINAL ASSEMBLY
OPTIONAL ENTERTAINMENT ACCESSORY SHOWN
JOHNSON BIKE C8000 / R8000 JOHNSON BIKE C8000 / R8000
ëHANDLEBAR SET
Feed the heart rate wires of the handlebar through the small hole located in the front of
the console mast. Pull these wires up through the hole at the top of the console mast.
Attach the handlebar to the console mast using four bolts (Z01). Tighten with the #6 Allen
Wrench (Z31).
ëCONSOLE
Remove the four mounting bolts from the back of the console with the Phillips Screwdriver
(Z33). Plug in the wire harness and the two heart rate wires to the back of the console.
Attach the console to the console mast with the four bolts removed earlier in this step.
ëACCESSORY TRAY
Attach the accessory tray to the console mast using two screws (Z08). Tighten them with
the Phillips Screwdriver (Z33).
4
Z08
Z01
