Johnson E7000 User Manual

1110
JOHNSON ELLIPTICAL E7000JOHNSON ELLIPTICAL E7000

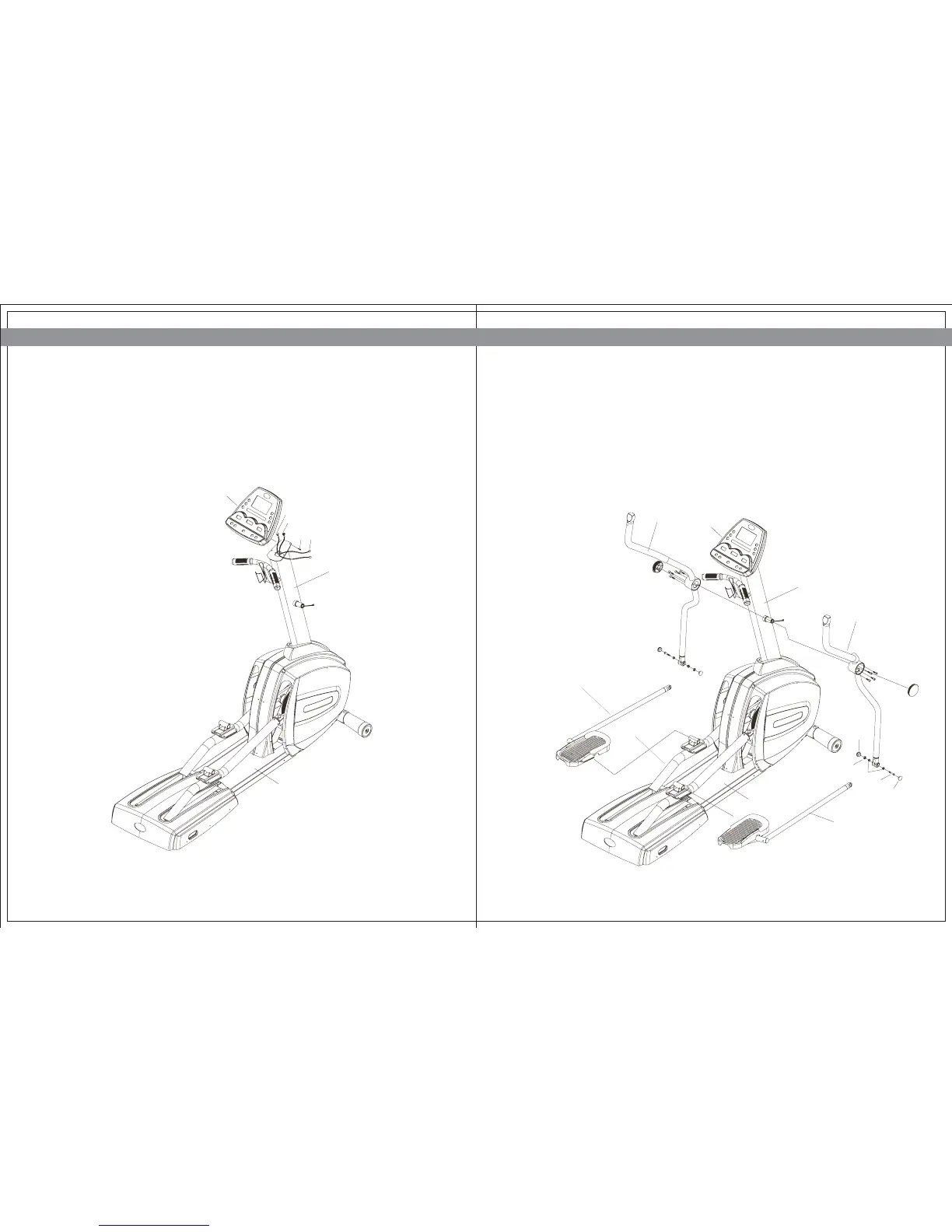

STEP 3 STEP 4
1). Connect the cable inside the Console, and unscrew the Screws attached the back
of the Console.
2). Attach the Console to the top of the Console Mast using the same Screws attached
the back of the Console.
1). Attach the Handlebars(R) and (L) to the Console Mast using Hex Head Screws
(Z18), and place the Handlebar Caps around the Handlebars.
2). Fasten the Link Arm(R) and (L) to the Pedal Arms using Hex Head Screws (Z01)
and Washers (Z02).
3). Attach the Handlebars to the Link Arms using Buttonhead Bolts (Z06), Bushings
(Z05), and Nylon Nuts (Z07).
4). Align the cut-out inside the Link Arm Caps (Z08) with the Link Arm mounting hole.
Apply pressure to the cap until it snaps into place.
Console
Console Mast
Frame
Wiring Harness
Sensor Cable
N53
Consloe
Consloe Mast
Frame
Link Arm(L)
Pedal Arm
Link Arm(R)
Handlebar(L)
Handlebar(R)
Z18
Z08
Z07
Z05
Z06
Z08

Johnson E7000 Specifications

General

Brand	Johnson
Model	E7000
Category	Elliptical Trainer
Language	English
