No display on the console or the display is dim (JPC/B/S/E)
Possible causes:
1. Console is damaged or
the console cable is not
connected properly.
2. Poor connection to all
the terminals on the
control board.
3. Control board is
damaged.
4. Generator is
damaged.(for JPC/B/S)
Fix:

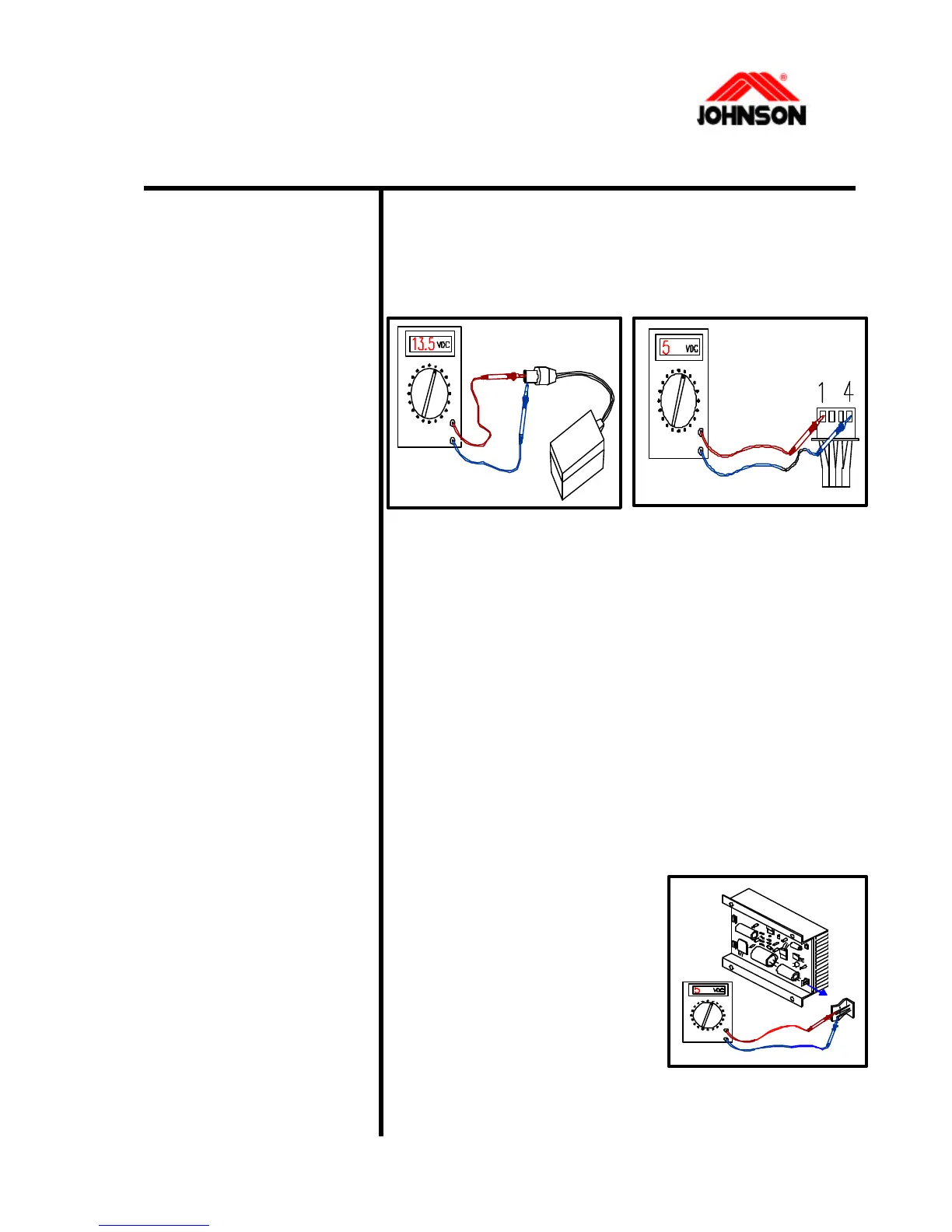

1. First, Check if the adapter is connected properly for
both input & output ends (for JPS/JPE). Remove the
console, then check if the console cable is connected
properly. Unplug the console cable and use a multi-
meter to check if the voltage on the 1’st and 4’th pin
of the console cable is greater than 5(4.5) VDC.
u If it is, replace the console and check again.
2. Open the side covers of the bike and check if all the
wire harnesses are connected properly to the terminals
of the control board.
3. Unplug the console cable from the control board and
check if the voltage on the 1’st and 5’th(4’th for
JPS/JPE) pin of control board is greater than 5(4.5for
JPS)VDC
u If it is, replace console
cable with a new one.
u If it is not, next step.
4. Unplug the generator cable
from the control board and
check if the voltage is
variable.
u If it is, replace the control board with a new one.
u If it is not, replace the generator with a new one.
2-1 Revision: 1.0 Date: 2001/06/01
