CRANK REPLACEMENT PROCEDURE (JPC/B)
Tools required:
u Crank extractor
u Coin
u Open-end
wrench
(14&17mm)
Procedure:

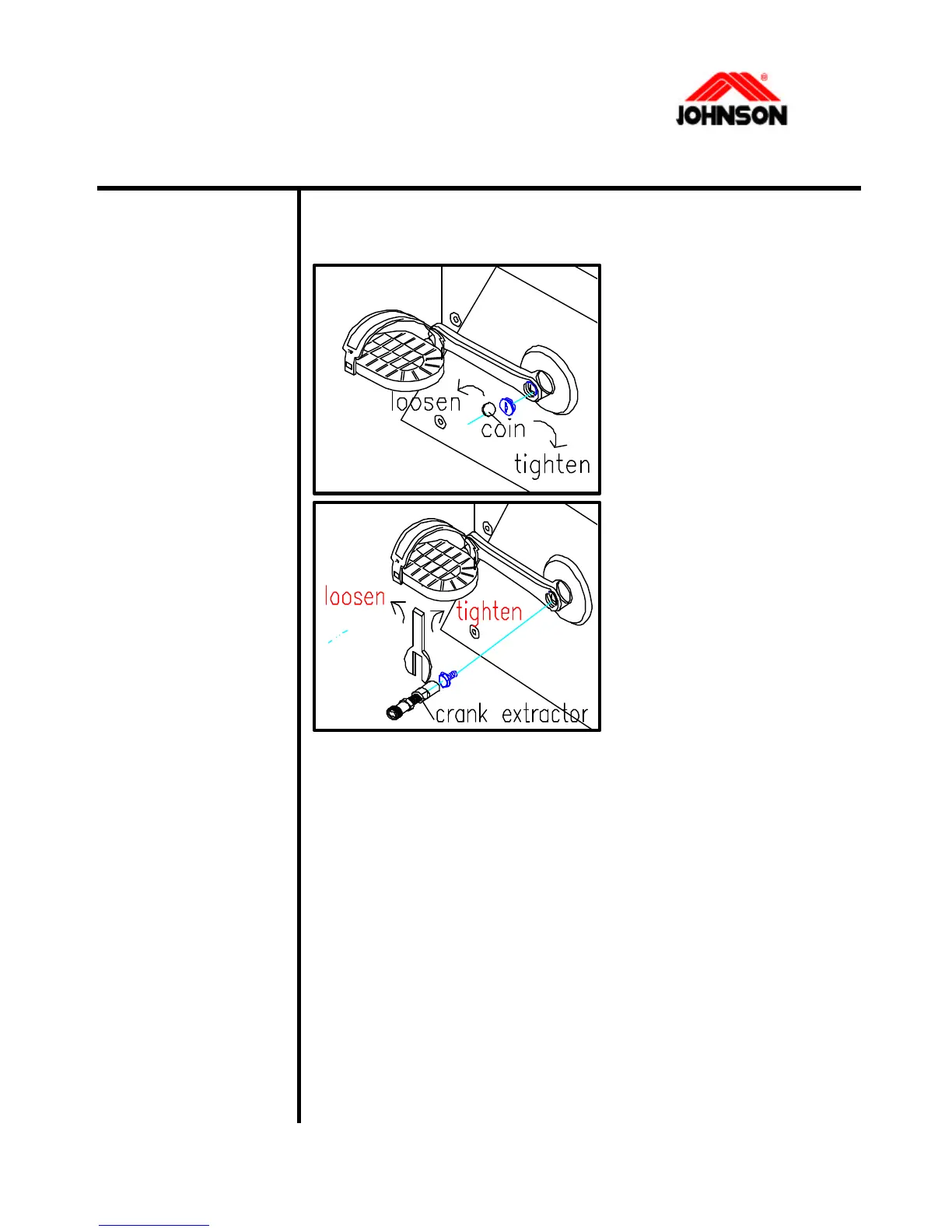

1 Loosen the crank
cover with a coin and
remove it.
2 With the crank
extractor and open-end
wrench loosen the screw
attaching the crank to the
axle.
3 Using the crank extractor and open-end wrench to extract
the crank then replace it with a new one.
4 Reverse step 1-3 to install the parts
