Johnson JPB-5100 - AXLE REPLACEMENT PROCEDURE (JPC;B)

AXLE REPLACEMENT PROCEDURE (JPC/B)
Tools required:
u Philips
screwdriver
u Hex key
(4mm)
u C-Clip Pliers
u Wooden
hammer
u Coin
u Crank
extractor
u Hex key
(4mm)
u Open-end
wrench
(14&17 mm)
Procedure:

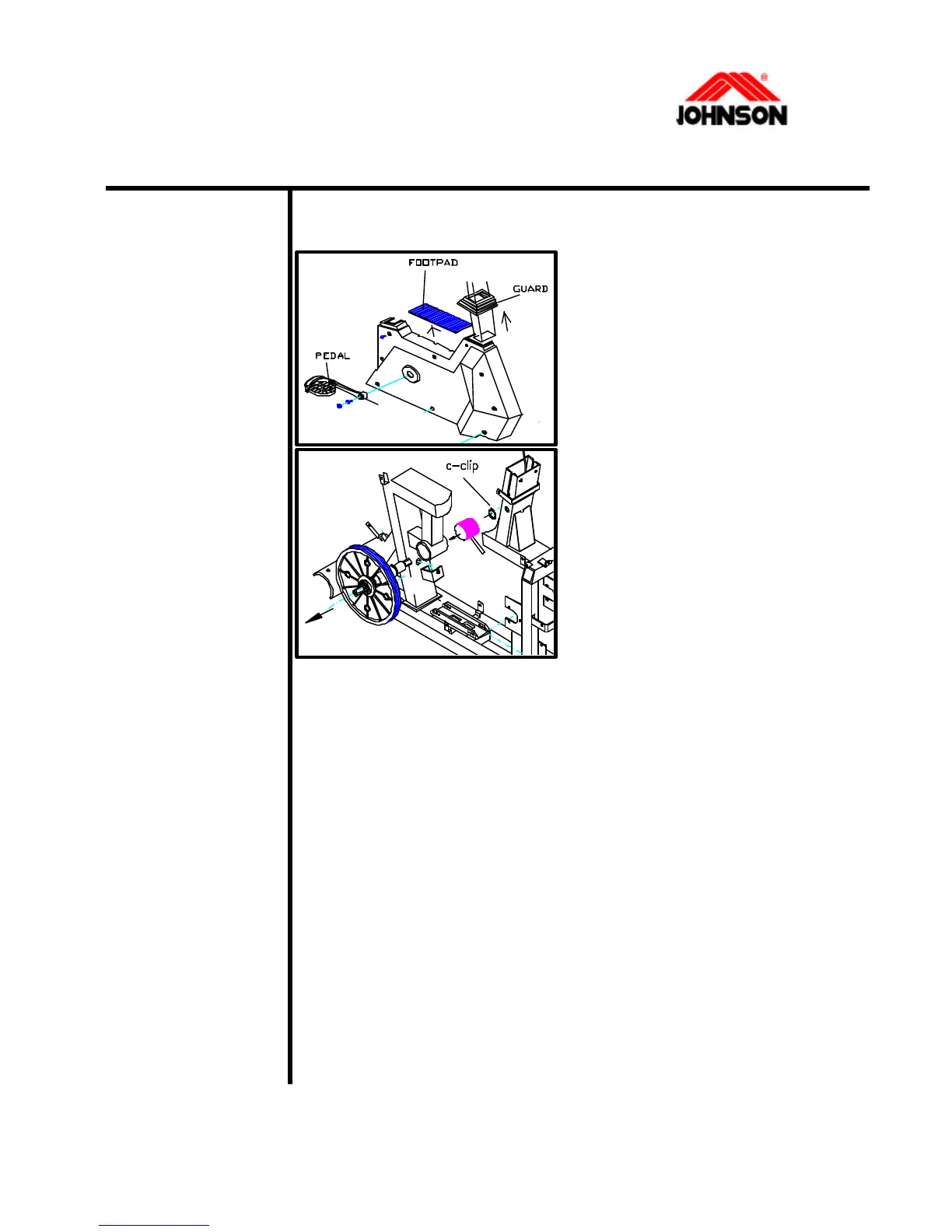

1. Remove the crank cover
and screw, then remove the
crank. (Refer to page 3-5).
Loosen the screws from the
side cover with the
screwdriver, then remove the
footpad, guard and side covers.
2. Loosen the belts
(500/440J8&400/380J6) from
the axle
3. With the C-Clip Pliers
remove the C-clip.
4. With the wooden hammer tap the axle out
5. Replace the axle with a new one, then install the c-clip by
using c-clip pliers.
6. Reverse the step 1-3 to install the parts.
3-9 Revision: 1.0 Date: 2001/06/01
