BEARING REPLACEMENT PROCEDURE (JPC/B)
Tools required:
u Philips
screwdriver
u Hex key (4mm)
u Bearing puller
u C-Clip pliers
u Wooden
hammer
u Open-end
wrench
(14&17 mm)
u Crank extractor
Procedure:

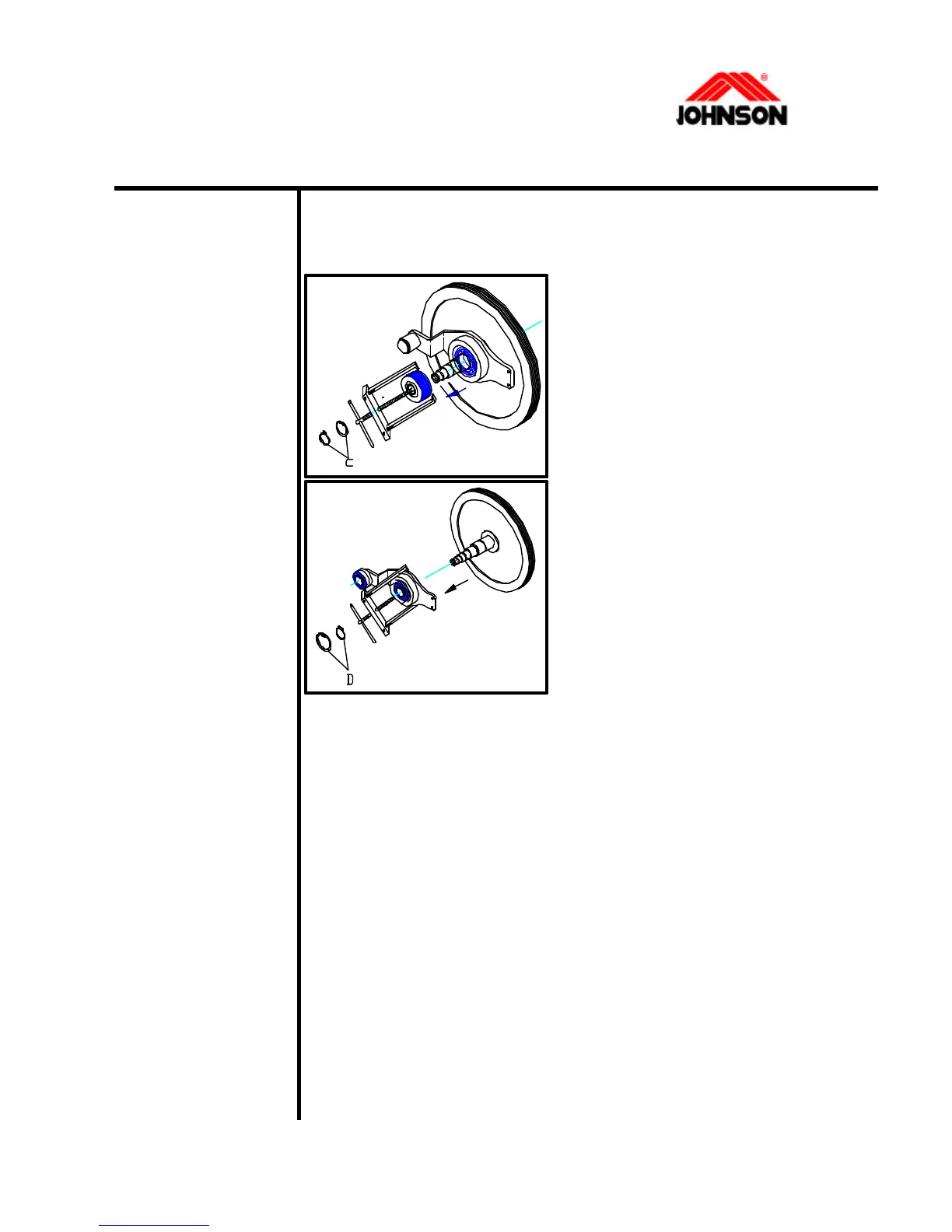

5. Remove the C-clip (c) with
the C-Clip Pliers and then
remove the pulley Assembly by
using the Bearing Puller.
u If the Ball Bearing failed,
replace pulley assembly.
6. Remove the C-clip (D) with
the C-Clip Pliers and then
remove the idler Assembly by
using the Bearing Puller then
strike bearing out from the
housing of idler assembly.
Replace bearing with a new
one.
7. Reverse step 1-7 to install the parts.
3-11 Revision: 1.0 Date: 2001/06/01
