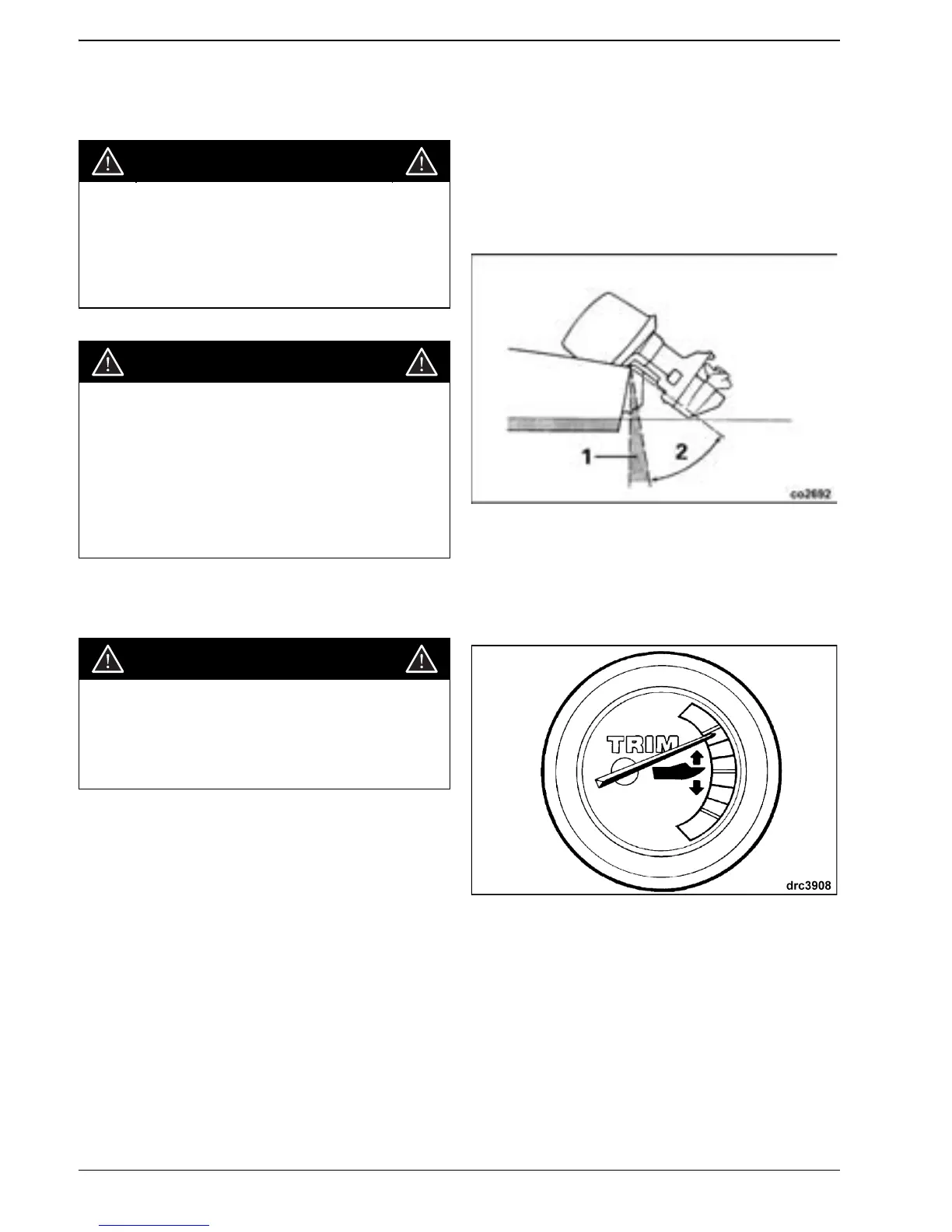

26 - Operation
OPERATION
POWER TRIM AND TILT
The trim system features a trim range of 14°:
You can pivot the engine to any position within this
range while underway and at any boat speed.
The power trim is normally used to improve accel-
eration, speed, and ride quality and to adjust for
changing water conditions.
The tilt system will tilt your engine an additional 50°:
While positioned within the tilt range, DO NOT run
the engine faster than idle speed. If idling a tilted
engine, keep its water intakes submerged at all
times.
The power tilt is often used to tilt the engine for
clearance when beaching, mooring, or launching.
1. Trim range
2. Tilt range
Trim Gauge
The trim gauge indicates the bow position that is
achieved by the trim angle of your motor.
DANGER
DO NOT run the engine indoors or without
adequate ventilation or permit exhaust
fumes to accumulate in confined areas.
Engine exhaust contains carbon monoxide
which, if inhaled, can cause serious brain
damage or death.
WARNING
Contact with a rotating propeller is likely to
result in serious injury or death. Assure the
engine and prop area is clear of people and
objects before starting engine or operating
boat. Do not allow anyone near a propeller,
even when the engine is off. Blades can be
sharp and the propeller can continue to turn
even after the engine is off. Always shut off
the engine when near people in the water.
WARNING
Any malfunction of the power trim and tilt
unit could result in loss of shock absorber
protection if an underwater obstruction is
hit. Malfunction can also result in loss of
reverse thrust capability.
