Johnson PL4 User Manual

Operation - 33

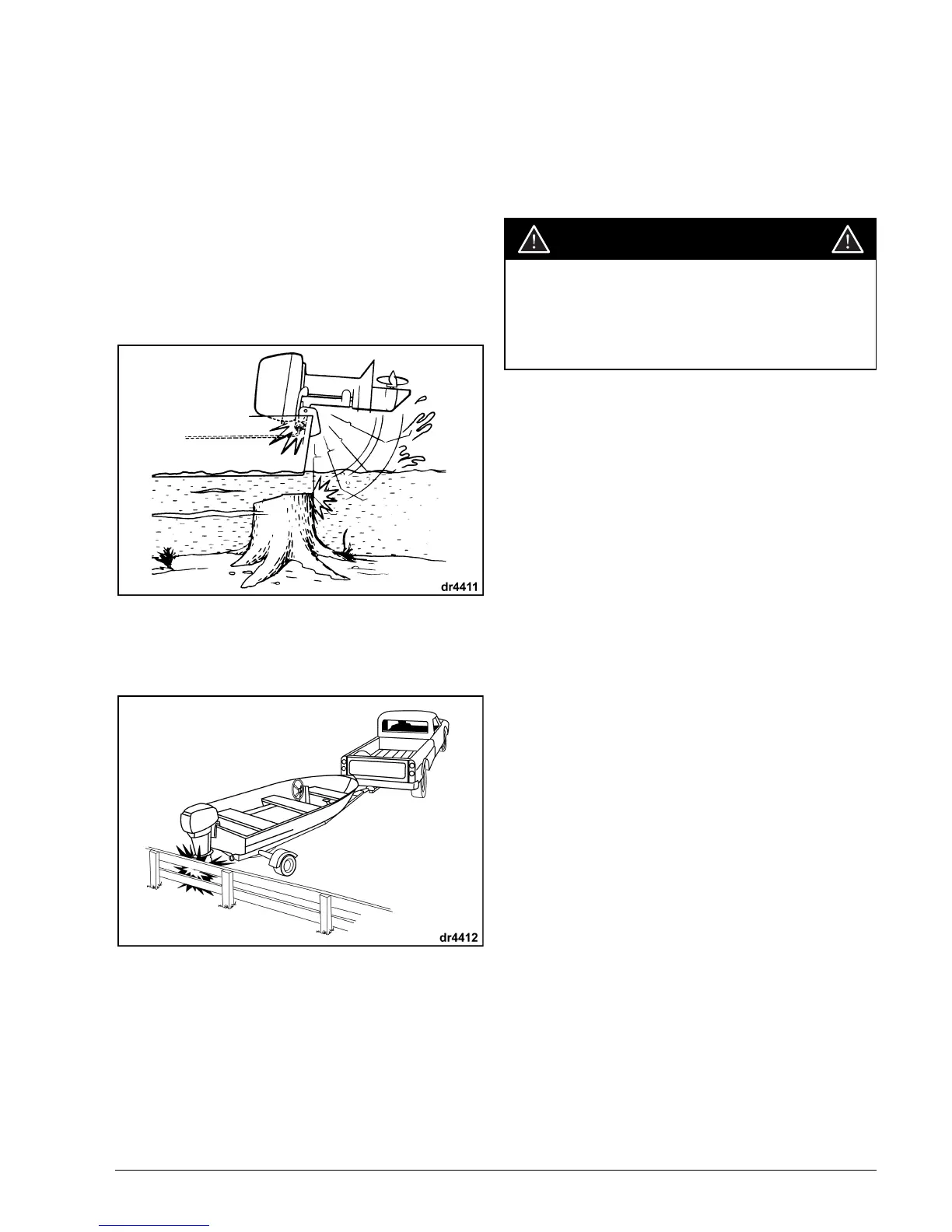

IMPACT DAMAGE
Your engine has a shock absorption system de-
signed to help withstand damage from impact with
underwater objects at low to moderate speeds.
However, high speed impacts with rigid underwater
objects like pilings or boulders can be beyond the
capability of the absorption system. Such impacts
can result in serious damage to your engine and in-
jury to boat occupants from the engine or its parts
entering the boat. Occupants can also be ejected or
injured by falling against portions of the boat as a
result of rapid deceleration following impacts. When
boating in unfamiliar, shallow, or debris-laden wa-
ters, seek information on safe boating areas and
navigation hazards from a reliable local source. Re-
duce your speed and keep a sharp lookout!
The engine’s shock absorption system does not
work while operating in reverse. If you back into an
object, either in the water or while trailering, your
boat and engine can be seriously damaged.
If you hit any object, stop immediately and examine
the engine for loosening of attaching hardware and
clamp screws, if equipped. Inspect for damage to
swivel and stern brackets, steering components,
and components in the area of impact. Also, exam-
ine the boat for structural damage. Tighten any
loosened hardware. If the collision occurred in the
water, proceed slowly to harbor. Before boating
again, have your Dealer thoroughly inspect all com-
ponents.
STORING
To avoid difficulty when restarting, never run the
engine with the fuel hose disconnected or run the
engine out of fuel.
If you must tilt the motor to remove it from the water,
lower it and allow the cooling system to drain com-
pletely as soon as you clear the launch area.
Between uses, store your motor in a vertical posi-
tion.
For recommendations on extended periods of stor-
age, refer to Off-Season Storage.
WARNING
Failure to inspect for damage could result in
sudden, unexpected component failure,
loss of boat control, and personal injury.
Unrepaired damage could reduce your boat
and engine’s ability to resist future impacts.
