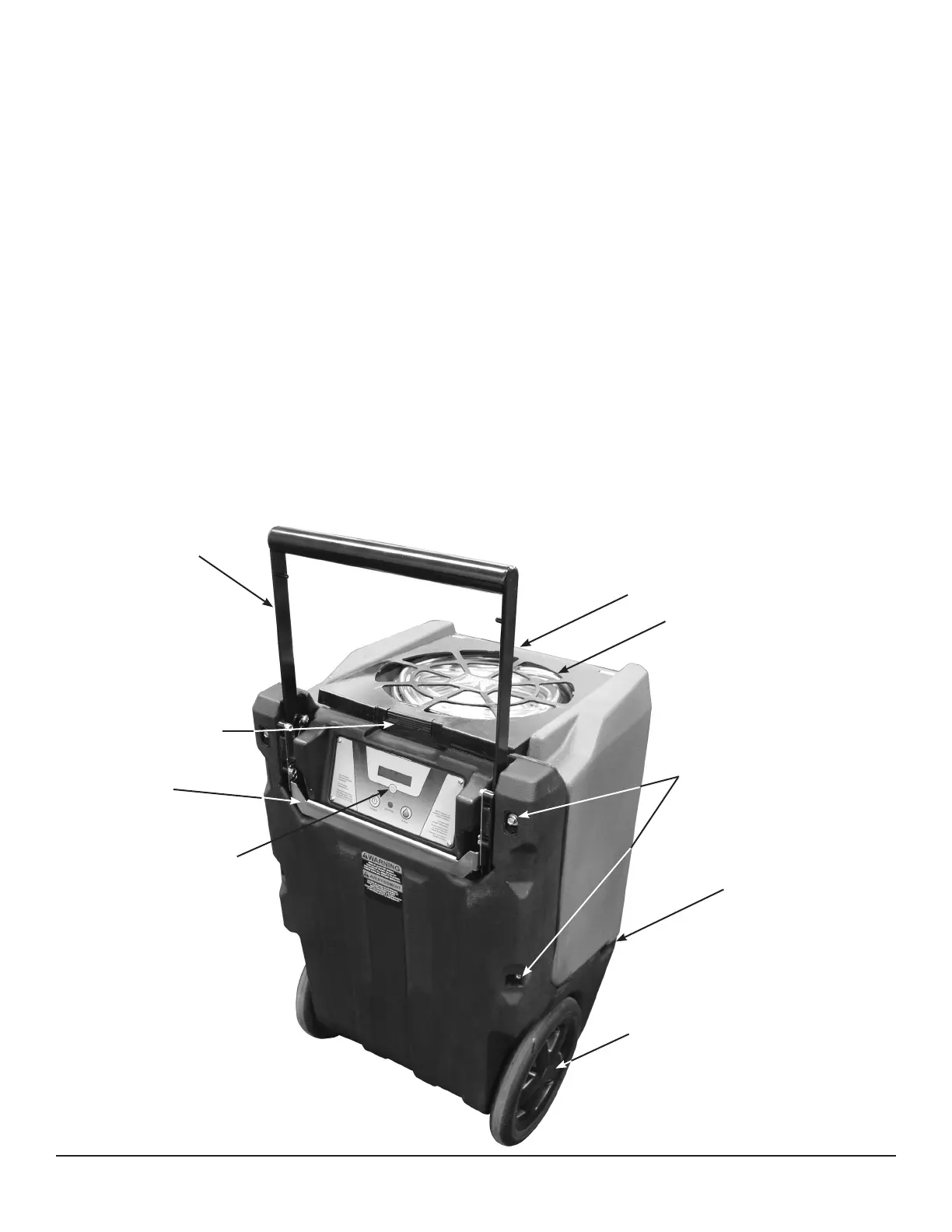

Item Description Qty Part No.
1 Top Cover 1 PH-4026977
2 Top Cover Catch 1 PH-4026979
3 Top Cover Hinge 2 PH-4026978
4 Hex Bolts, 1/4”–20 x 4” 4 1 PH-1154019
5 Hex Bolts, 1/4”–20 x 1.75” 2 PH-1154014
6 Handle Weldment 1 PH-4026344
7 Wheel, 12” 2 PH-4026851
8 Cotter Pin 2 PH-1284404
9 Filter, 2” x 12” x 12” 1 PH-4034798
10 Hose (1/4” ID x 33’ long) 1 PH-4024916
Item Description Qty Part No.
11 Coupling Body, 1/4” Tube 1 PH-4026306
12 Coupling Insert, 1/4” Tube 1 PH-4026986
13 Cord 1 PH-4032315
14 Control Board 1 PH-4034797
15 Capacitor, Compressor, 55 μF 1 PH-4033032-07
16 Capacitor, Impeller, 15 μF 1 PH-4033031-07
17 Thermistor 1 PH-4031279
18 Handle lever 1 PH-4026350
Description Qty Part No.
Compressor 1 PH-4029176
Evaporator Coil 1 PH-4033995-02
Condenser Coil 1 PH-4033996
Condensate Pump 1 PH-4034582-01
Float Safety Switch 1 PH-4034374
Description Qty Part No.
Impeller, Air Mover 1 PH-4026657
Exhaust Grill 1 PH-4026308
Wire Duct Collar 1 PH-4026309
Impeller Plate Bolt 4 PH-1154006
6 Service Parts
Items listed are not shown
Specifications subject to change without notice.
