Mounting Drain valve type Echtermann

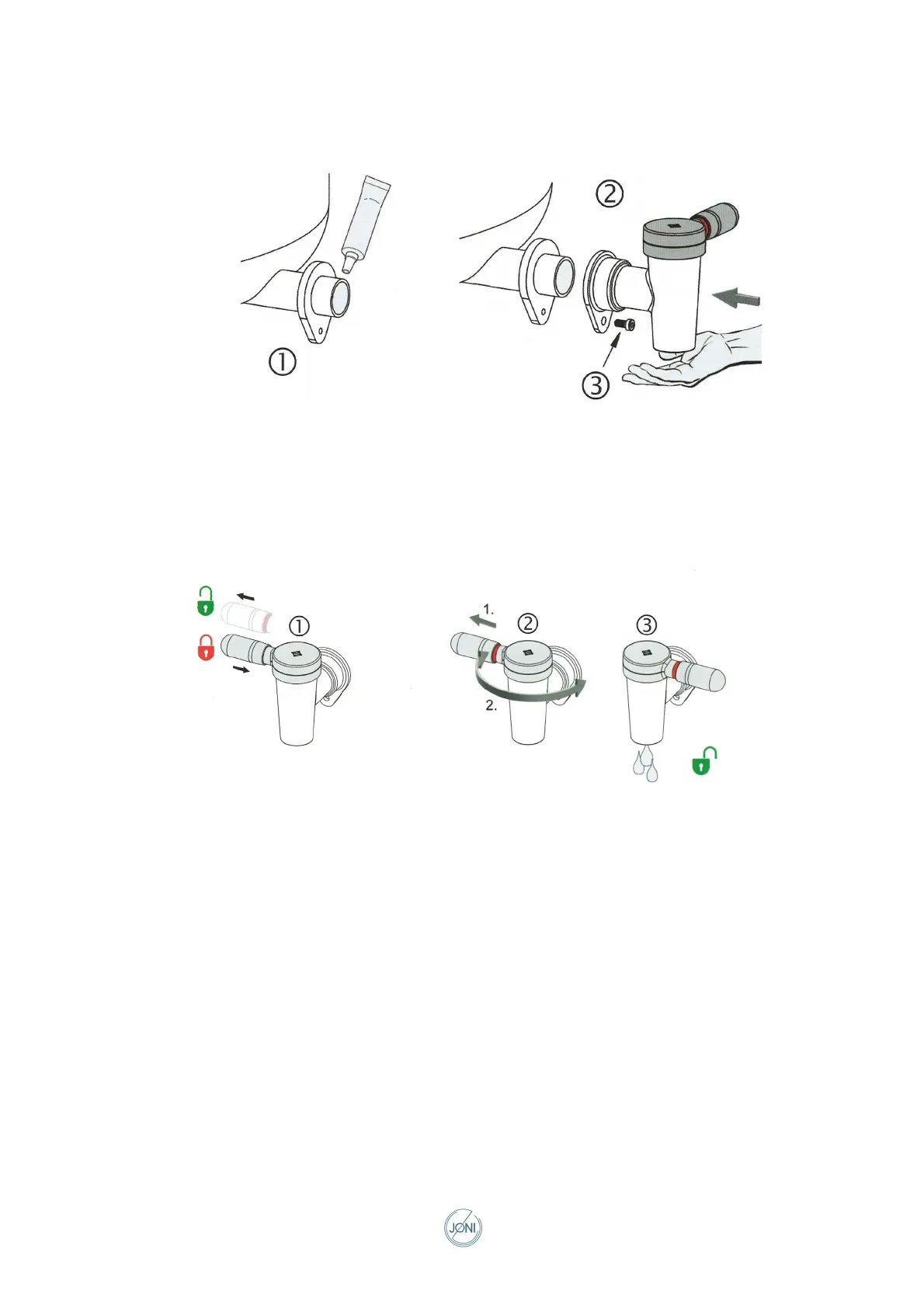

Fig. 0-31 Mounting Drain valve type Echtermann
1 Lubricate mounting stud with special fitting grease.
2 Mount the valve so that the outlet points vertically to the floor.
3 The valve is secured with an M8 bolt.
Operating drain valve type Echtermann
Fig. 0-32 Operating drain valve type Echtermann
1 The handle is pulled out to unlock the valve.
2 The Handle is turned 180° to open or close the valve.
3 The valve is shown in open position.
