Cleaning Drain valve type Echtermann

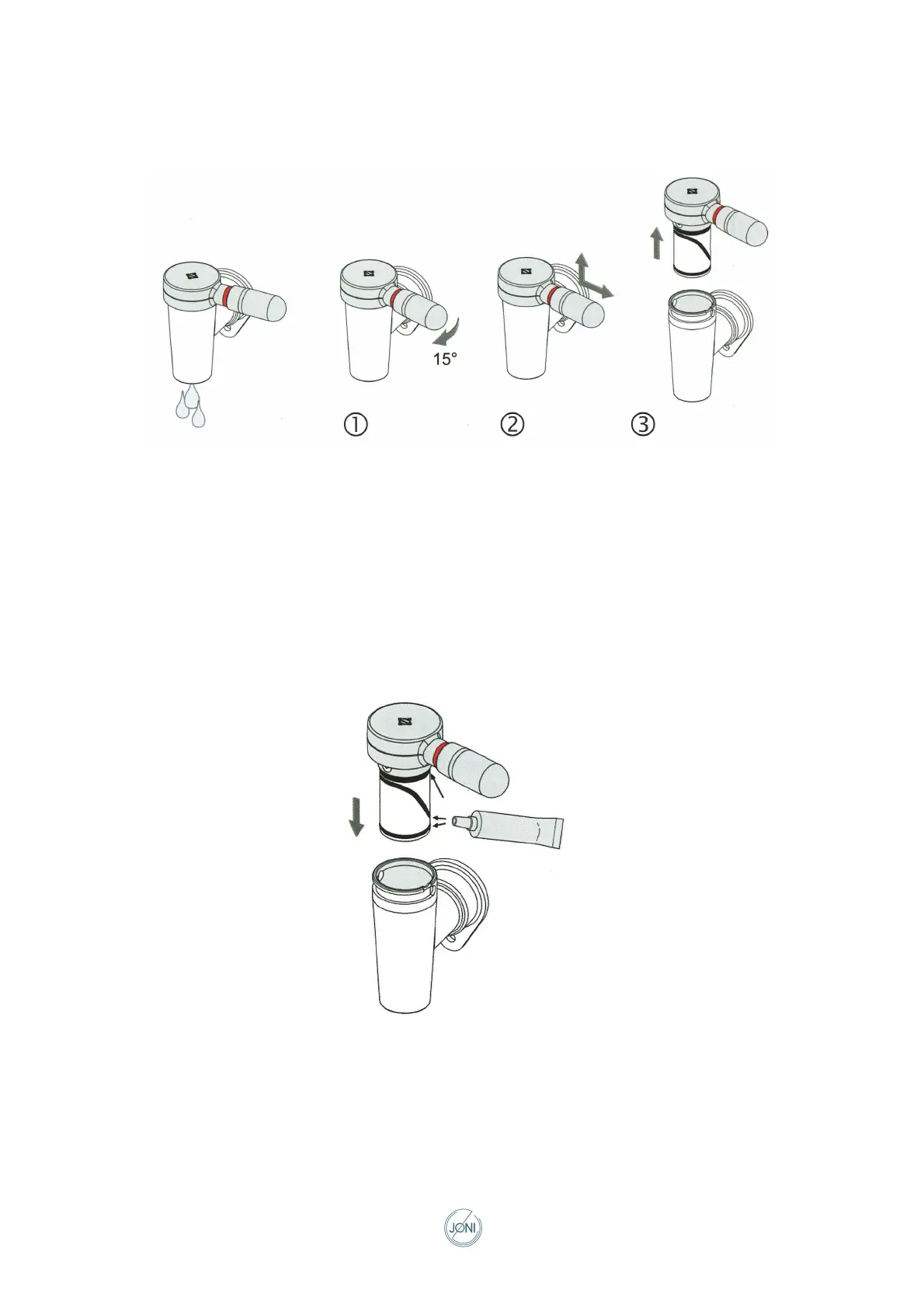

Fig. 0-39 Dismantle drain valve
1 The Handle on the open valve is turned 15°.
2 The handle is pulled outwards and upwards.
3 The insert is lifted out of the valve and is ready for cleaning.
The drain valve is assembled in reverse order of the above.
Lubrication drain valve type Echtermann
Fig. 0-40 Lubrication drain valve type Echtermann
The valve gaskets must be lubricated every time before use, with special fitting grease.
