Document 10000028013-DOC-000-00-EN
we know what‘s cooking

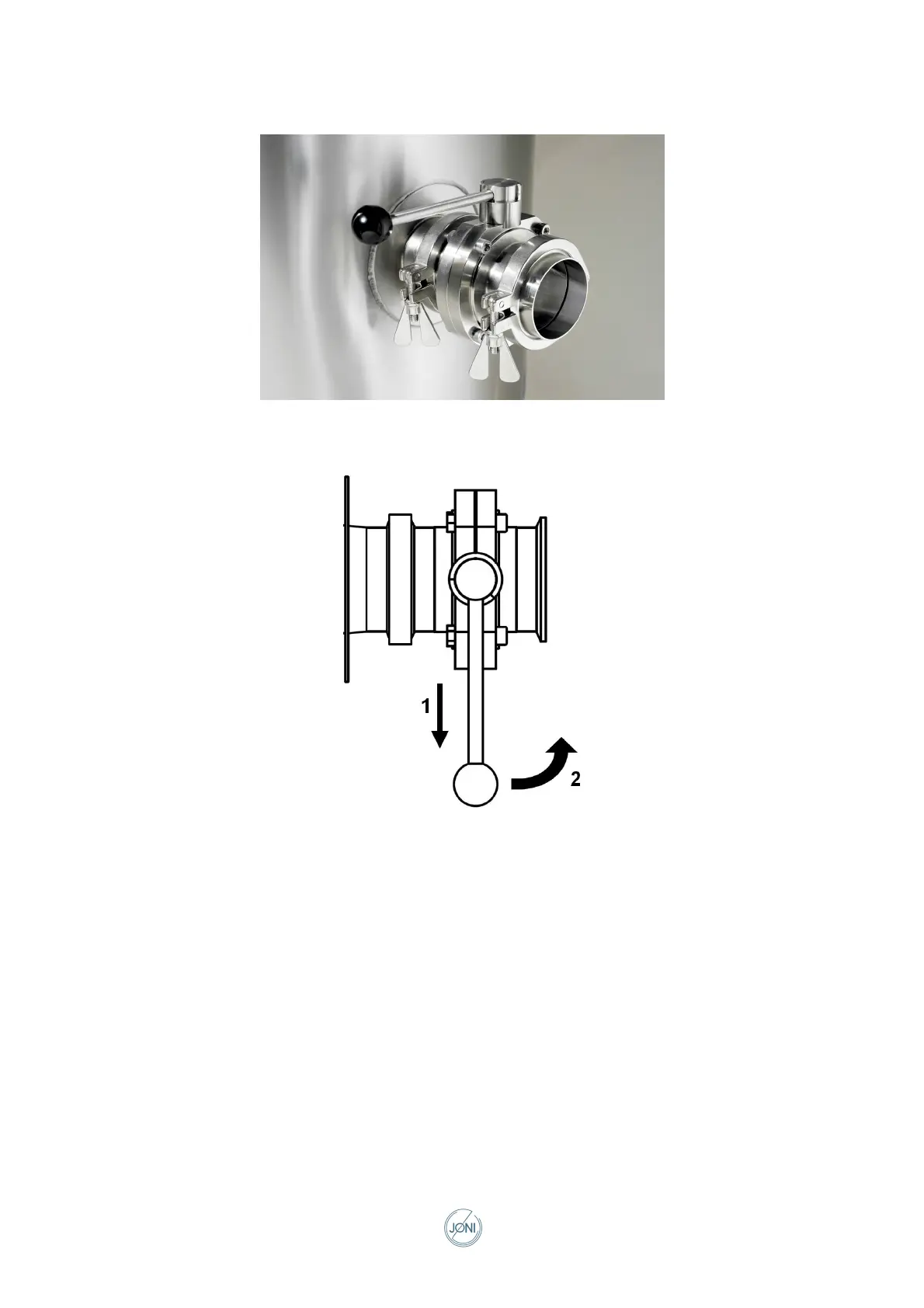

Fig. 0-34 Butterfly valve type ISO
Operate to open the butterfly valve
Fig. 0-35 Operate to open the butterfly valve
1 The handle is pulled out to unock the valve.
2 Handle is turned 90° away fom the kettle to open the valve and when the handle is released, then
the handle is locked.
