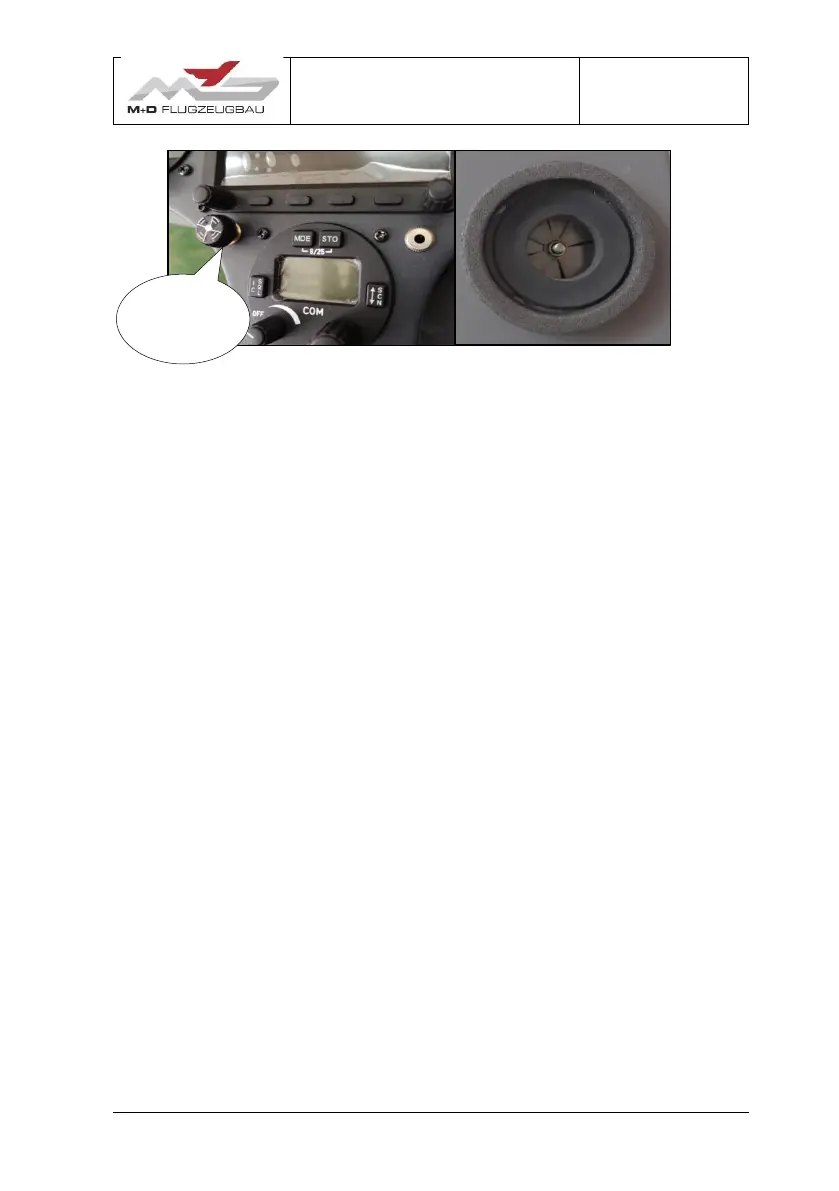

Figure 7.2-12: De-misting valve closed
The eyeball vent positioned on the right-hand cockpit sidewall is
manually adjustable to direct the airflow as desired. Closing the eye ball
with the ventilation open will still allow air to flow over the instrument
binnacle.
7.2.6.4 De-misting control (Electrical option)
For aircraft equipped with the ergonomic control system, the cabin
ventilation system is electrically adjustable via the ergonomic control
panel.
To adjust the ventilation, rotate the selector switch to select either the
eyeball vent or demisting function. Adjust the ventilation using the control
switch as follows:
• Up (+): Increases airflow
• Down (-): Decreases airflow
