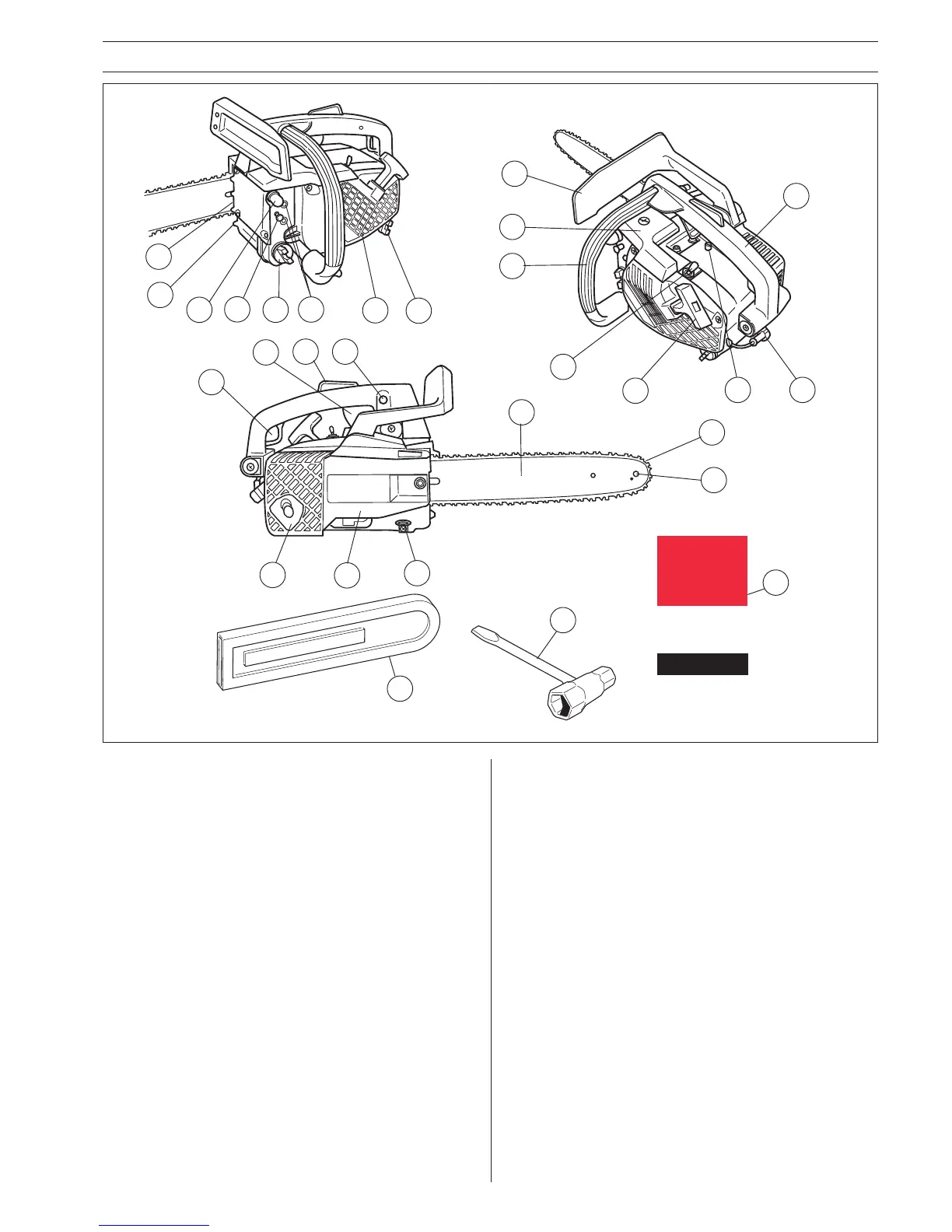

WHAT IS WHAT?
What is what?
1. Filter cover.
2. Front handle.
3. Front hand guard.
4. Starter cover.
5. Chain oil tank filler cap.
6. Starter handle.
7. Adjuster screw, carburettor.
8. Choke control.
9. Rear handle.
10. Spark plug.
11. Fuel tank filler cap.
12. Muffler.
13. Bar tip sprocket.
14. Saw chain.
15. Saw bar.
16. Bumper.
17. Chain catcher. Catches chain if it jumps or breaks.
18. Clutch cover.
19. Oil pump adjustment screw.
20. Throttle control.
21. Throttle lock. Prevents accidental operation of throttle
control.
23. Combination spanner.
24. Chain tensioning screw.
25. Operator's manual.
26. Bar guard.
27. Attachment loop for safety line.
28. Stop switch.
29. Start throttle lock.
30. Fuel pump.
1
24
30
11
8
7
4
5
3
2
28
6
19
9
27
10
20
29
21
12
18
17
15
14
13
16
