26 – English
ASSEMBLY
!
STOP
STOP
STOP
STOP
The chain is correctly
tensioned when there is no
slack on the underside of the
bar, but it can still be turned
easily by hand. Hold up the
bar tip and tighten the bar nut
with the combination wrench.
When fitting a new chain, the
chain tension has to be
checked frequently until the
chain is run-in. Check the
chain tension regularly. A
correctly tensioned chain
gives good cutting
performance and long lifetime.

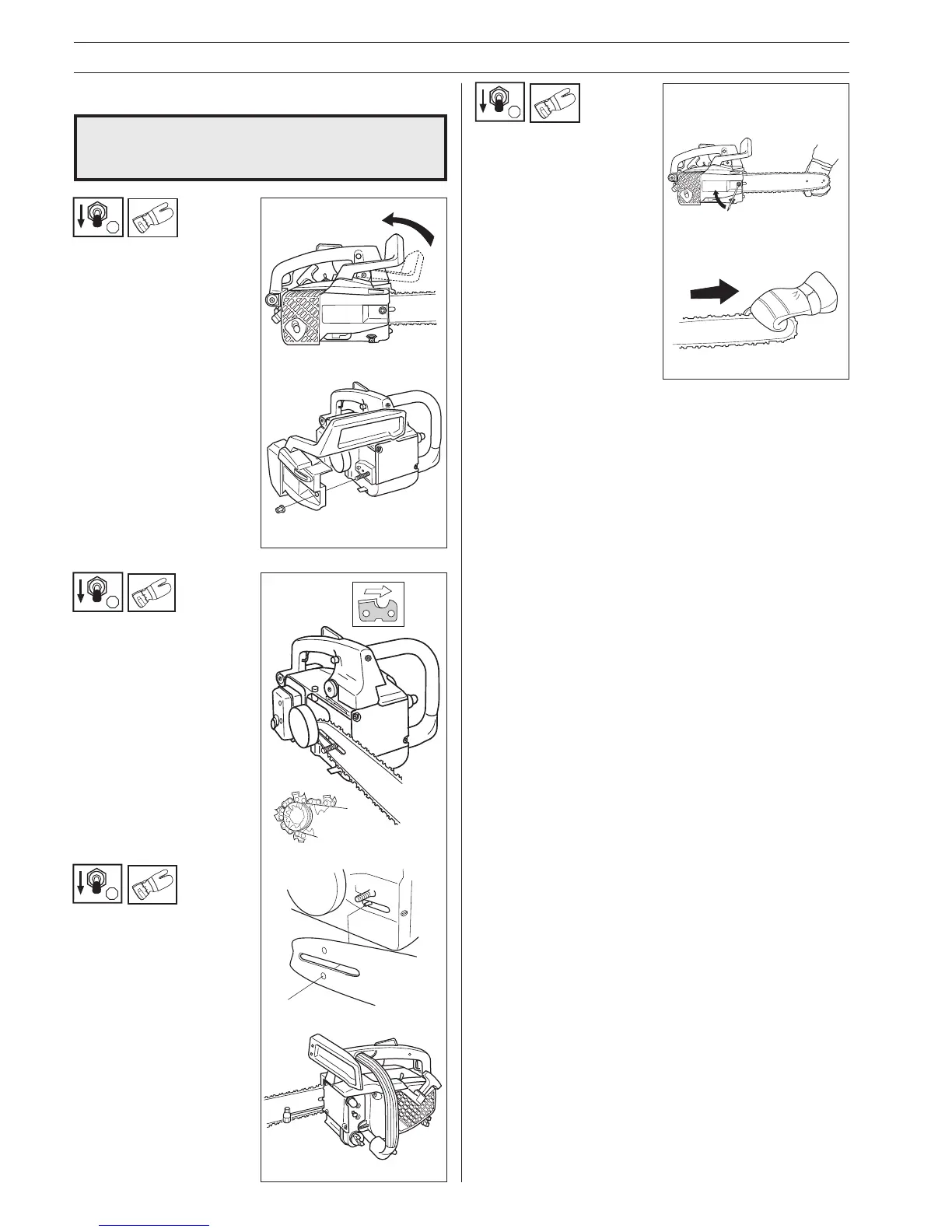

Mounting guide bar and chain
Fit the clutch cover and locate
the chain adjuster pin in the
hole on the bar. Check that
the drive links of the chain fit
correctly on the drive sprocket
and that the chain is in the
groove on the bar. Tighten the
bar nut finger tight.
Tension the chain by using
the combination wrench. Turn
the chain adjuster screw
clockwise. The chain should
be tensioned until it fits snugly
on the underside of the bar.
Fit the bar over the bar bolt.
Place the bar in its rearmost
position. Place the chain over
the drive sprocket and in the
groove on the bar. Begin on
the top side of the bar.
Make sure that the edges on
the cutting links are facing
forward on the top side of the
bar.
Always wear gloves, when working with the
chain, in order to protect your hands from
injury.
Check that the chain brake is
in disengaged position by
moving the front hand guard
towards the front handle.
Take off the bar nut and
remove the clutch cover.
