Jonsered 2036 Workshop Manual

110
8
505 38 17-09
502 50 30-14
502 50 30-13
Mod. 2077
Mod. 2083

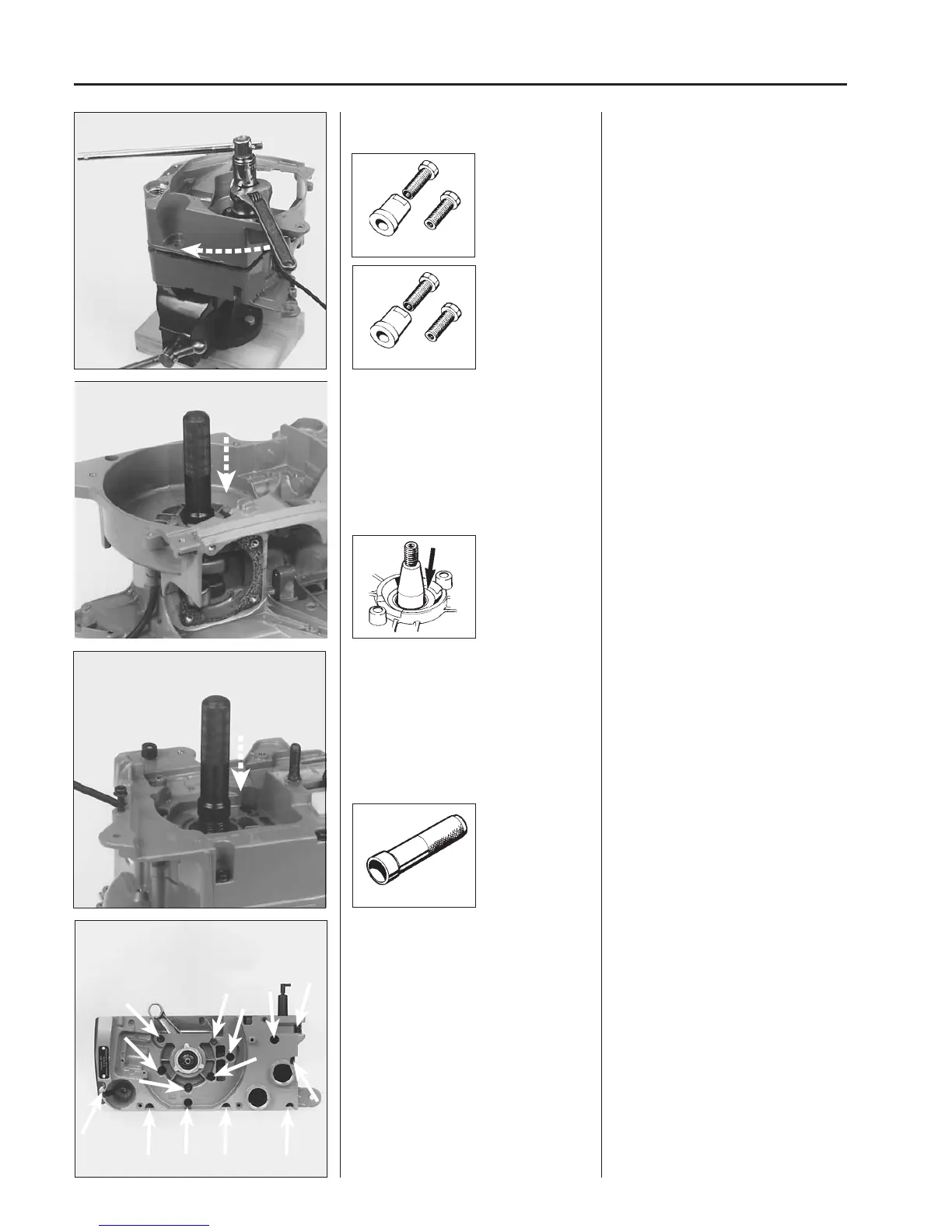

Press the crankcase halves together.
Crankshaft and crankcase
Check that the crankshaft rotates easily.
Fit a new sealing ring on the flywheel
side.
Fit the pump gear.
Mod. 2095
Crankcase
Dismantling
Remove the cylinder base gasket and all
the screws (14 pcs) which hold the
crankcase halves together.
Put the flywheel side’s crankcase half in
position and press the crankcase halves
together by means of tools 502 50 30-13
and 502 50 30-14.
Check that the crankcase gasket does
not move out of position.
Tighten all the crankcase screws.
Check that the crankshaft rotates easily.
Lubricate the shaft journal and fit a new
sealing ring on the flywheel side.
The plate mantle should be turned out-
wards.
Use mandrel 505 38 17-09.
Fit the pump pinion.
Apply grease on the ground part of the
pinion and press it down over the shaft
journal.
Use mandrel 505 38 17-09.
Mod. 2095
Crankcase
Dismantling
Dismantle all parts on the chain saw so
that only the crankcase and crankshaft
remain.
Remove the cylinder base gasket and all
the screws (14 pcs) which hold the
crankcase halves together.

Jonsered 2036 Specifications

General

Displacement	36.3 cm³
Power output	1.5 kW
Weight (excl. cutting equipment)	4.2 kg
Chain pitch	3/8"
Recommended bar length	35-40 cm
Vibration level	4.5 m/s²
