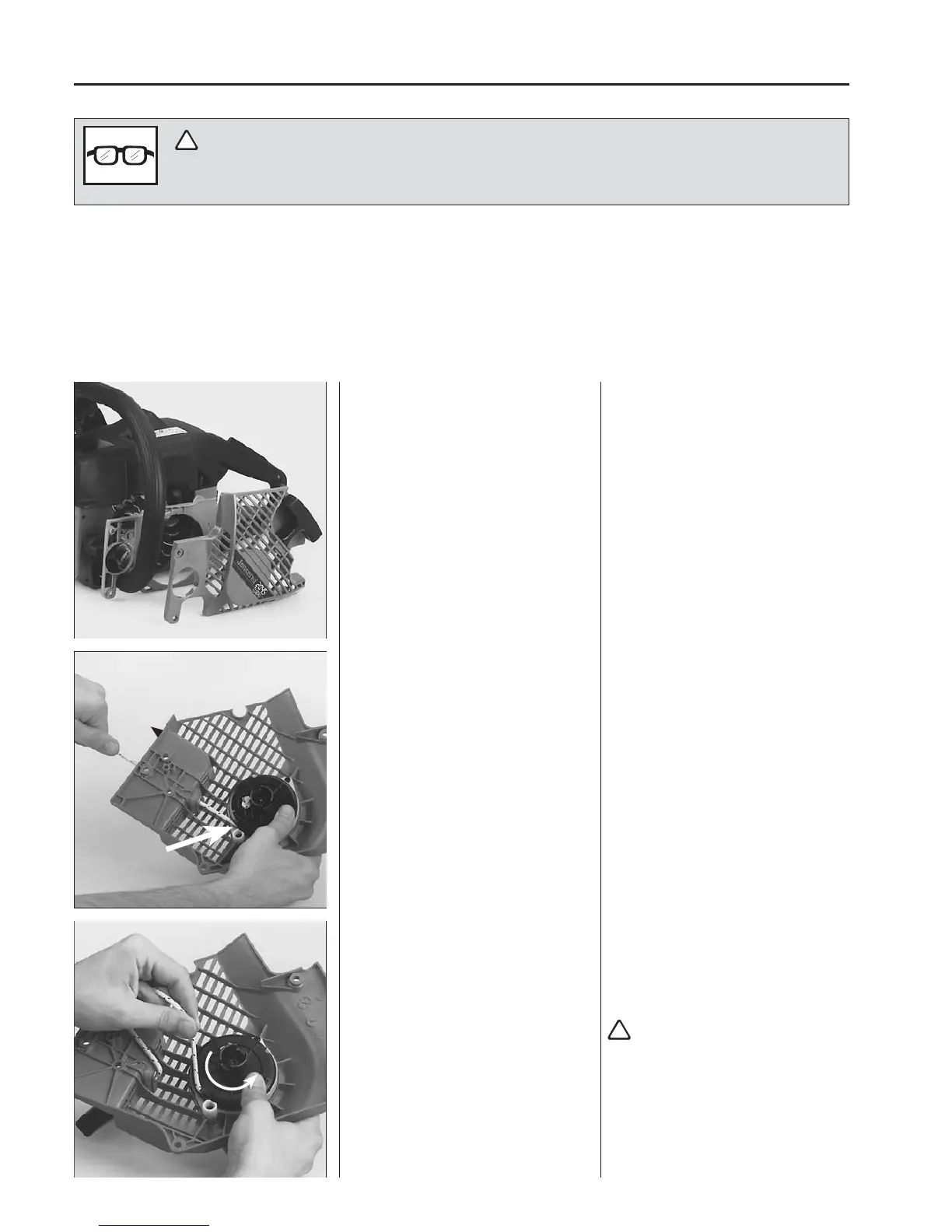

Starter unit
WARNING!
When working on the starter unit wear protective glasses to avoid eye injuries in the
event that the return spring flies out.
!
Dismantling
1. Dismantle the starter from the engine
unit.
Dismantling
1. Remove all screws and lift off the
starter.
2. Release the spring tension.
2. Release the spring tension.
Pull out the starter cord approx. 30
cm. Brake the cord wheel with the
thumb and place the cord in one of the
recesses on the pulley.
3. Allow the pulley to slowly rotate back-
wards.
3. Allow the pulley to slowly rotate back-
wards.
NOTE!
Brake the rotation with the thumb.
WARNING!
Observe care so that the thumb is not
injured by the reinforcement ribs on
the pulley or the cord's attachment
screw.
!
