Centrifugal clutch

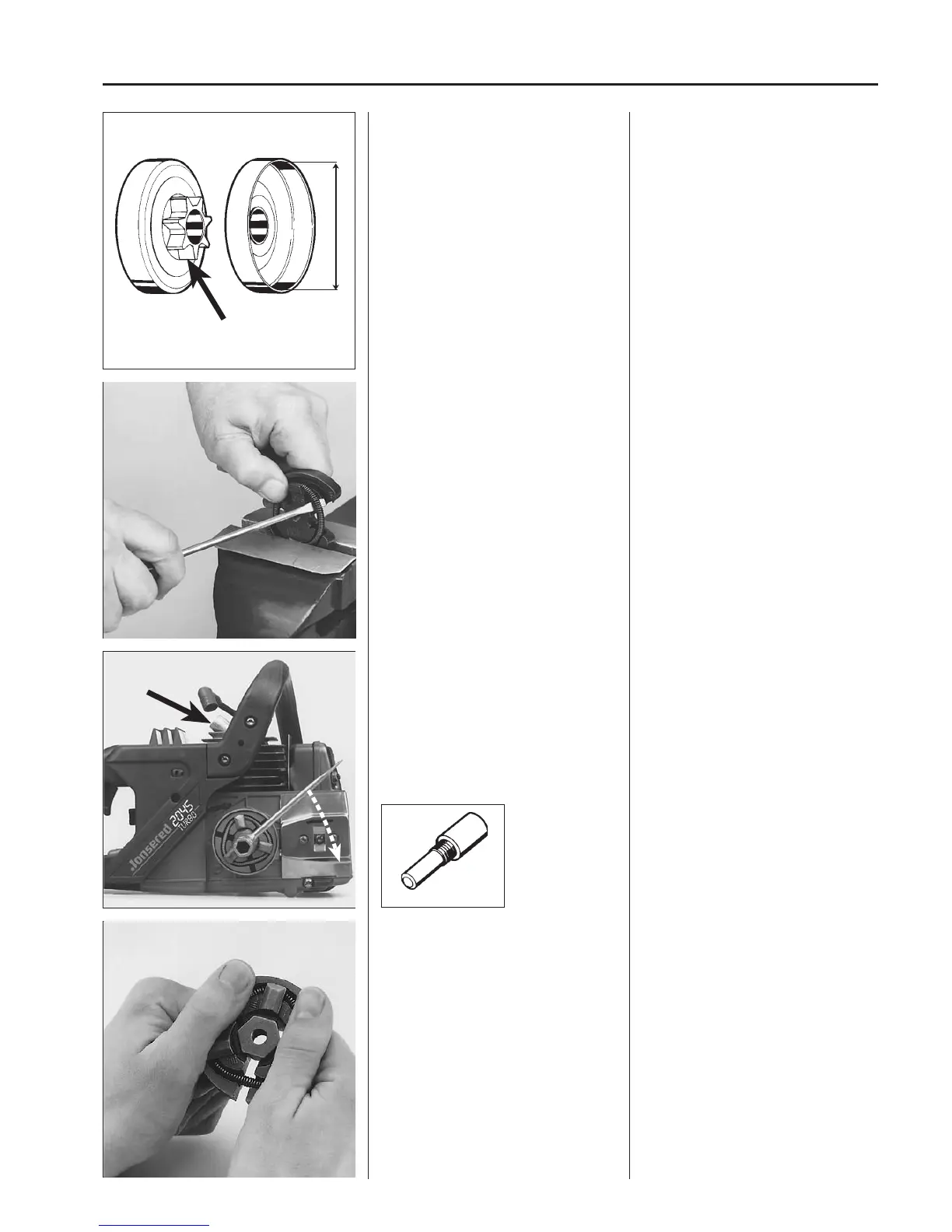

Inspect the wear on the clutch drum.
The inner diameter must not exceed 64.4
mm.
Fitting mod. 2036/2040
Fit the clutch and lubricate the clutch
drum’s needle bearing with grease.
Dismantling
mod. 2041/2045/2050
Dismantle the clutch from the crankshaft.
Take the clutch apart.
Lift off the clutch drum and inspect it for
wear on the drive wheel and friction sur-
face on the clutch shoes.
The drum’s inner diameter must not
exceed 64.4 mm.
Otherwise replace the clutch drum.
Fitting mod. 2036/2040
First place the clutch spring in position in
one clutch shoe. The spring’s coupling
point should be in the middle of the shoe.
Place the other clutch shoe on the hub
and fit the spring by using a screwdriver.
Lubricate the clutch drum’s needle bearing
with grease and fit the clutch on the
crankshaft.
NOTE!
Do not overload the spring.
Dismantling
mod. 2041/2045/2050
Replace the plug with piston stop No.
502 50 33-01 and dismantle the clutch
from the crankshaft.
Take the clutch apart by pressing the
clutch shoes backwards with your thumbs.
