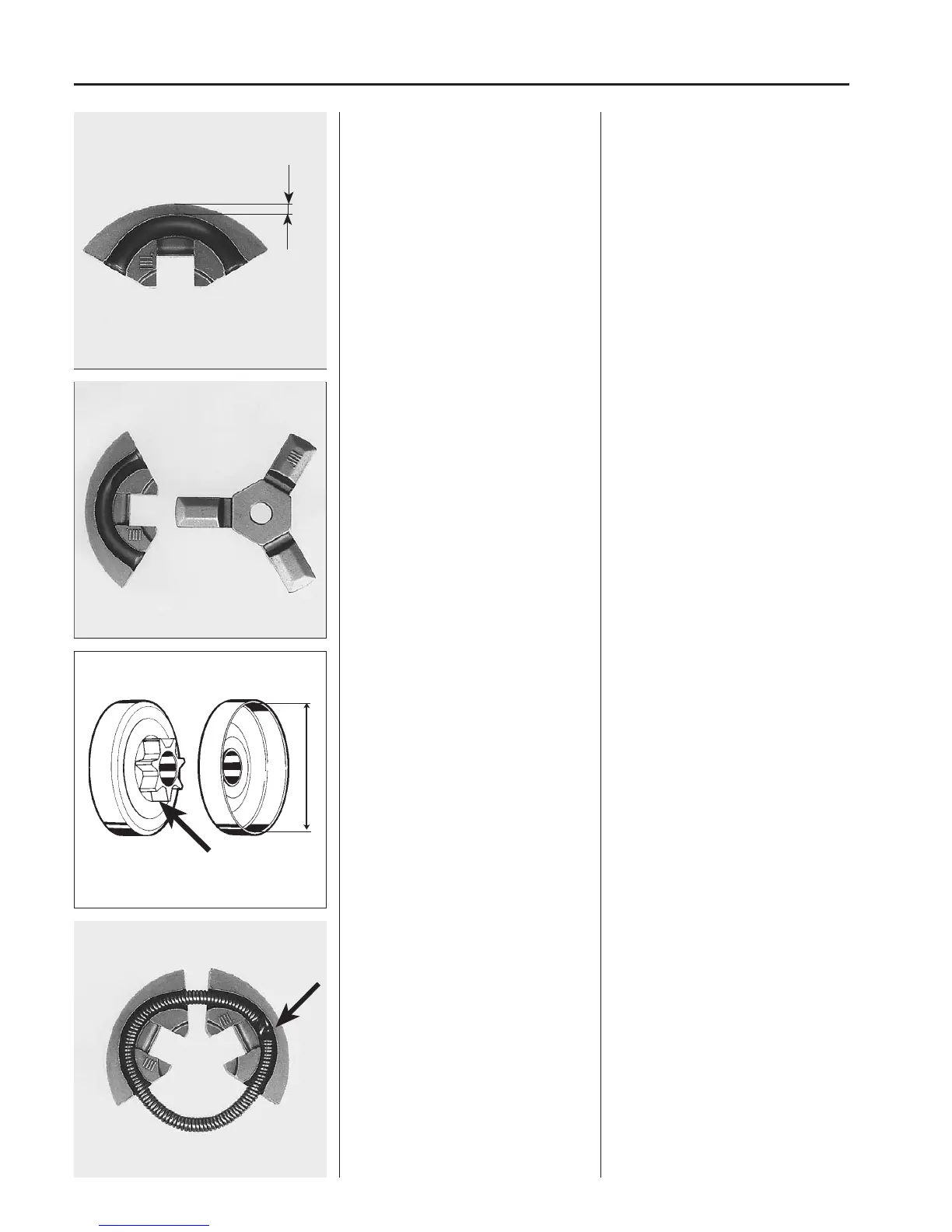

Centrifugal clutch
The clutch shoes must have a thickness
of at least 1 mm.
Check the spokes of the clutch centre
and the shoe guide grooves for wear.
Inspect the clutch drum for wear.
The inner diameter must not exceed 64.5
mm.
Fitting mod. 2041/2045/2050
The spring’s coupling point should lie
opposite the groove for the centre’s spo-
kes.
Check that the shoes have a thickness of
at least 1 mm at the most worn point.
All three shoes must be replaced at the
same time to avoid imbalance.
Check that the clutch centre’s spokes are
not severely worn or show signs of
cracking, and that the guide groove in the
clutch shoes is not worn. All the shoes
and the clutch centre must be replaced at
the same time.
Lift off the clutch drum and inspect it for
wear on the drive wheel and the clutch
shoe friction surfaces.
The inner diameter of the drum must not
exceed 64.5 mm.
Otherwise replace the clutch drum.
Fitting mod. 2041/2045/2050
When assembling the clutch the spring is
first placed in position in one clutch shoe
so that the spring’s coupling point comes
opposite the groove for the centre’s spo-
kes.
After this place a spring in another clutch
shoe.
