Jonsered CC2235 User Manual

English – 5
WHA T IS WHA T?

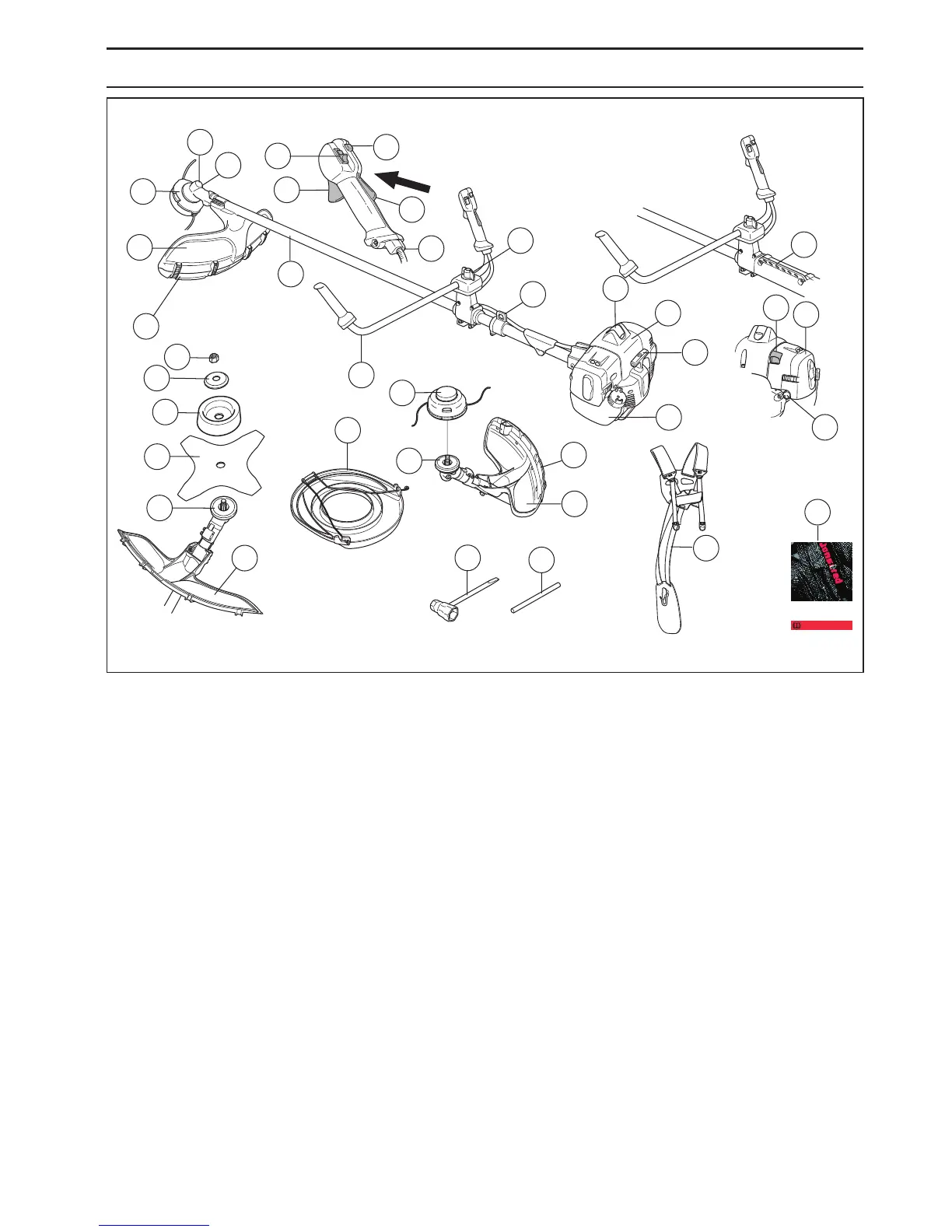

What is what on the brush cutter?
4
21
22
20
12
21
24
1
19
6
13
4
15
23
25
30
17
10
31
14
27
16
5
29
18
11
2
3
9
28
8
7
1
4
33
26
10
1 Trimmer head
2 Grease filler cap, bevel gear
3 Bevel gear
4 Cutting attachment guard
5 Shaft
6 Handlebar
7 Throttle control
8 Stop switch
9 Throttle lockout
10 Suspension
11 Cylinder cover
12 Starter handle
13 Fuel tank
14 Choke control
15 Air purge
16 Air filter cover
17 Handle adjustment
18 Locking nut
19 Support flange
20 Support cup
21 Drive disc
22 Blade
23 Operator’s manual
24 Transport guard
25 Locking pin
26 Harness
27 Spark plug cap and spark plug
28 Start throttle button
29 Adjusting screw for throttle cable
30 Spark plug spanner
31 Guard extension
