Jonsered CC2245 User Manual

6 – English

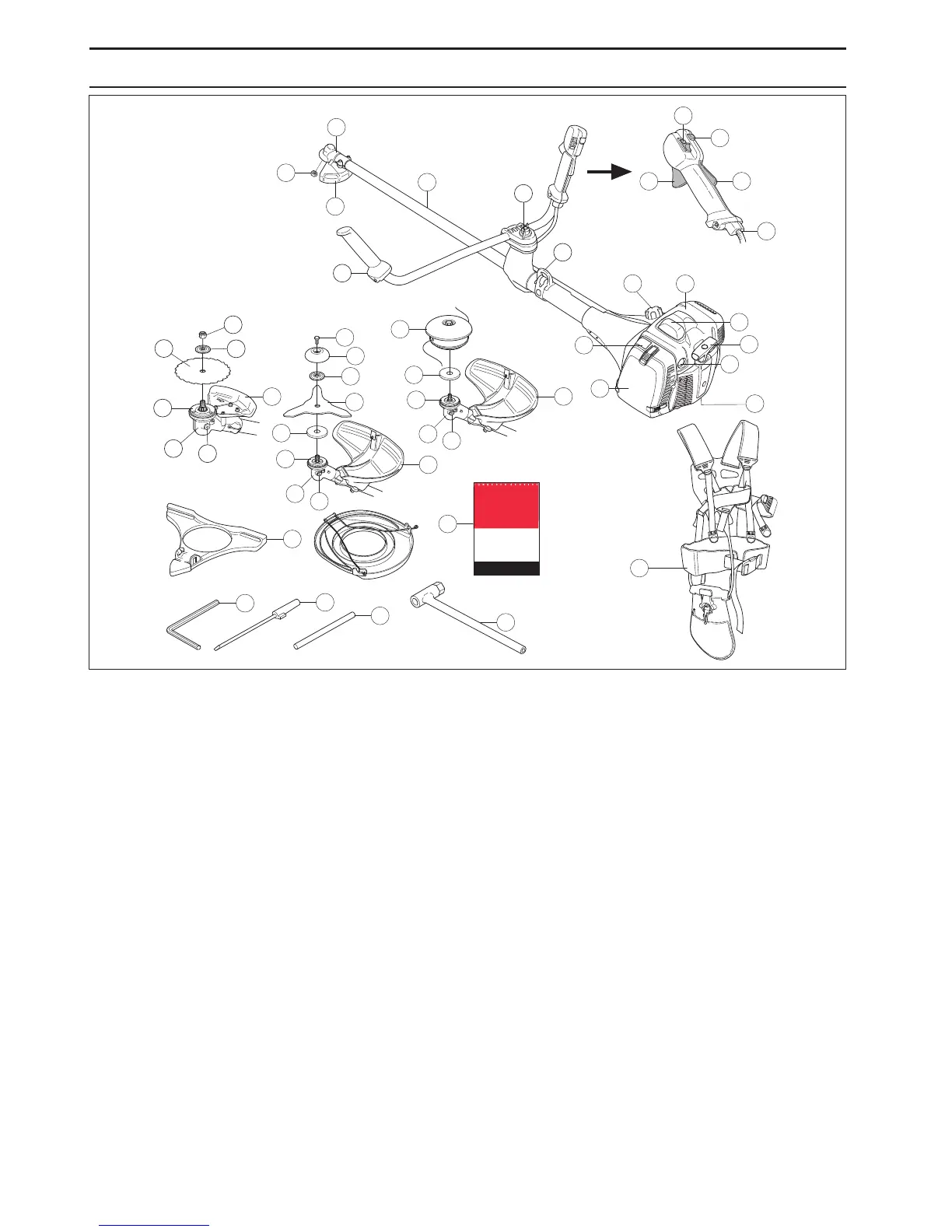

WHA T IS WHA T?
What is what on the brush cutter? (CC 2245)
1
2
3
26
27
28
3
5
4
22
24
33
9
32
8
7
18
20
19
21
4
1
31
21
29
34
34
2
3
2
4
11
30
25
13
12
14
16
15
23
35
3
4
6
10
17
31
20
21
1 Blade
2 Grease filler cap, bevel gear
3 Bevel gear
4 Cutting attachment guard
5 Shaft
6 Handlebar
7 Throttle control
8 Stop switch
9 Throttle lockout
10 Support eyes for harness
11 Cylinder cover
12 Starter handle
13 Fuel tank
14 Choke control
15 Air purge
16 Air filter cover
17 Handle adjustment
18 Locking screw
19 Support cup
20 Support flange
21 Drive disc
22 Trimmer head
23 Spark plug cap and spark plug
24 Socket spanner
25 Operator ′ s manual
26 Transport guard
27 Allen key
28 Carburettor screwdriver
29 Locking pin
30 Harness
31 Locking nut
32 Start throttle button
33 Adjusting the throttle wire
34 Metal cup
35 Rating plate

Jonsered CC2245 Specifications

General

Brand	Jonsered
Model	CC2245
Category	Brush Cutter
Language	English
