Jonsered CS 2145 Workshop Manual

English – 11
Construction and function

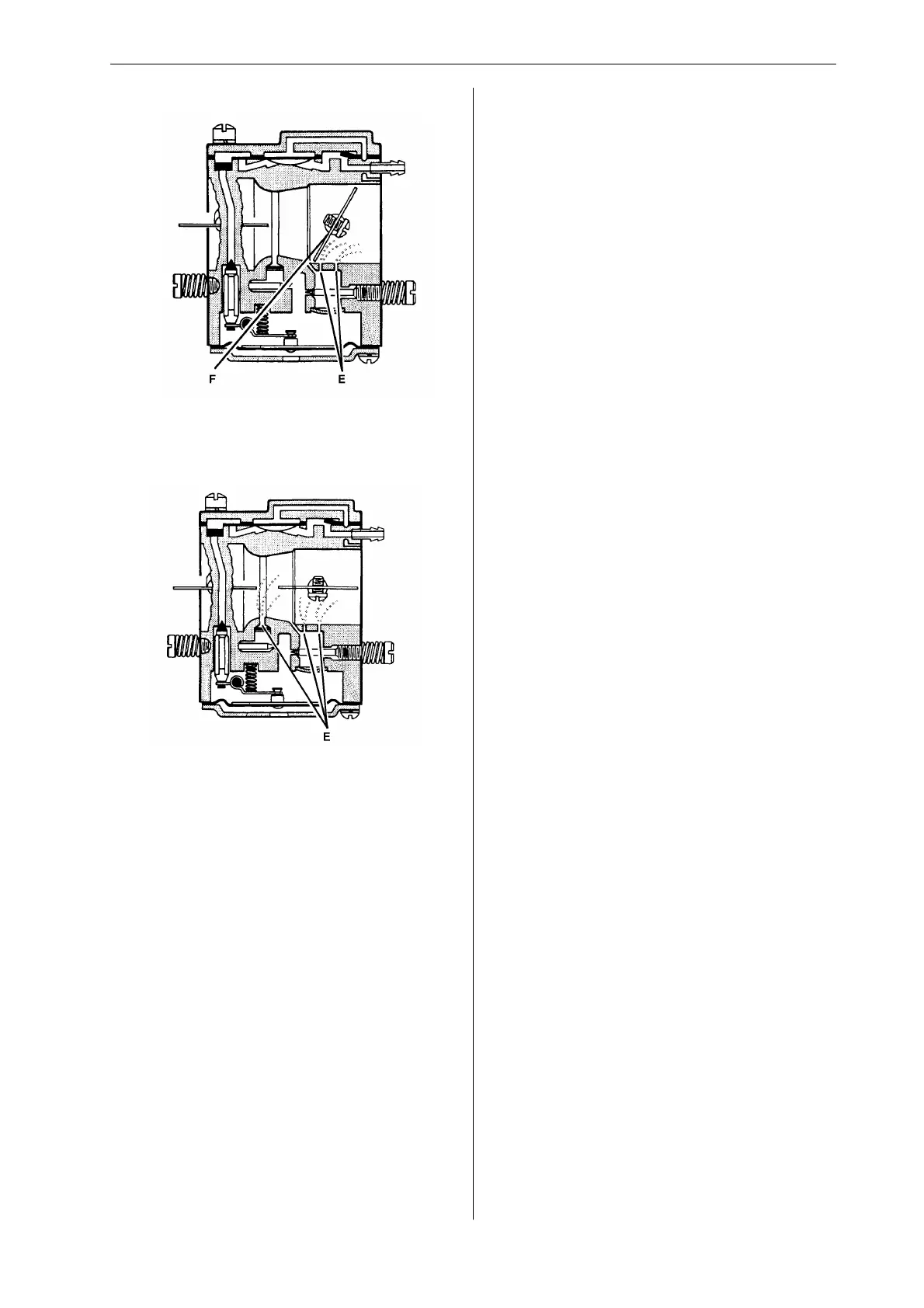

In part throttle mode the throttle valve (F) is par-
tially open. Fuel is supplied through the diffuser
jets (E).
In full throttle mode both valves are open and fuel
is supplied through all the diffuser jets (E).

Jonsered CS 2145 Specifications

General

Engine Power	2.1 kW
Weight	4.9 kg
Oil Tank Volume	0.26 liters
Bar Length	13-18 inches
Chain Pitch	0.325 inches
Chain Gauge	0.05 inches
Cylinder Displacement	45 cm³
