English – 51

Repair instructions

Crankcase and crankshaft –

dismantling CS 2147, CS 2149,

CS 2152, CS 2156, CS 2159

Remove the following:

• guide bar and chain

• clutch cover

• cylinder cover

• starter assembly*

• ignition system*

• generator*

• centrifugal clutch*

• oil pump*

• bark rest

• chain tensioner

• throttle pushrod

• carburettor*

• carburettor base

• silencer*

• piston and cylinder*

• fuel tank*

* See special instructions.

NOTE!

Take care to prevent dirt or foreign parti-

cles getting into the bearings.

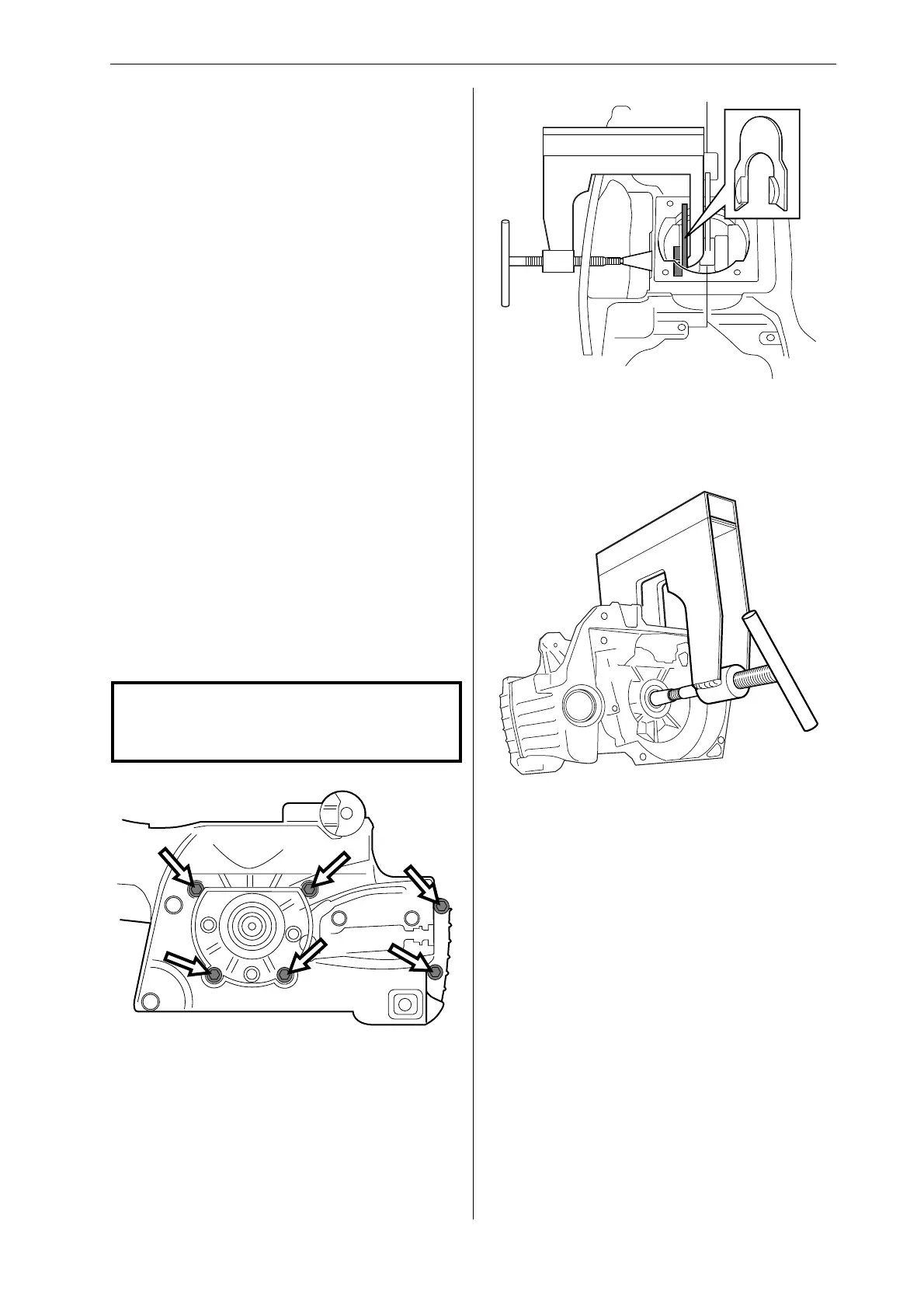

Unscrew the 6 bolts that hold the crankcase to-

gether.

Press the crankshaft out of the ﬂ ywheel side of the

crankcase using tool 502 51 61-01.

Do the same on the clutch side without using stop

plate 502 54 18-01.

Split the crankcase with the aid of tool 502 51 61-

01 (A) and stop plate 502 54 18-01 (B), working

from the ﬂ ywheel side of the saw.
