18 – English
Repair instructions

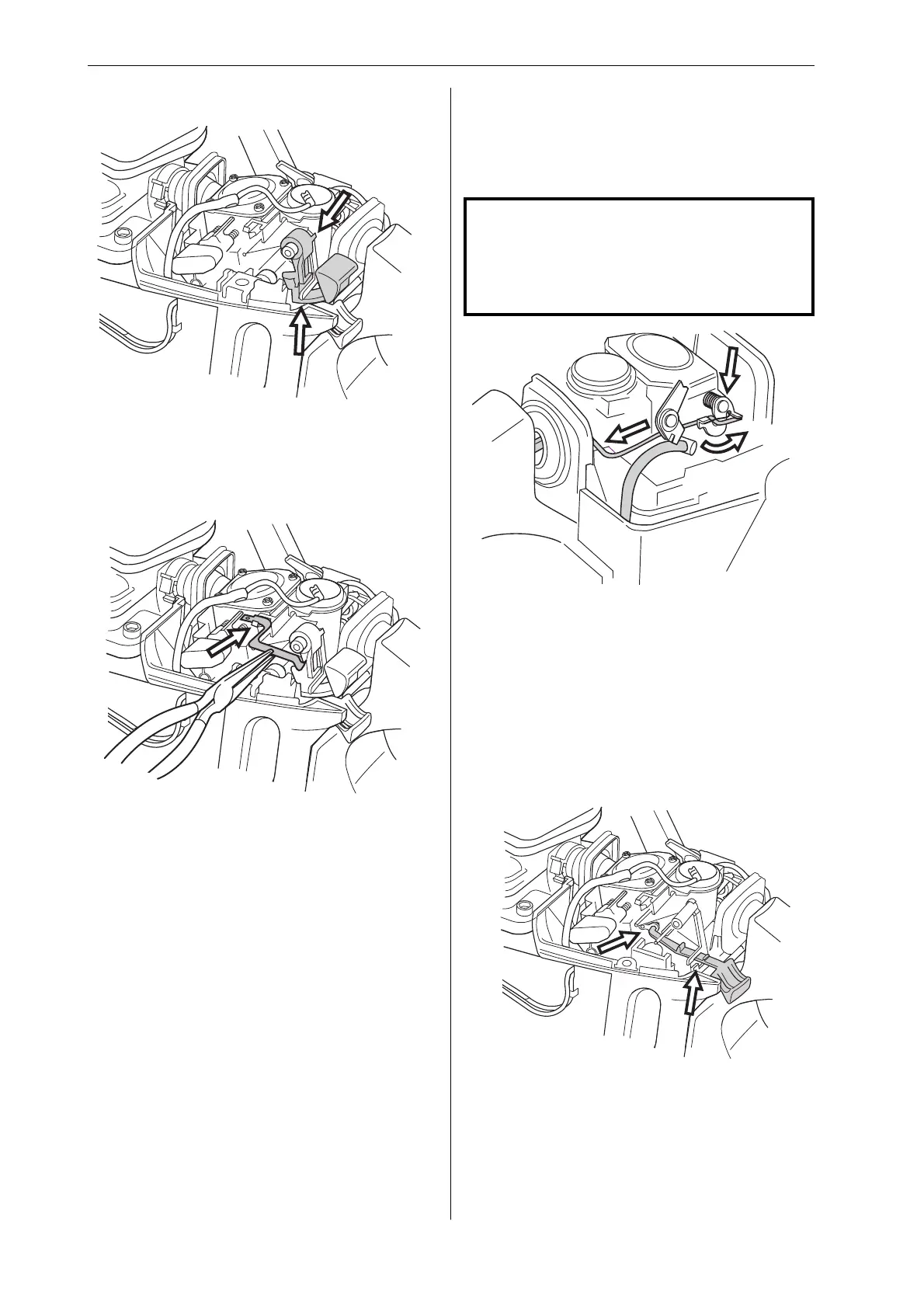

Choke control – removal
1
Remove the cylinder cover, air fi lter and stop
switch. Disconnect the fuel hose from the carburet-
tor.
Stop switch – refi tting
1
Carefully press the new stop switch into place.
Check that the switch’s upper mounting clips over
the air fi lter holder.
2
Refi t the stop plate. Engage the stop plate in the
front slot fi rst then lift the rear edge onto the stop
switch. Slide the stop plate in as far as it will go.
3
Refi t:
• the leads to the stop plate and stop switch
• air fi lter
• cylinder
Disconnect the pushrod from the carburettor by fi rst
carefully prising up the spring over the end of the
rod, where it connects to the throttle lever (A). Then
press the throttle lever forwards (B) while pressing
the throttle pushrod backwards (C) and lifting it off
the lever. Withdraw the throttle pushrod from the
tank and lift it upwards without pulling it through the
rubber inlet manifold. Carefully release the carbu-
rettor assembly from the right-hand rubber mount-
ing and lift it upwards.
NOTE!
Do not use knurled pliers to disconnect
or reconnect the fuel hose. This could
damage the hose and lead to leakage or
fracture.
Compress the clip that holds the choke control to
the carburettor while pulling it out at the same time.
Disconnect the choke control from the air fi lter
holder.
3
C
A
B
2
