Jonsered CS 2145 Workshop Manual

English – 39

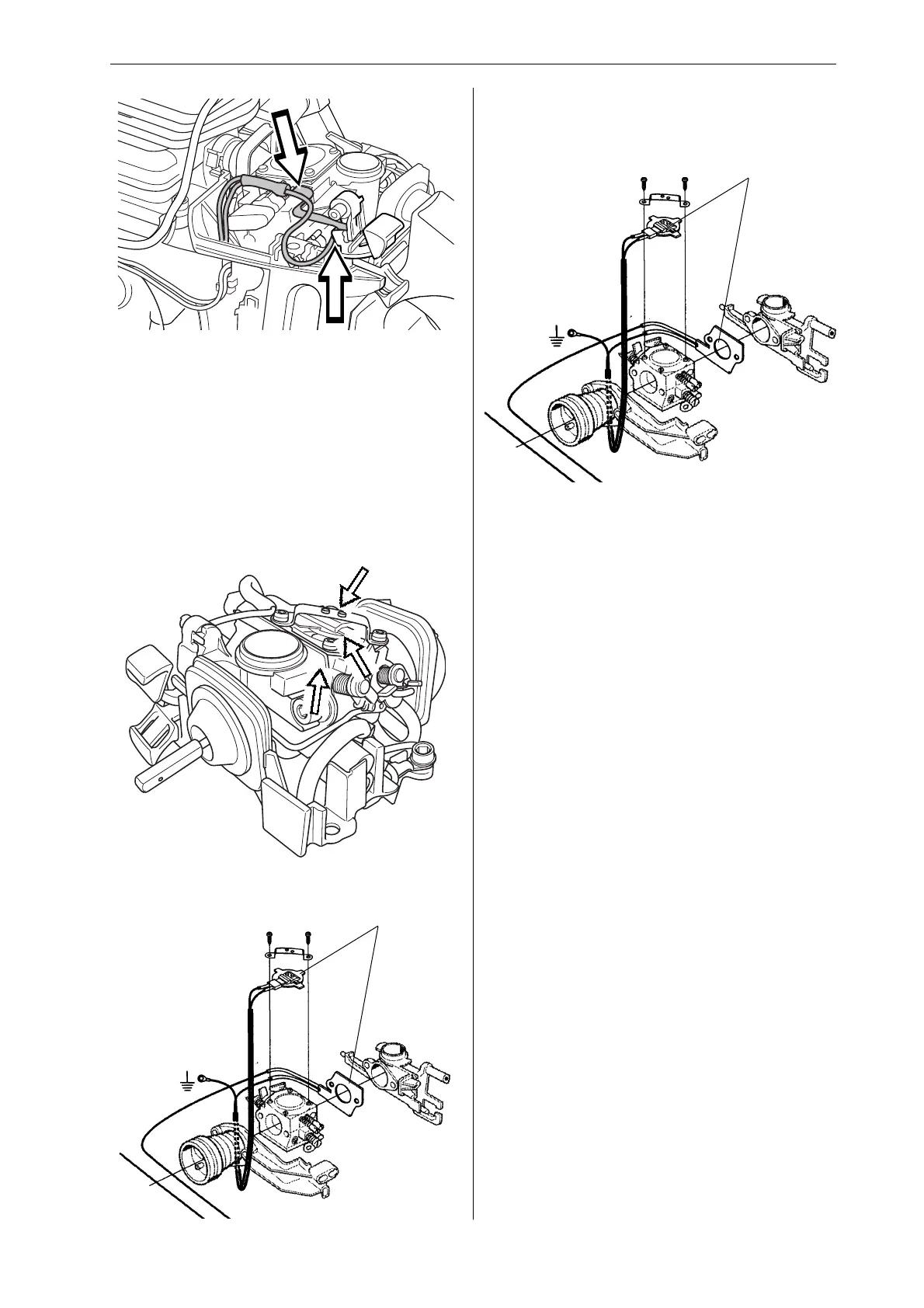

Repair instructions
2
Disconnect the leads from the carburettor heater
and remove the heating element.
Heating element
Carburettor heater CS 2147 H,
CS 2149 H, CS 2152 H, CS 2156 H,
CS 2159 H – Refi tting
Heating element
1
Fit the heating element between the air fi lter con-
nection and the carburettor as well as above the
carburettor.
2
Tighten the bracket above the carburettor using the
two bolts.
3
Connect the leads to the carburettor heater.
Refi t:
• carburettor
5
Connect the leads to the stop switch.
Carburettor heater CS 2147 H,
CS 2149 H, CS 2152 H, CS 2156 H,
CS 2159 H –Removing
Remove:
• carburettor
1
Remove the two screws from the clip above the
carburettor.

Jonsered CS 2145 Specifications

General

Engine Power	2.1 kW
Weight	4.9 kg
Oil Tank Volume	0.26 liters
Bar Length	13-18 inches
Chain Pitch	0.325 inches
Chain Gauge	0.05 inches
Cylinder Displacement	45 cm³
