Jonsered CS 2145 Workshop Manual

40 – English
Repair instructions

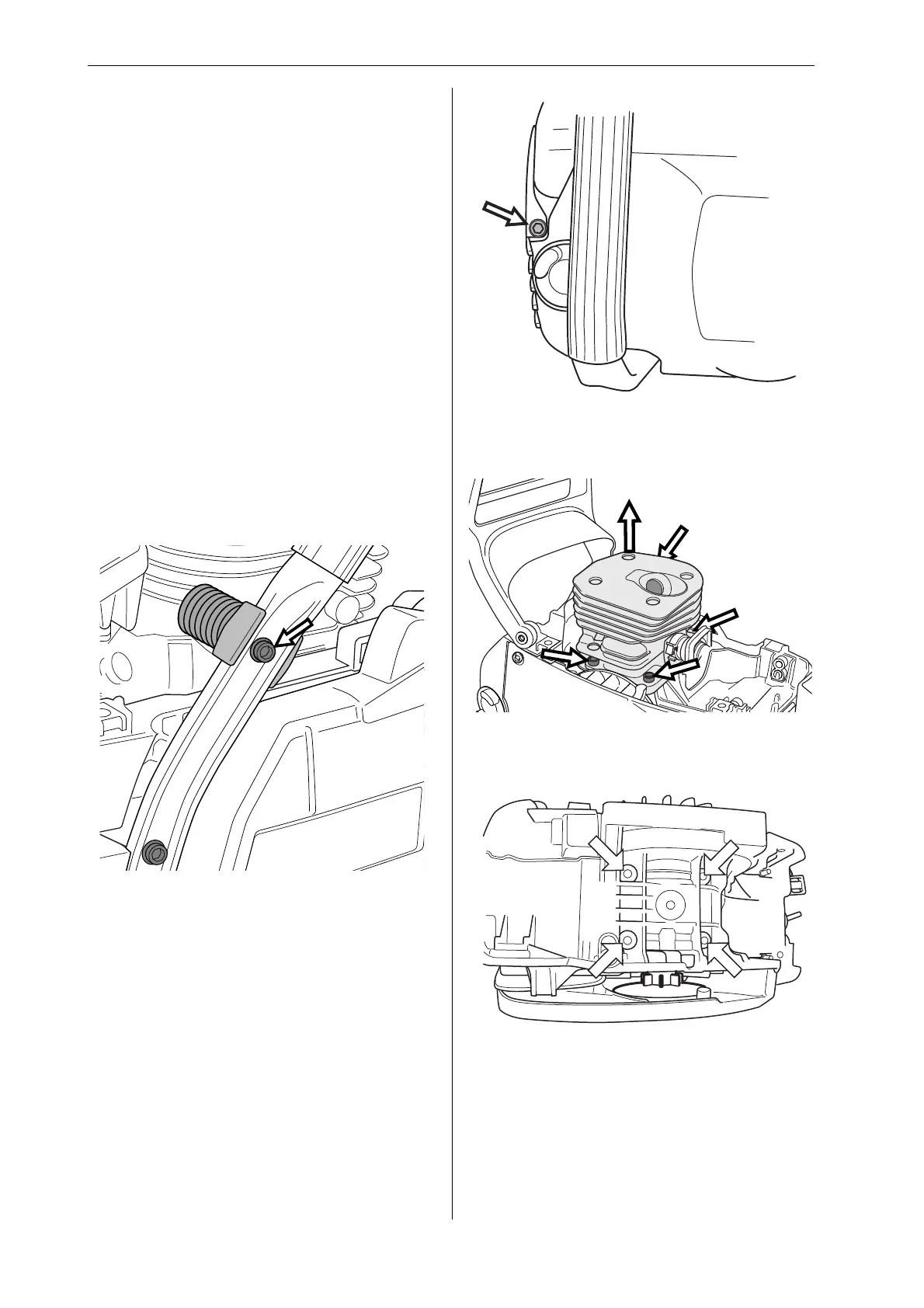

Unscrew the four cylinder bolts. Lift up the cylinder
so that the intake system insulating plate is free of
the crankcase.
3
Unscrew and remove the bolt from the silencer
support.
4
On models CS 2141 and CS 2145 there are cylin-
der bolts on the underside.
Air intake system – removal
The air intake system comprises:
• inlet manifold
• insulating plate with clip
• carburettor fl ange
• impulse hose
• support ring
1
Remove:
• cylinder cover
• air fi lter
• carburettor
• HT lead
• starter assembly (CS 2141, CS 2145)
• Fuel tank (CS 2141, CS 2145)
2
Unbolt the vibration damping spring between the
cylinder and hand grip.

Jonsered CS 2145 Specifications

General

Engine Power	2.1 kW
Weight	4.9 kg
Oil Tank Volume	0.26 liters
Bar Length	13-18 inches
Chain Pitch	0.325 inches
Chain Gauge	0.05 inches
Cylinder Displacement	45 cm³
