English – 37

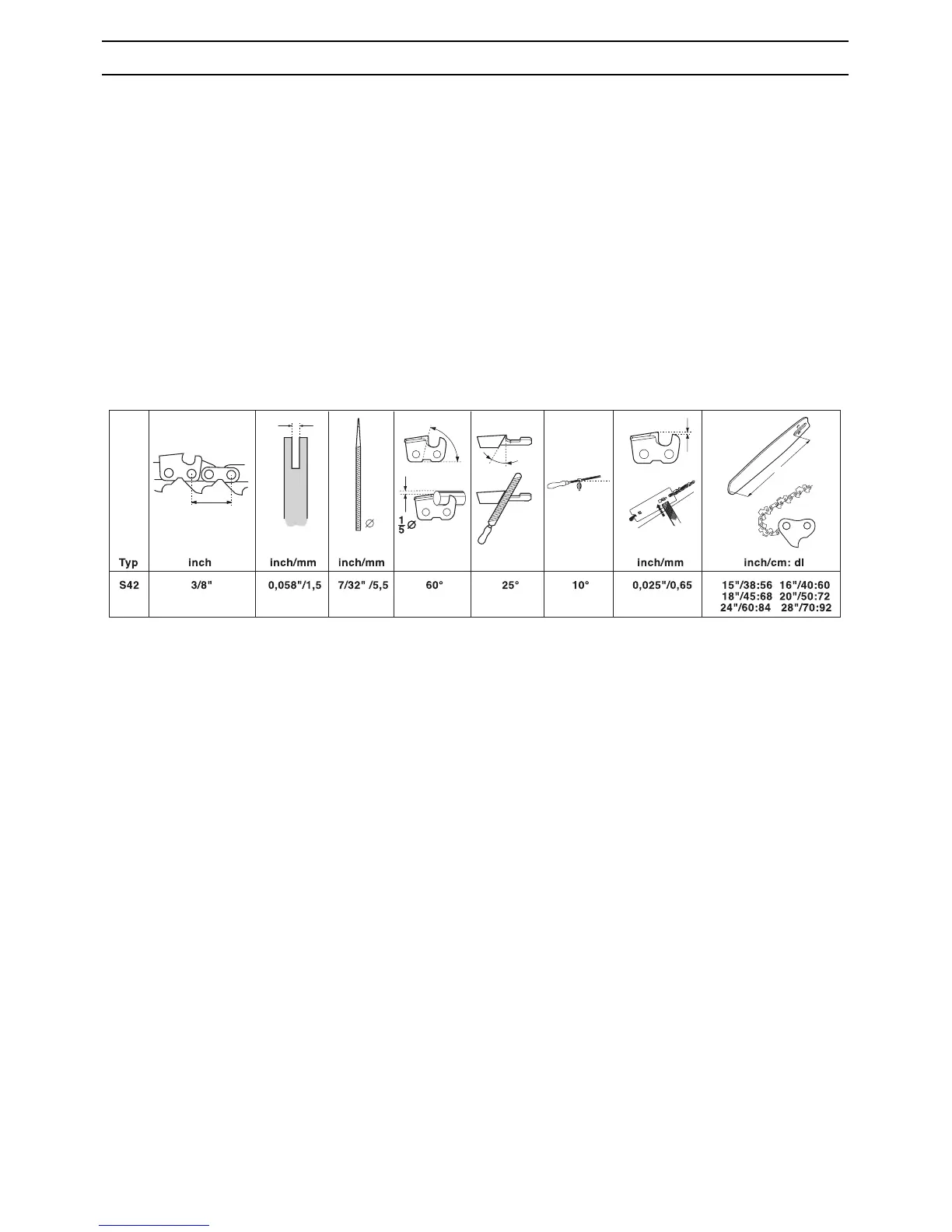

TECHNICAL DATA
Bar and chain combinations
The following combinations are CE approved.
Bar Chain
Length, inches Pitch, inch
Max. number of teeth on
tip sprocket
15 3/8 11T Jonsered S42
16 3/8 11T Jonsered S42
18 3/8 11T Jonsered S42
20 3/8 11T Jonsered S42
24 3/8 11T Jonsered S42
28 3/8 11T Jonsered S42
D
2
L
_
D
PITCH =
