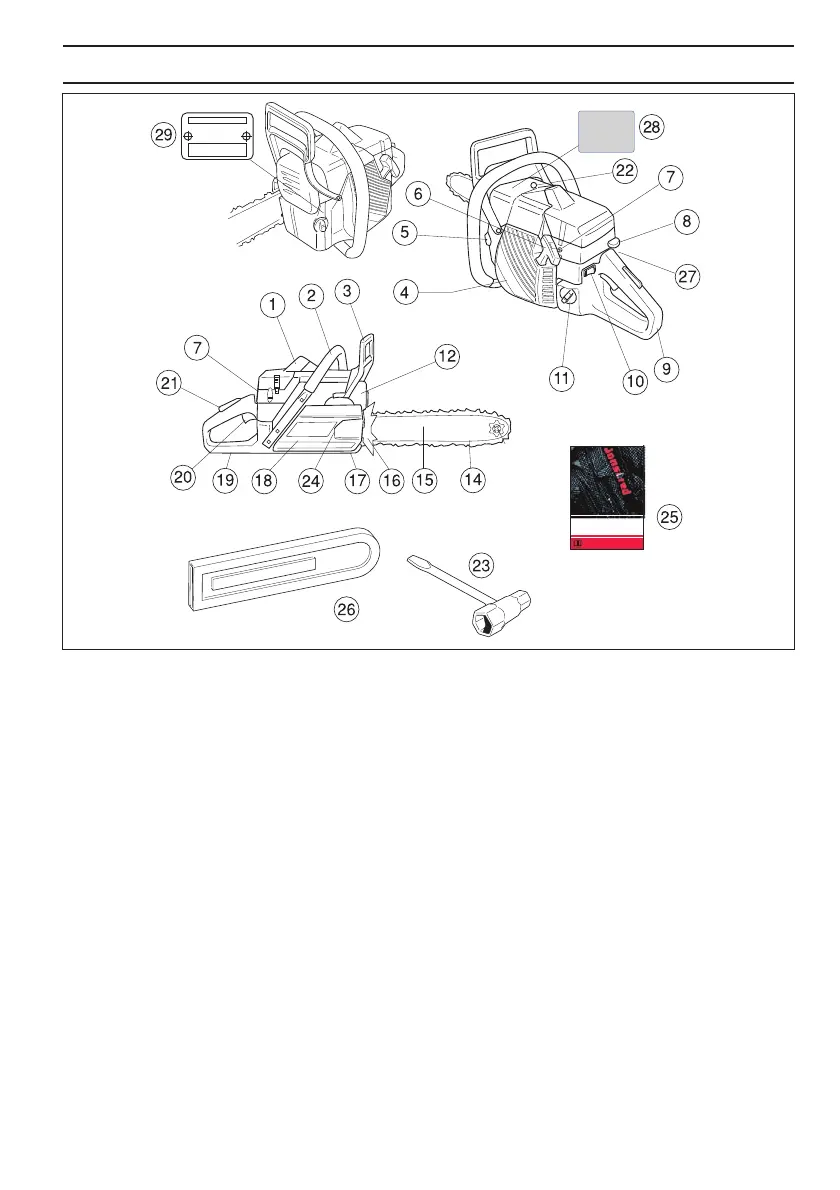

What is what on the c
hain saw?
JONSERED SERVICE
Jonsered XXXX
Jonsered
Huskvarna, SWEDEN
XXXX
XXXXXXX
1
Cylinder cover
2 Front handle
3 Chain brake and front hand guard
4 Starter
5 Chain oil tank
6 Starter handle
7 Adjuster screws carburettor
8 Choke control/Start throttle lock
9 Rear handle
10 Stop switch (Ignition on/off switch.)
11 Fuel tank
12 Muffler
13 Bar tip sprocket
14 Chain
15 Bar
16 Spike bumper
17 Chain catcher
18 Clutch cover
19 Rear handle with right hand guard
20 Throttle control
21 Throttle lockout
22 Decompression valve
23 Combination spanner
24 Chain tensioning screw
25 Operator
′
s manual
26 Transport guard
27 Switch for heated handle (CS 2172WH)
28 Information and warning decal
29 Product and serial number plate
