Introduction
Operator's manual
The initial language of this operator's manual is
English. Operator's manuals in other languages are
translations from English.

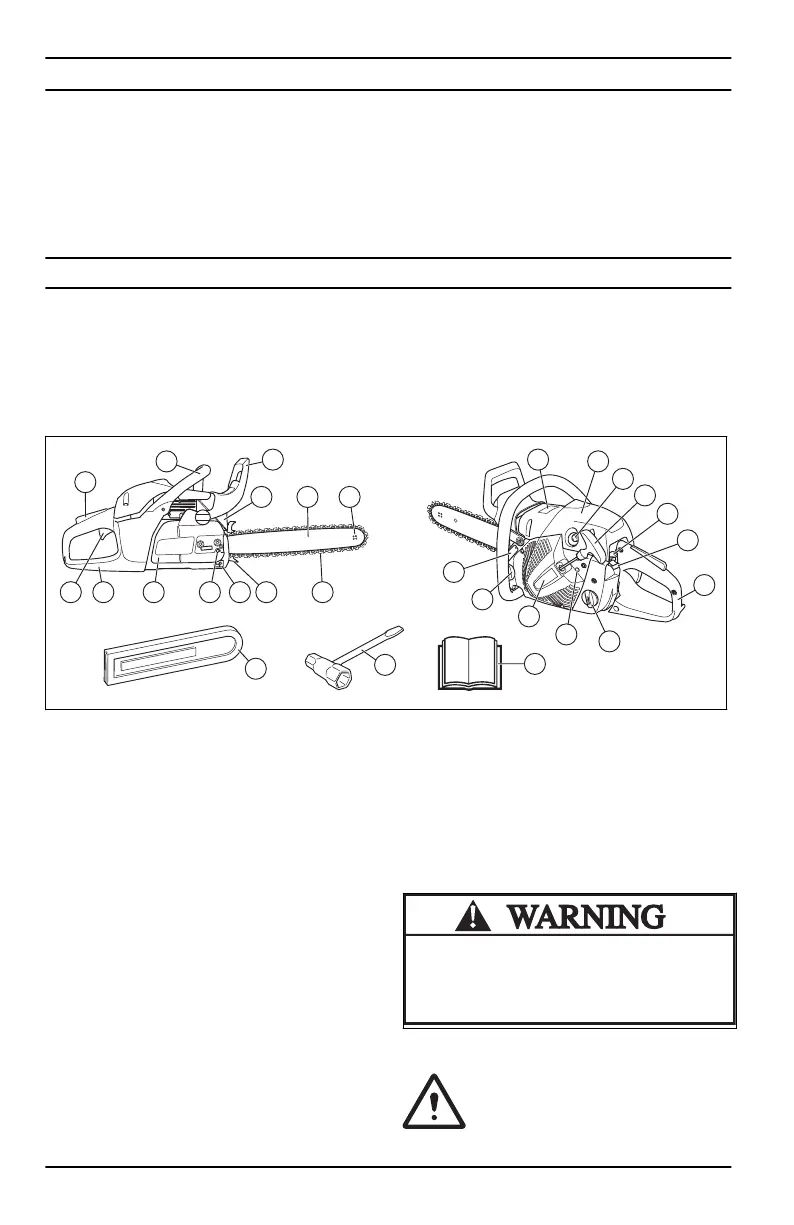

Overview
26
27
28
2
3
4
5
6
7
8
9
10
11
12
1
13
14
15
16 17 18
192021
24
25 2223
1. Information and warning decal
2. Cylinder cover
3. Primer bulb
4. Starter handle
5. Choke control
6. Stop switch
7. Rear handle
8. Fuel tank
9. Idle adjustment screw
10. Starter
11. Chain oil tank
12. Product and serial number plate
13. Trigger lockout
14. Front handle
15. Chain brake and front hand guard
16. Muffler
17. Guide bar
18. Bar nose sprocket
19. Saw chain
20. Spiked bumper
21. Chain catcher
22. Chain tensioning screw
23. Sprocket cover
24. Right hand guard
25. Trigger
26. Operator's manual
27. Combination tool
28. Guide-bar cover
Chemical warning
The engine exhaust from this product
contains chemicals known to the State
of California to cause cancer , birth
defects or other reproductive harm.
Symbols on the product
Warning
