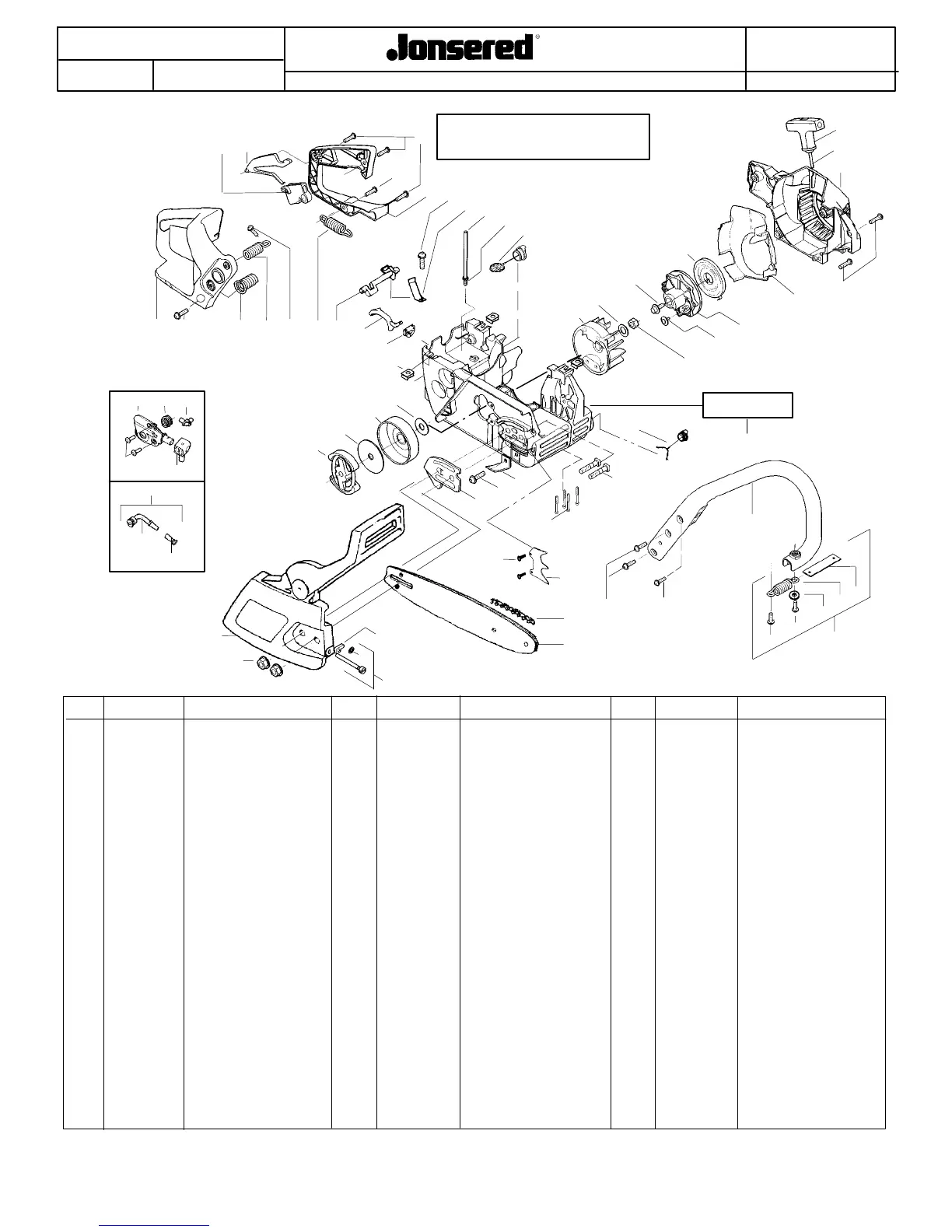

2
Note: Illustration may differ from actual model due to design changes
PARTS LIST NO.
PAGE NO.
CHAIN SAW MODEL(s)
530163405
CS2137
DATE
2/25/04
Replaces
PARTS LIST
163405 -- 12/15/03
Ref.
Part No.
Description Ref. Part No. Description
Ref. Part No.
Description
41
42
38
48
43
44
50
51
39
45
40
52
35
67
57
56
55
54
15
16
53
33
18
31
4
19
14
7
2
3
9
8
46
47
17
58
63
61
66
59
10
11
65
64
60
34
1
62
6
5
20
Kit--Oil Vent
22
21
30
23
29
26
28
27
25
32
36
49
37
1. 530047963 Assy.--Isolator
2. 530047608 Limiter Strap
3. 530042082 Spring--Isolator
4. 530015158 Washer
5. 530016018 Screw
6. 530015843 Screw
7. 530047583 Front Handle
8. 530015940 Screw
9. 530015814 Screw
1 0 . -- -- -- B a r
11. ------ Chain
12. 530014381 Kit--Spike (Incl. 13)
13. 530016439 Screw
14. 530016132 Screw
15. 530038238 Plate--Bar Mount.
16. 530015814 Screw
17. 530029850 Chain Catcher
18. 530016133 Bolt--Bar
19. 530010846 Assy--Oil Cap
20. 530071666 Kit--Oil Vent
21. 530016134 Nut--Flywheel
22. 530016080 Screw
23. 530037817 Starter Pulley
24. 530055723 Baf fle--Air
25. 530015892 Screw
26. 530057099 Housing--Fan
27. 530069232 Kit -- Rope
28. 530056402 Handle--Starter
29. 530027531 Spring--Recoil
30. 530015920 Screw
31. 530015127 Washer--Flywheel
32. 530039187 Assy--Flywheel
33. 530047192 Assy--Fuel Cap
34. 530023877 Fitting--fuel line
35. 530069216 Kit--Fuel line (large)
36. 530016149 Spring--Switch
37. 530015775 Screw
38. 530047581 Cover--Rear Handle
39. 530015886 Screw
40. 530015906 Screw
41. 530036098 Throttle Lockout
42. 530036097 Trigger--Throttle
43. 530047582 Handle -- Rear
44. 530015814 Screw
45. 530053274 Assy Isolator--lower
46. 530071385 Kit--Isolator (Upper)
47. 530015875 Screw
48. 530042082 Spring--Isolator
49. 530057473 Lever--Switch
50. 530057474 Lever--Choke
51. 530049005 Grommet--Knob
52. 530015922 Nut--”U”--T ype
53. 530058724 Kit--Chassis Assy.
fuel lines and caps )
54. 530015907 Washer--Thrust
55. 530047061 Assy.--Clutch Drum
w/bearing
56. 530015611 W asher--Clutch
57. 530014949 Assy. Clutch
58. 530071259 Kit -- Oil Pump
(incl. 59,60,62)
59. 530037820 Gear--Worm Spring
60. 530049477 Elbow--Oil Pickup
61. 530016064 Screw
62. 530019206 Seal Block
63. 530047663 Assy--Oil Pick--up
(Incl. 64,65)
64. 530038373 Pick--up Oiler
65. 530056533 Filter--Oil
66. 530054678 Assy.--Chain Brake
67. 530015917 Nut--Bar Mounting
68. 530015826 Pin--Bar Adjust
69. 530038593 Retainer
70. 530069611 Kit--Bar Adjusting
(incl. # 68,69)
Current Style
68
70
69
= NEW PART NUMBER FOR THIS IPLn
=
REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
K
n
n
n
n
n
24
13
12
K
K
K
K
n
To Next Page
