Jonsered CS2138 46cc User Manual

1

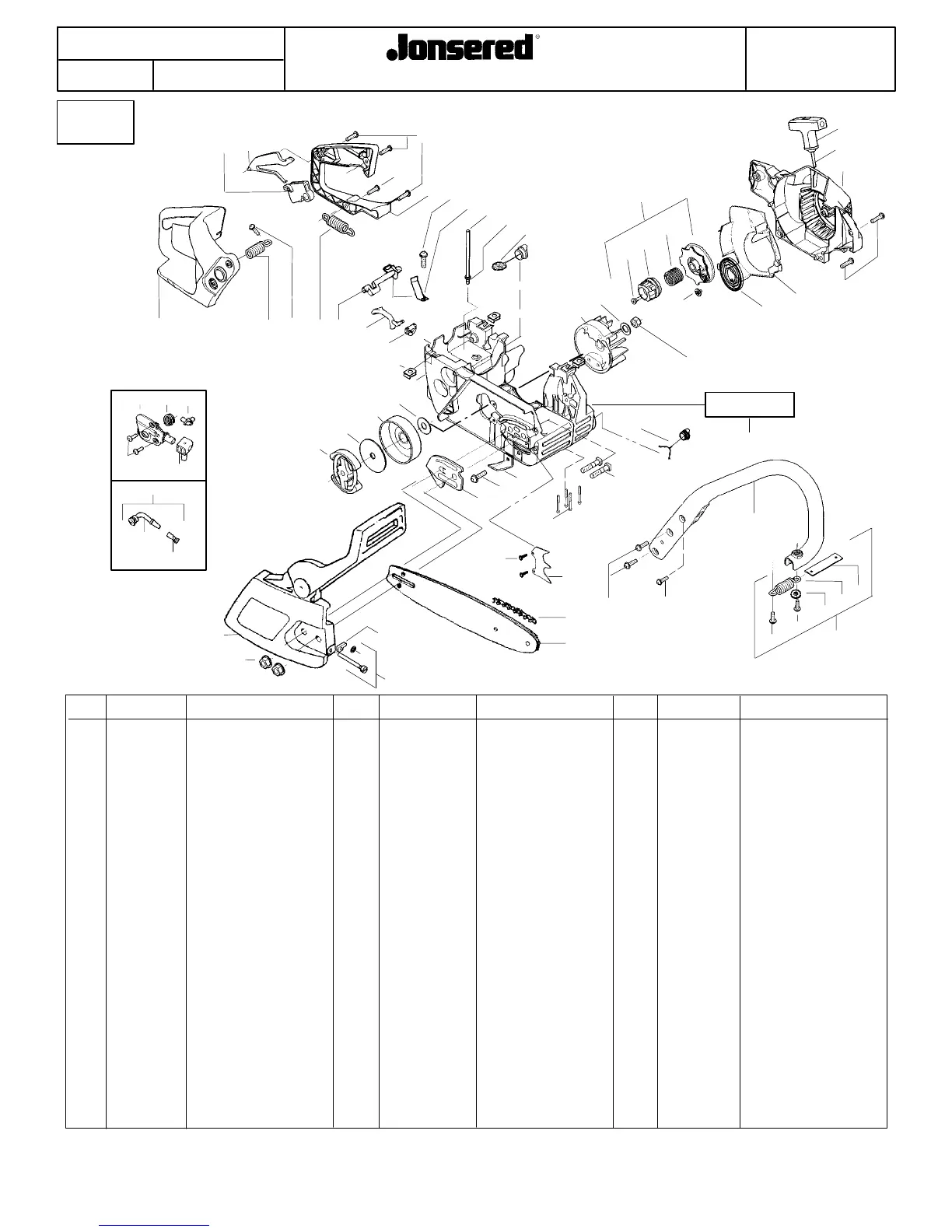

Note: Illustration may differ from actual model due to design changes
PARTS LIST NO.
PAGE NO.
CHAIN SAW MODEL(s)
530165401
CS2138 46cc
DATE
5/29/08
Replaces
PARTS LIST
Ref.
Part No.
Description Ref. Part No. Description
Ref. Part No.
Description
43
44
40
48
45
50
51
41
42
52
37
67
57
56
55
54
15
16
53
35
18
33
4
19
14
7
2
3
9
8
46
47
17
58
63
61
66
59
10
11
65
64
60
36
1
62
6
5
20
Kit--Oil Vent
22
21
32
29
30
26
28
27
25
34
38
49
39
1. 530059667 Assy.--Isolator
2. 530047608 Limiter Strap
3. 530059668 Spring--Isolator
4. 530015158 Washer
5. 530016018 Screw
6. 530015843 Screw
7. 545048001 Front Handle
8. 530015940 Screw
9. 530015814 Screw
10. ------ Bar
11. ------ Chain
12. 530014381 Kit--Spike (Incl. 13)
13. 530016439 Screw
14. 530016132 Screw
15. 530038238 Plate--Bar Mount.
16. 530015814 Screw
17. 530029850 Chain Catcher
18. 530016133 Bolt--Bar
19. 530057236 Assy--Oil Cap
20. 530071666 Kit--Oil Vent
21. 530016134 Nut--Flywheel
22. 530016080 Screw
23. 530027531 Spring--Starter
24. 530055723 Baffle--Air
25. 530015892 Screw
26. 545050908 Housing--Fan
27. 530069232 Kit -- Rope
28. 530056402 Handle--Starter
29. 530071966 Kit--EPS Starter
(Incl. 22,30,31,32)
30. 530021180 Spring--EPS
31. 530059677 Hub--EPS
32. 530021179 Screw
33. 530015127 Washer--Flywheel
34. 545016301 Assy--Flywheel
35. 530047192 Assy--Fuel Cap
36. 530023877 Fitting--fuel line
37. 530069216 Kit--Fuel line (large)
38. 530016149 Spring--Switch
39. 530015775 Screw
40. 530047581 Cover--Rear Handle
41. 530015886 Screw
42. 530015906 Screw
43. 530036098 Throttle Lockout
44. 530036097 Trigger--Throttle
45. 545025001 Handle -- Rear
46. 530071958 Kit--Isolator (Upper)
47. 530015875 Screw
48. 530059668 Spring--Isolator
49. 530057473 Lever--Switch
50. 530057474 Lever--Choke
51. 530049005 Grommet--Knob
52. 530015922 Nut--”U”--Type
53. 530058730 Assy--Chassis
fuel lines and caps )
54. 530015907 Washer--Thrust
55. 530047061 Assy.--Clutch Drum
w/bearing
56. 530015611 Washer--Clutch
57. 530014949 Assy. Clutch
58. 530071259 Kit -- Oil Pump
(incl. 59,60,62)
59. 530037820 Gear--Worm Spring
60. 530049477 Elbow--Oil Pickup
61. 530016064 Screw
62. 530019206 Seal Block
63. 530047663 Assy--Oil Pick--up
(Incl. 64,65)
64. 530038373 Pick --up Oiler
65. 530056533 Filter--Oil
66. 545139905 Assy.--Chain Brake
67. 530015917 Nut--Bar Mounting
68. 530015826 Pin--Bar Adjust
69. 530038593 Retainer
70. 530069611 Kit--Bar Adjusting
(incl. # 68,69)
68
70
69
24
13
12
31
23
46cc

Jonsered CS2138 46cc Specifications

General

Engine displacement	46 cc
Power output	2.2 kW
Bar length	13-16 inches
Weight	4.7 kg
Oil tank volume	0.2 l
Chain pitch	3/8 inch
Chain gauge	0.05 inch
Recommended bar length	35-40 cm (14-16 inches)
