ASSEMBLY
English – 13

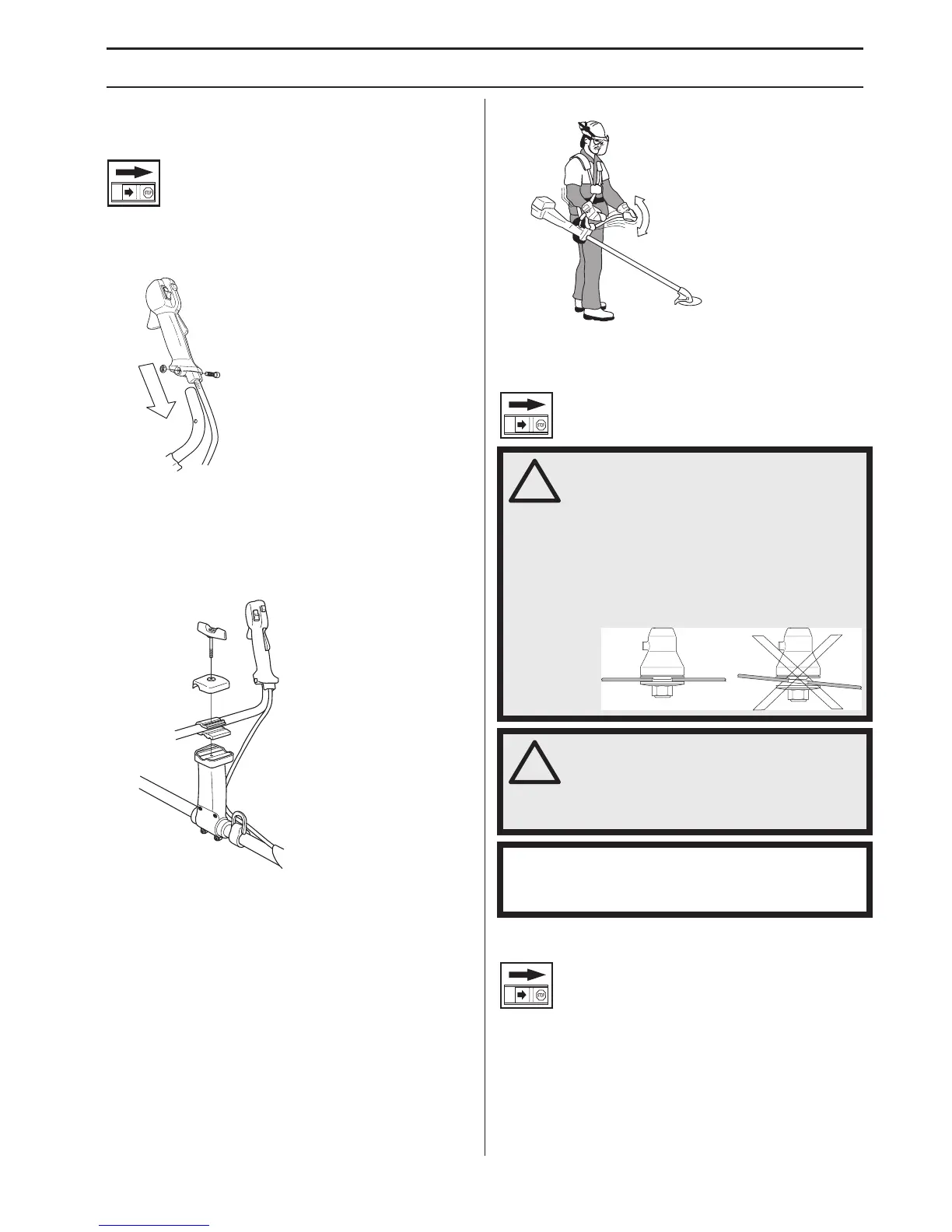

Assembling the handlebar and
throttle
• Remove the screw at the rear of the throttle handle.
• Slide the throttle handle onto the right side of the
handlebar, (see diagram).
• Align the screw hole in the throttle handle with the hole
in the handlebar.
• Refit the screw in the hole in the rear of the throttle
handle.
• Screw the screw through the handle and handlebar.
Tighten it.
• Fit the mounting components as shown.
• Put on the harness and hang the machine from the
support hook. Now make a final adjustment so that
the machine is in a comfortable working position when
it hangs from the harness.
• Tighten the knob.
Assembling the cutting
equipment
Fitting the guard extension
CAUTION! The guard extension shall always be fitted
when using the trimmer head/plastic blades and
combination guard. The guard extension shall always be
removed when using the grass blade and combination
guard.
WARNING!
When fitting the cutting attachment it is
extremely important that the raised
section on the drive disc/support flange
engages correctly in the centre hole of
the cutting attachment. If the cutting
attachment is fitted incorrectly it can
result in serious and/or fatal personal
injury.
WARNING! Never use a cutting
attachment without an approved guard.
See the chapter on Technical data. If an
incorrect or faulty guard is fitted this can
cause serious personal injury.
IMPORTANT! If a saw blade or grass blade are to be
used the machine must be equipped with the correct
handlebar, blade guard and harness.
