English – 13

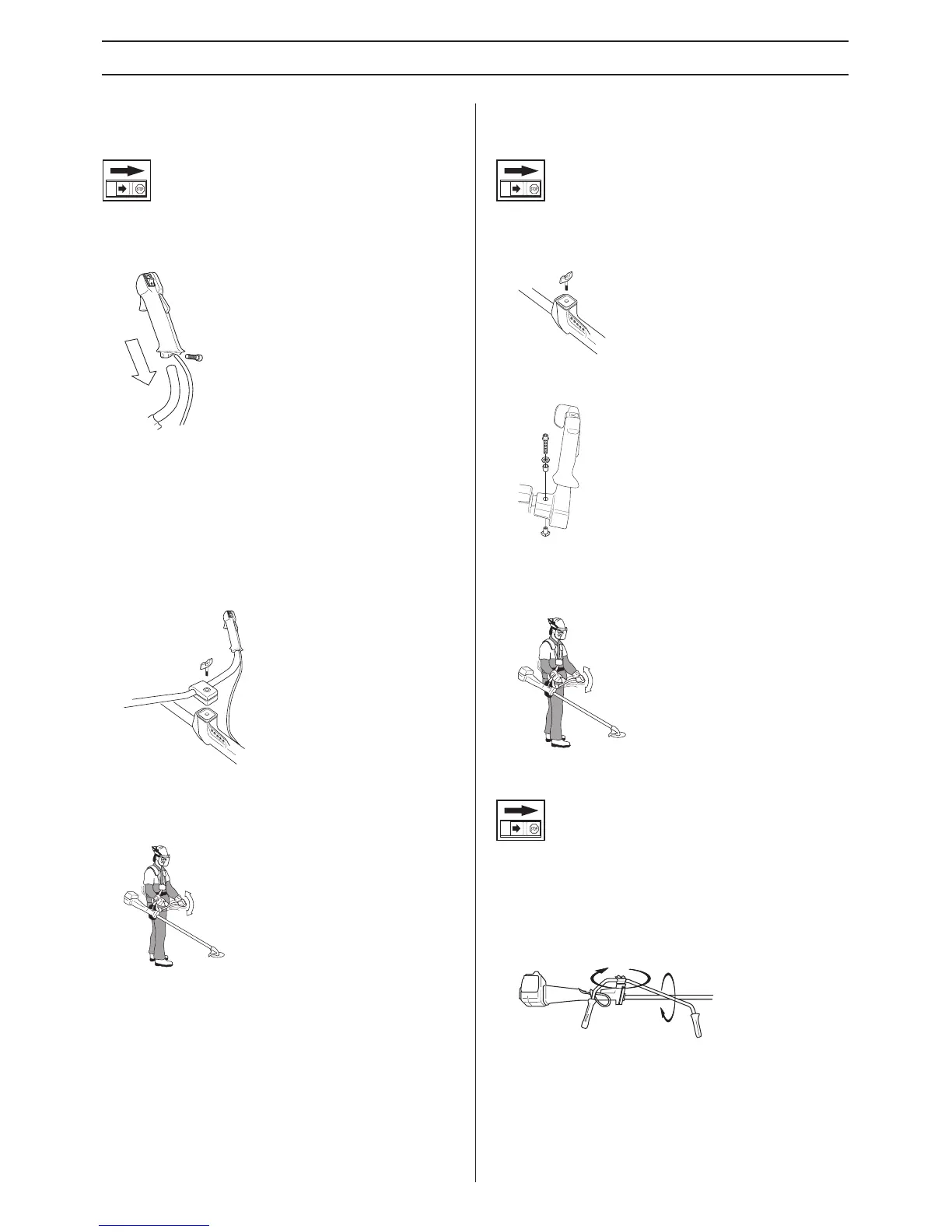

ASSEMBLY
Assembling the handlebar and
throttle (GR41/GR50)
• Remove the screw at the rear of the throttle handle.
• Slide the throttle handle onto the right side of the
handlebar, (see diagram).
• Align the screw hole in the throttle handle with the hole in
the handlebar.
• Refit the screw in the hole in the rear of the throttle handle.
• Screw the screw through the handle and handlebar.
Tighten it.
• Unscrew the knob from the handlebar mounting.
• Position the handlebar as shown. Fit the mounting
components and tighten the knob lightly.
• Put on the harness and hang the machine from the
support hook. Now make a final adjustment so that the
machine is in a comfortable working position when it
hangs from the harness.
• Tighten the knob.
Assembling the handlebar and
throttle (RS44/RS52)
• Unscrew the knob from the handlebar mounting.
• Position the handlebar as shown. Fit the mounting
components and tighten the knob lightly.
• Fit the right handle to the handlebar using the screw,
washer, sleeve and nut as shown. Tighten.
• Put on the harness and hang the machine from the
support hook. Now make a final adjustment so that the
machine is in a comfortable working position when it
hangs from the harness. Tighten the knob.
Transport position, handlebar
• The handlebar can easily be turned to fit along the shaft
for easier transportation and storage.
• Loosen the knob. Turn the handlebar clockwise so that the
throttle handle rests against the engine.
• Now twist the handlebar around the shaft. Tighten the
knob.
• Fit the transport guard to the cutting attachment.
