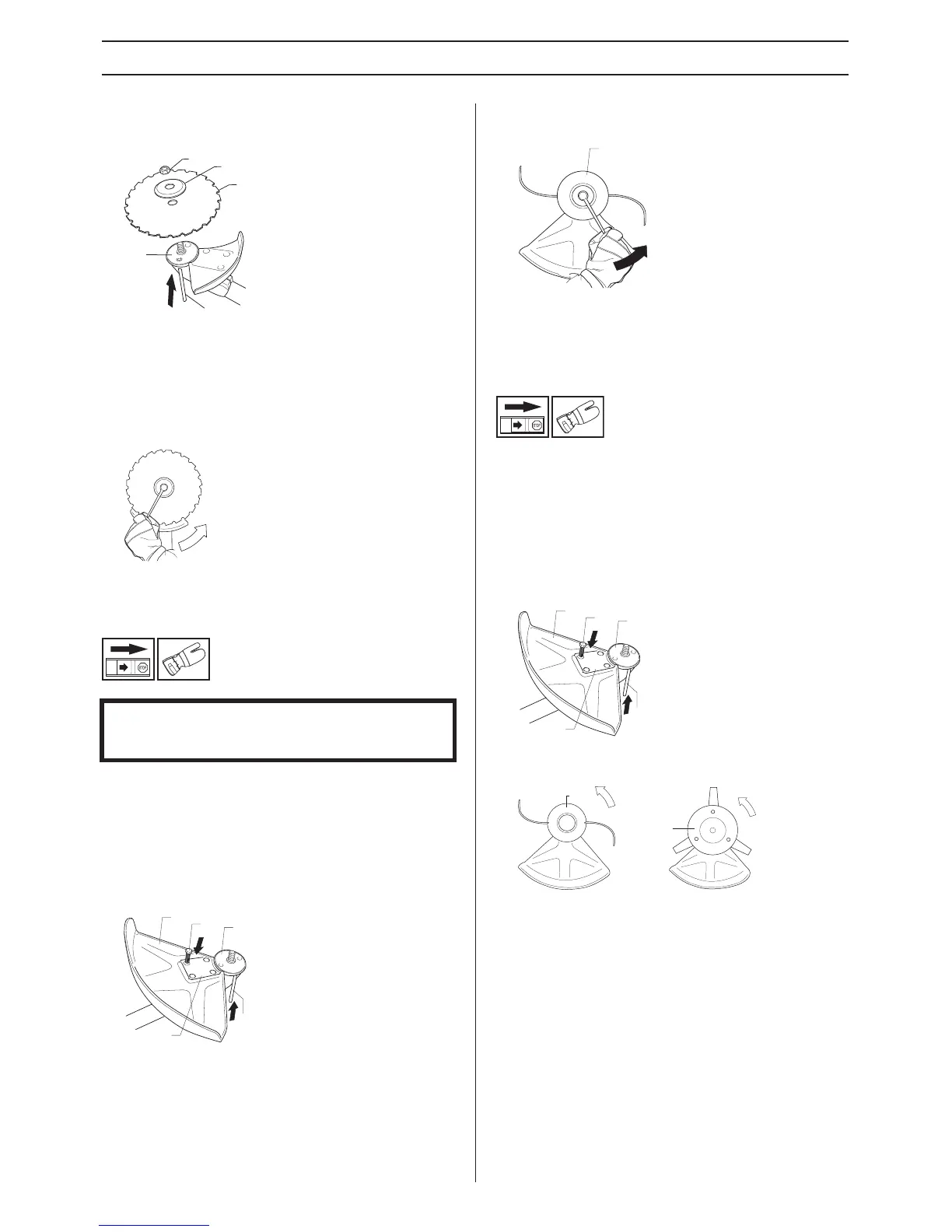

English – 15
ASSEMBLY
guard as possible. To tighten the nut, turn the spanner in
the opposite direction to the direction of rotation (Caution!
left-hand thread).
When loosening and tightening the saw blade nut, there is a
risk of injury from the teeth of the saw blade. You should
therefore always ensure that your hand is shielded by the
blade guard when doing this. Always use a socket spanner
with a shaft that is long enough to allow this. The arrow in the
diagram shows the area where you should operate the socket
spanner when loosening or tightening the nut.
Fitting the trimmer guard and
trimmer head Trimmy SII
Fit the correct trimmer guard (A) for use with the trimmer
head. Secure the trimmer guard using the 4 screws (L)
and the support plate (M) as shown.
Fit the drive disc (B) on the output shaft.
Turn the blade shaft until one of the holes in the drive disc
aligns with the corresponding hole in the gear housing.
Insert the locking pin (C) in the hole to lock the shaft.
Screw on the trimmer head (H) in the opposite direction to
the direction of rotation.
Tighten the trimmer head to a torque of 35-50 Nm (3.5-5
kpm).
To dismantle, follow the instructions in the reverse order.
Fitting other guards and cutting
attachments
Fit the trimmer guard/combination guard (A) intended for use
with the trimmer head/plastic blades. Secure the trimmer
guard using the 4 screws (L) and the support plate (M) as
shown.
Fit the drive disc (B) on the output shaft.
Turn the blade shaft until one of the holes in the drive disc
aligns with the corresponding hole in the gear housing.
Insert the locking pin (C) in the hole to lock the shaft.
Screw on the trimmer head/plastic blades (H) in the
opposite direction to the direction of rotation.
To dismantle, follow the instructions in the reverse order.
CAUTION! If the machine is to be used with a trimmer
head, the fast idle speed must be reduced by 400-500 rpm.
See instructions under the heading Carburettor.
G
F
D
B
C
B
A
L
M
C
H
B
A
L
M
C
H
H
